| Item | Part No. | Part Name | Qty | Serial No. |
| (561-88-70006) | AXLE ASS'Y | 8094- | ||
| (\2\561-88-70005) | AXLE ASS'Y | (8094-8097) | ||
| (561-88-70004) | AXLE ASS'Y | 8082-8093 | ||
| (\0\561-88-70003) | AXLE ASS'Y | 7479-8081 | ||
| (\0\561-88-70002) | AXLE ASS'Y,ABS/ASR | 7001-7478 | ||

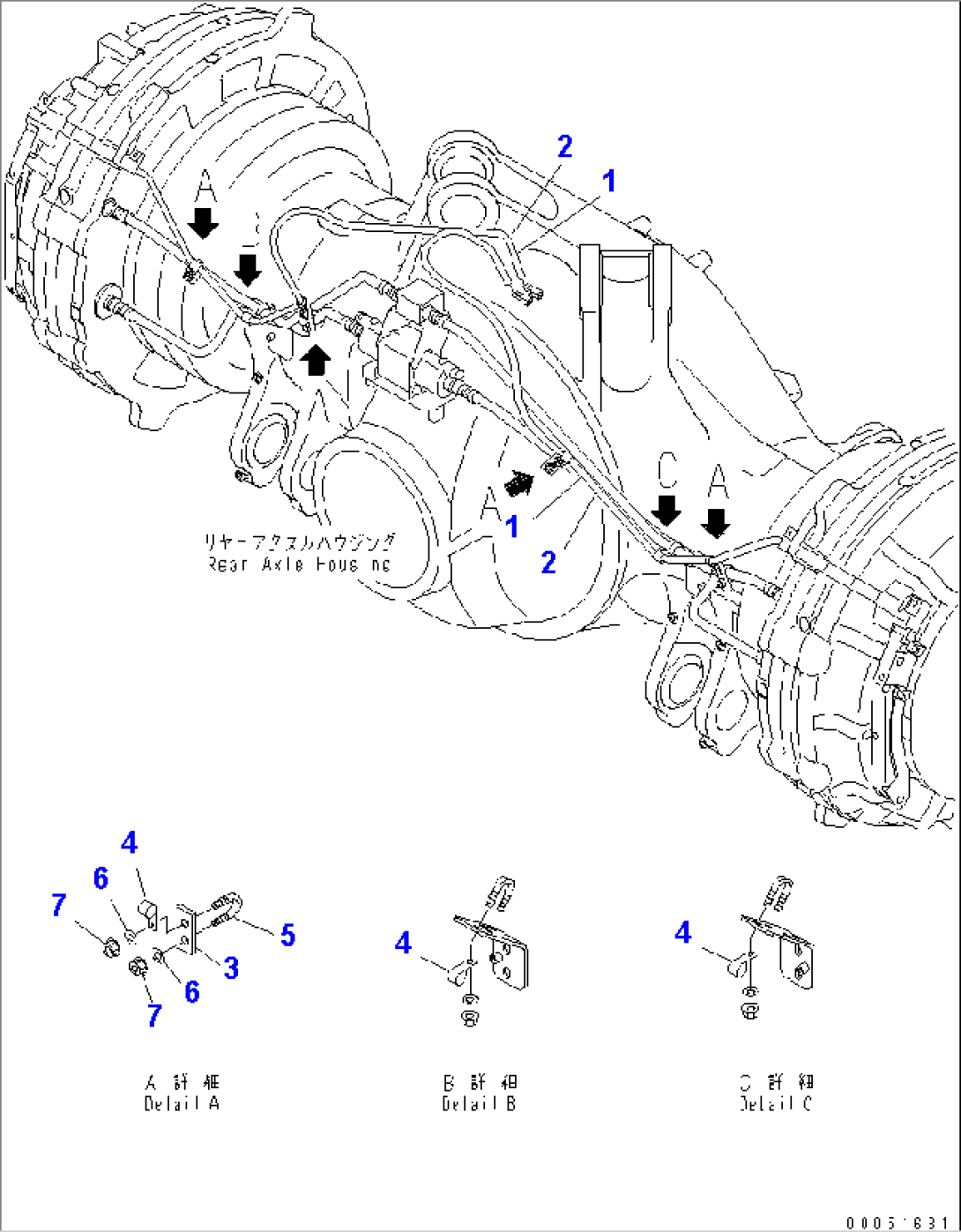

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F3500-01A0 TO F3500-19A1. | ||||
| 1 | 566-88-66141 | SENSOR | 7001-7140 | |
| 2 | 561-88-66152 | COLLAR | 7001-7140 | |
| 3 | 416-881-1140 | PLATE | 7001- | |
| 4 | 04434-51512 | CLIP | 7001- | |
| 5 | 07283-32236 | CLIP | 7001- | |
| 6 | 01643-31032 | WASHER | 7001- | |
| 7 | 01597-01009 | NUT | 7001- |
