| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-61-6F261 | TUBE | 7001- | |
| 2 | 566-61-6F481 | TUBE | 7001- | |
| 3 | 07040-11007 | PLUG | 7001- | |
| 4 | 07002-21023 | O-RING | 7001- | |
| 5 | 07371-31465 | FLANGE | 7001- | |
| 6 | 07372-21240 | BOLT | 7001- | |
| 7 | 01643-51232 | WASHER | 7001- | |
| 8 | 07000-F3048 | O-RING | 7001- |
- Главная
- Каталог запчастей
- Самосвалы
- Hd325 7 s/n 7001 7589 (ecot3)
- Torque converter and transmission
- Rear axle (brake cooling tube)(#7001 )
Поиск по каталогу

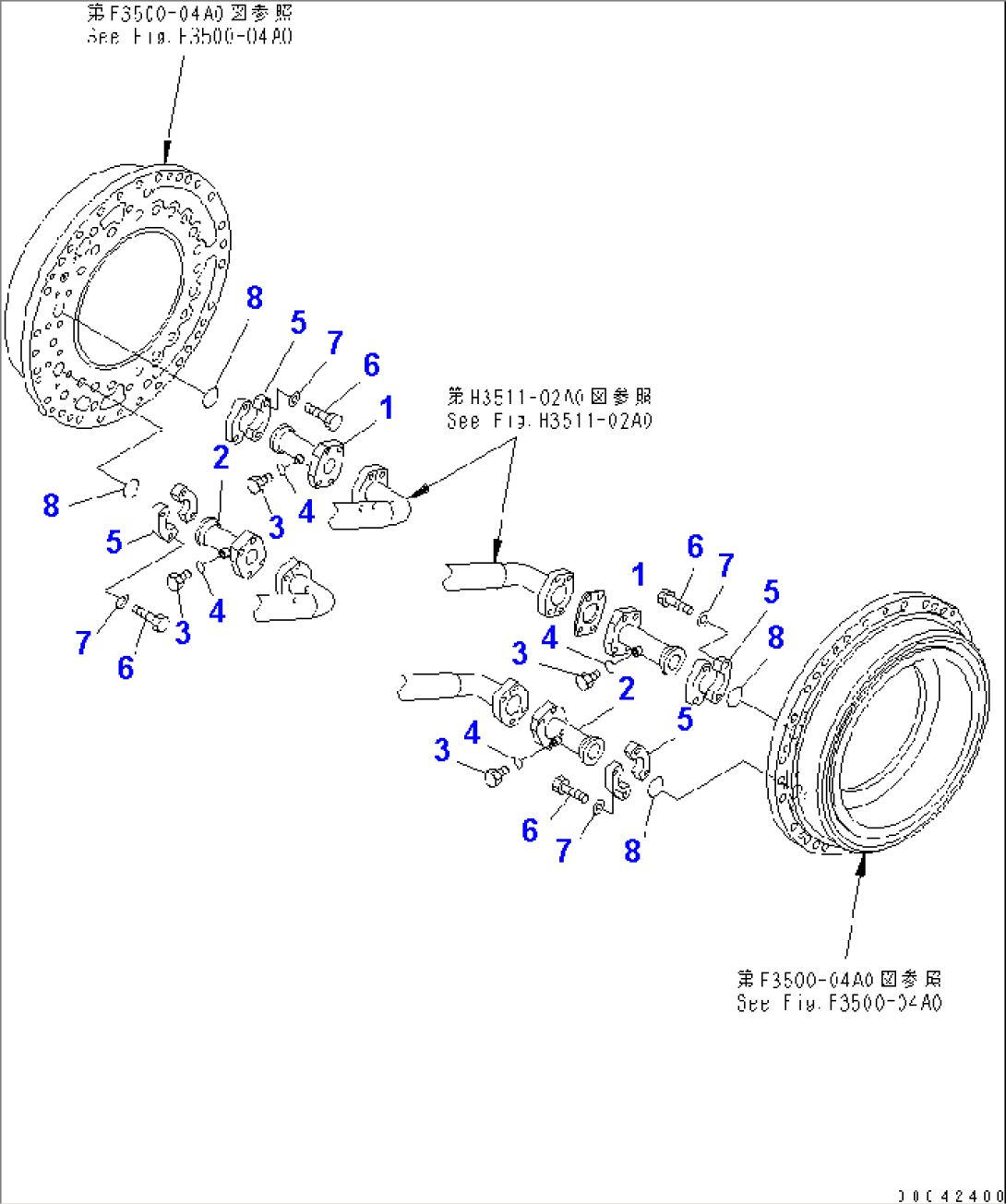

REAR AXLE (BRAKE COOLING TUBE)(#7001-)
