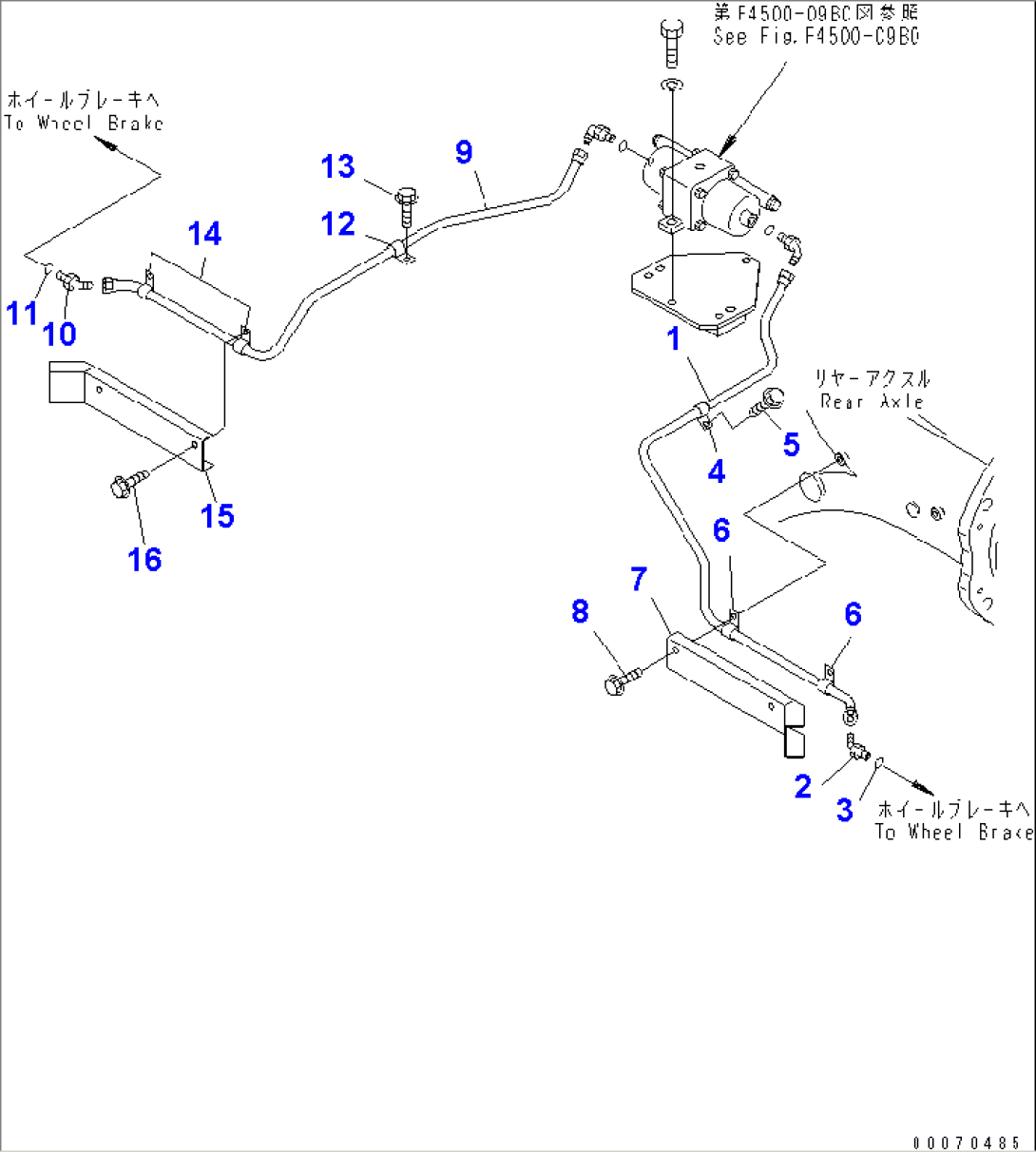

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 426-43-27653 | TUBE,L.H. | 52406- | |
| 2 | 07236-10315 | ELBOW | 52406- | |
| 3 | 07002-12034 | O-RING | 52406- | |
| 4 | 04434-51510 | CLIP | 52406- | |
| 5 | 01435-01016 | BOLT | 52406- | |
| 6 | 04434-51510 | CLIP | 52406- | |
| 7 | 426-43-27741 | COVER,L.H. | 52406- | |
| 8 | 01435-01040 | BOLT | 52406- | |
| 9 | 426-43-27662 | TUBE,R.H. | 52406- | |
| 10 | 07236-10315 | ELBOW | 52406- | |
| 11 | 07002-12034 | O-RING | 52406- | |
| 12 | 04434-51510 | CLIP | 52406- | |
| 13 | 01435-01016 | BOLT | 52406- | |
| 14 | 04434-51510 | CLIP | 52406- | |
| 15 | 426-43-27751 | COVER,R.H. | 52406- | |
| 16 | 01435-01040 | BOLT | 52406- |
