| Item | Part No. | Part Name | Qty | Serial No. |
| 56D-22-10002 | REAR AXLE ASS'Y | 1001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F3560-01A0 TO F3560-06A0. | ||||
| 56D-22-11001 | DIFFERENTIAL ASS'Y,REAR | 1001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F3560-01A0 TO F3560-03A0. | ||||

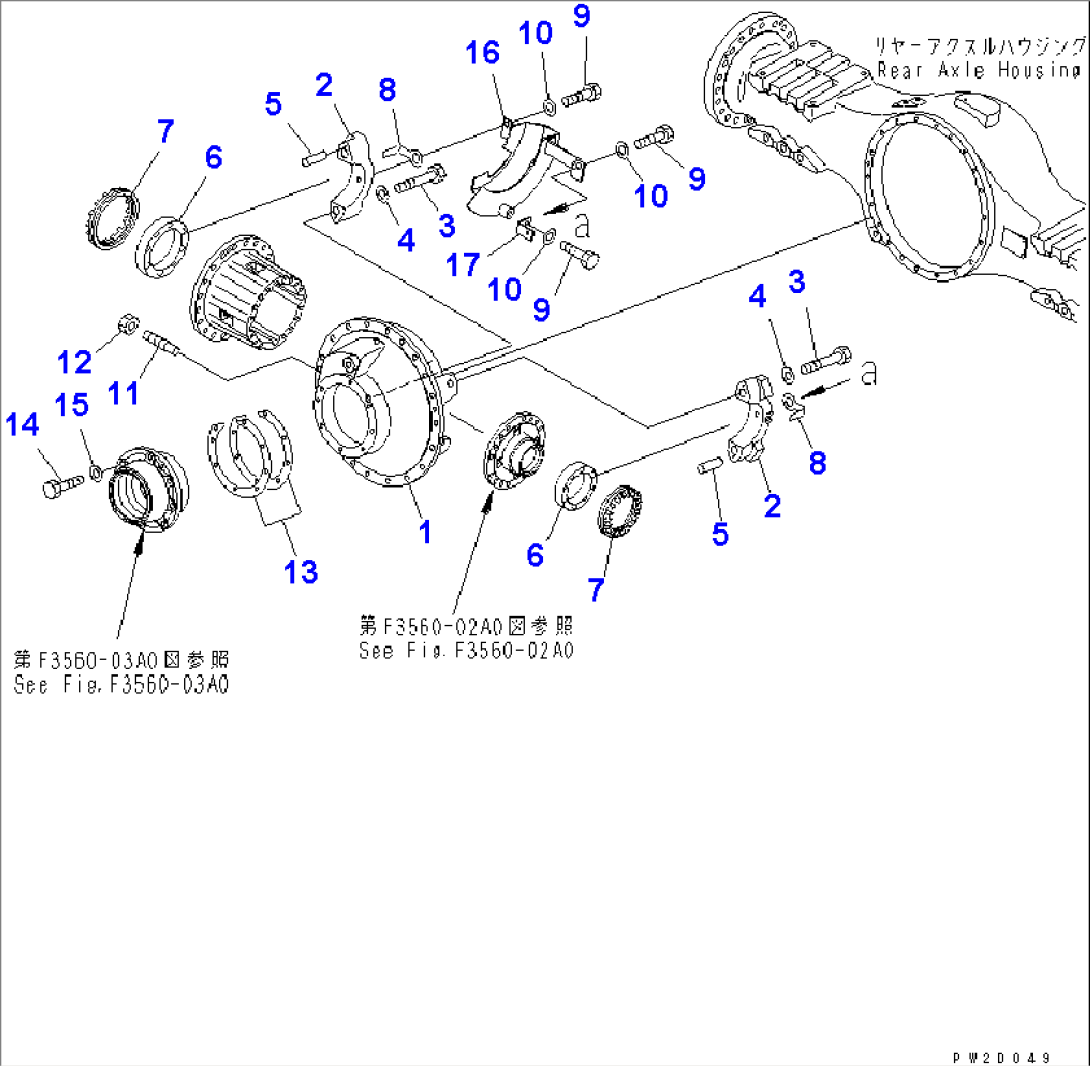

| 56D-22-11102 | CARRIER ASS'Y | 1001- | ||
| (\2\56D-22-11101) | CARRIER ASS'Y | (1001-1023) | ||
| 1 | \6\ | CARRIER | 1024- | |
| 1 | \6\ | CARRIER | 1001-1023 | |
| 2 | \6\ | CAP | 1001- | |
| 3 | \6\ | BOLT | 1001- | |
| 4 | \6\ | WASHER | 1001- | |
| 5 | \6\ | PIN,DOWEL | 1001- | |
| 6 | 567-22-71180 | BEARING | 1001- | |
| 7 | 567-22-71140 | NUT | 1001- | |
| 8 | 421-22-11150 | LOCK | 1001- | |
| 9 | 01010-61435 | BOLT | 1001- | |
| 10 | 01643-31445 | WASHER | 1001- | |
| 11 | 421-22-11180 | BOLT | 1001- | |
| 12 | 01583-12414 | NUT | 1001- | |
| 13 | 421-22-11372 | SHIM, 1.0MM | 1001- | |
| 13 | 421-22-11382 | SHIM, 0.3MM | 1001- | |
| 13 | 421-22-11392 | SHIM, 0.2MM | 1001- | |
| 13 | 56D-22-11340 | SHIM, 0.15MM | 1001- | |
| 14 | 01010-61450 | BOLT | 1001- | |
| 15 | 01643-31445 | WASHER | 1001- | |
| 16 | 56D-22-19610 | COVER | 1001- | |
| 17 | 56C-23-19620 | PLATE | 1001- |
