| Item | Part No. | Part Name | Qty | Serial No. |
| 56B-22-20005 | AXLE ASS'Y | 2629- | ||
| 56B-22-20004 | AXLE ASS'Y | 2462-2628 | ||
| \1\56B-22-20003 | AXLE ASS'Y | 2001-2461 | ||
| (\2\56B-22-20002) | AXLE ASS'Y | (2001-2430) | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F3560-01A0 TO F3560-12A0. | ||||
| 56B-22-11004 | DIFFERENTIAL AS | 2629- | ||
| 56B-22-11003 | DIFFERENTIAL AS | 2001-2628 | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F3560-01A0 TO F3560-03A0. | ||||

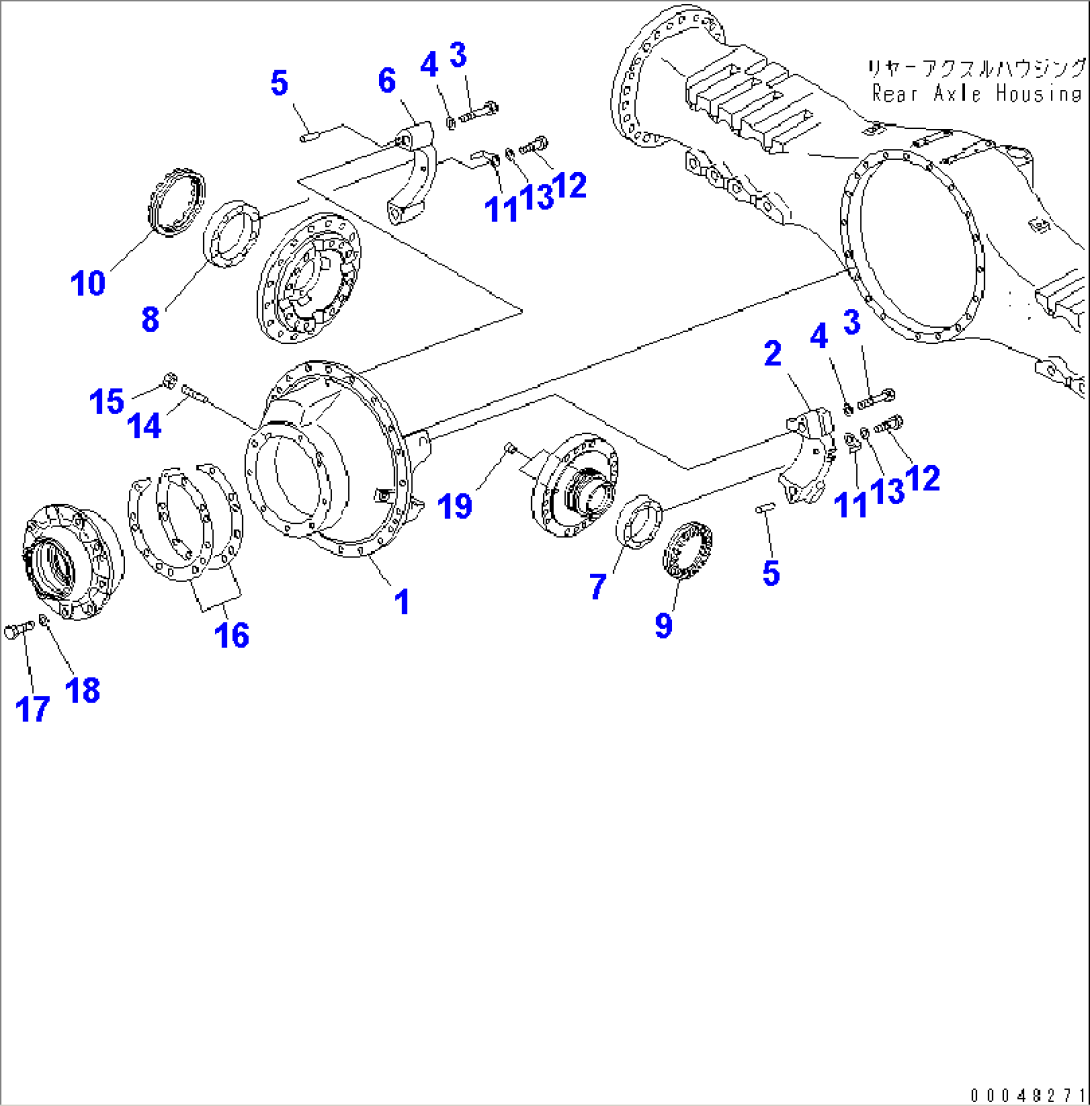

| 56B-22-11103 | CARRIER ASS'Y | 2001- | ||
| 1 | \6\ | CARRIER | 2001- | |
| 2 | \6\ | CAP | 2001- | |
| 3 | \6\ | BOLT | 2001- | |
| 4 | \6\ | WASHER | 2001- | |
| 5 | \6\ | PIN | 2001- | |
| 6 | \6\ | CAP | 2001- | |
| 7 | 567-22-71180 | BEARING | 2001- | |
| 8 | 56B-22-12860 | BEARING | 2001- | |
| 9 | 567-22-71140 | NUT | 2001- | |
| 10 | 56B-22-11141 | NUT | 2001- | |
| 11 | 421-22-11150 | LOCK | 2001- | |
| 12 | 01010-61430 | BOLT | 2001- | |
| 13 | 01643-31445 | WASHER | 2001- | |
| 14 | 421-22-11180 | BOLT | 2001- | |
| 15 | 01583-12414 | NUT | 2001- | |
| 16 | 56B-22-11360 | SHIM, 0.15MM | 2001- | |
| 16 | 56B-22-11370 | SHIM, 0.2MM | 2001- | |
| 16 | 56B-22-11380 | SHIM, 0.3MM | 2001- | |
| 16 | 56B-22-11390 | SHIM, 0.8MM | 2001- | |
| 17 | 01010-61650 | BOLT | 2001- | |
| 18 | 01643-31645 | WASHER | 2001- | |
| 19 | 56B-22-11570 | PLUG | 2001- |
