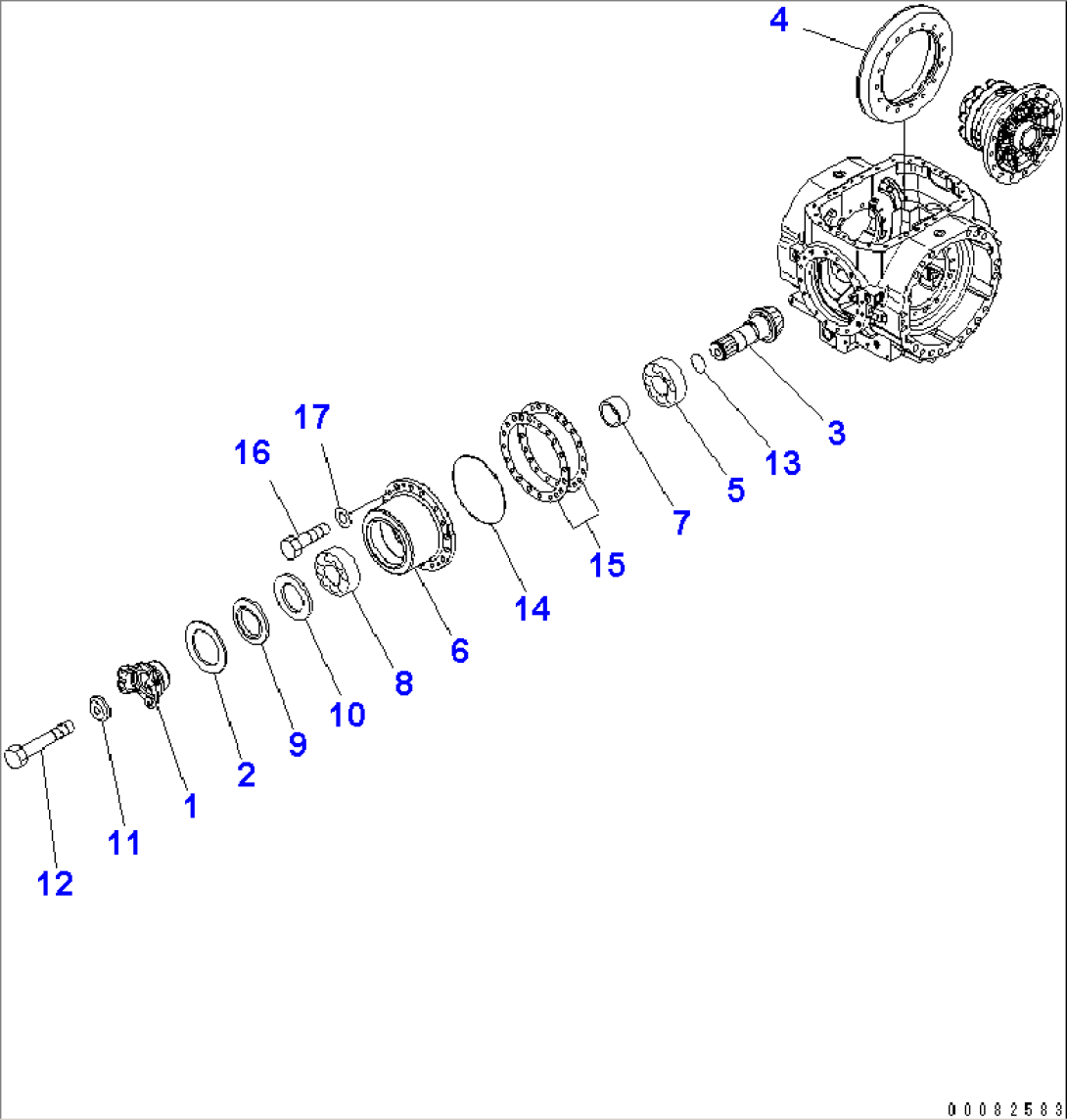

| Item | Part No. | Part Name | Qty | Serial No. |
| (421-23-30132) | AXLE ASS'Y,REAR | 90001- | ||
| (421-23-30182) | AXLE ASS'Y,REAR (LIMITED SLIP DEF.) | 90001- | ||
| THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4500-51B0 TO F4500-57B0. | ||||
| 421-23-31043 | DIFFERENTIAL ASS'Y | 90001- | ||
| (\2\421-23-31042) | DIFFERENTIAL ASS'Y | (90001-90215) | ||
| 421-23-31031 | DIFFERENTIAL ASS'Y,(LIMITED SLIP DEF.) | 90001- | ||
| (\2\421-23-31030) | DIFFERENTIAL ASS'Y,(LIMITED SLIP DEF.) | (90001-90215) | ||
| THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4500-53B0A TO F4500-55B0A | ||||
| 1 | 421-22-31231 | COUPLING | 85001- | |
| 2 | 421-22-31310 | PROTECTOR | 85001- | |
| 23C-22-51301 | PINION AND GEAR A. | 90001- | ||
| 3 | \6\ | PINION | 90001- | |
| 4 | \6\ | GEAR | 90001- | |
| 5 | 421-22-31810 | BEARING | 85001- | |
| 6 | 421-23-31120 | CAGE | 90001- | |
| 7 | 421-22-31860 | SPACER | 85001- | |
| 8 | 421-22-31820 | BEARING | 85001- | |
| 9 | 421-22-31761 | SEAL,DUST | 85001- | |
| 10 | 421-22-31771 | SEAL | 85001- | |
| 11 | 425-22-11240 | HOLDER | 85001- | |
| 12 | 01011-62420 | BOLT | 85001- | |
| 13 | 07000-15060 | O-RING | 85001- | |
| 14 | 07000-15240 | O-RING | 85001- | |
| 15 | 421-22-31261 | SHIM, 0.05MM | 85001- | |
| 15 | 421-22-31271 | SHIM, 0.2MM | 85001- | |
| 15 | 421-22-31281 | SHIM, 0.3MM | 85001- | |
| 15 | 421-22-31291 | SHIM, 0.8MM | 85001- | |
| 16 | 01010-61650 | BOLT | 85001- | |
| 17 | 01643-31645 | WASHER | 85001- |
