| Item | Part No. | Part Name | Qty | Serial No. |

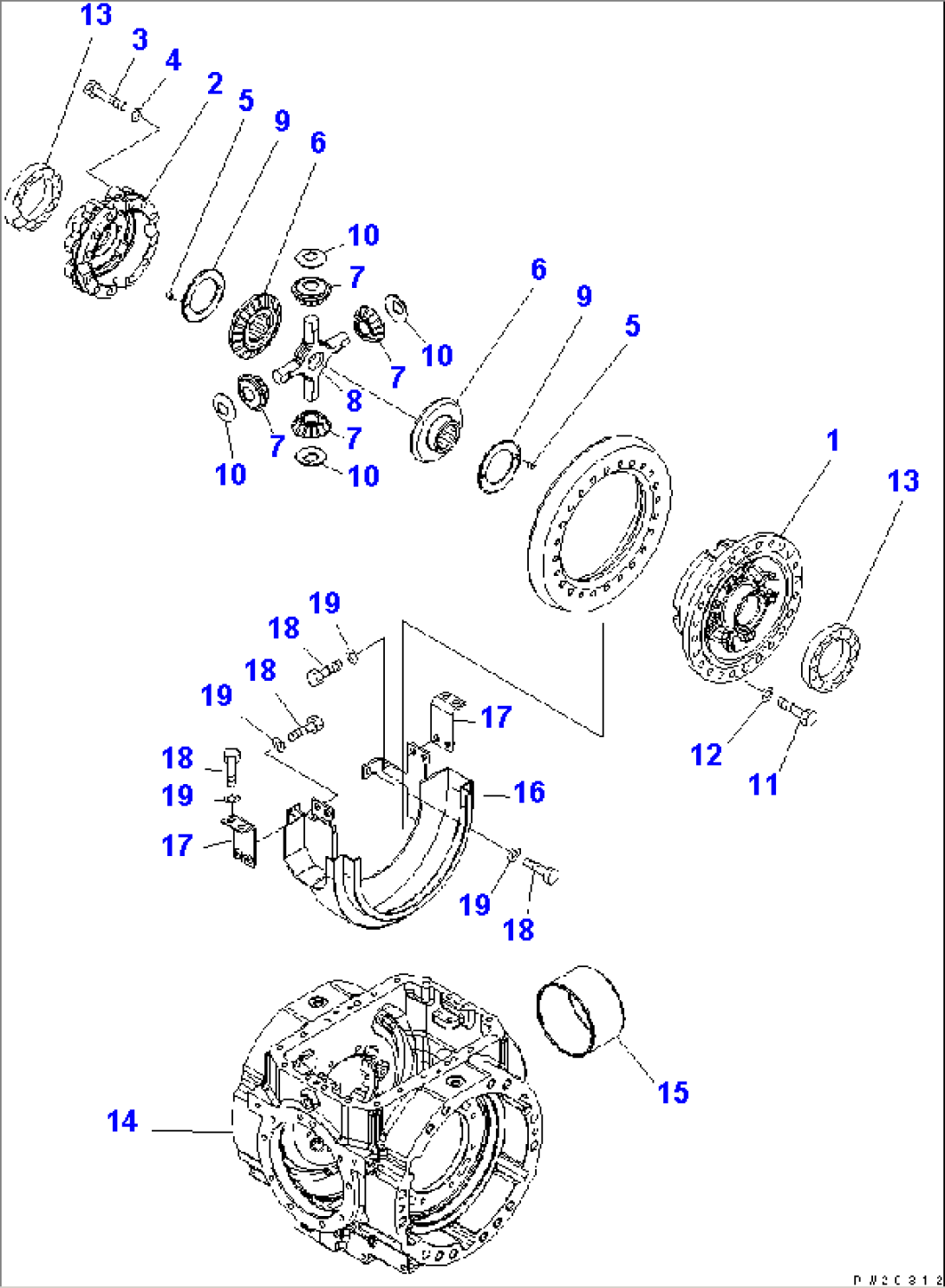

| (423-23-30001) | AXLE ASS'Y,REAR | 60001-62345 | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F4500-51A0 TO F4500-56A0. | ||||
| 423-22-31503 | CASE ASS'Y | .-@ | ||
| 423-22-31502 | CASE ASS'Y | 60001-. | ||
| 1 | 423-22-31513 | CASE,FLANGE | .-@ | |
| 1 | 423-22-31512 | CASE,FLANGE | 60001-. | |
| 2 | 423-22-31521 | CASE,PLANE | 60001-@ | |
| 3 | 01010-61485 | BOLT | 60001-@ | |
| 4 | 01643-31445 | WASHER | 60001-@ | |
| 5 | 175-21-12180 | PIN | 60001-@ | |
| 6 | 423-22-31480 | GEAR | 62005-@ | |
| 6 | \1\423-22-31460 | GEAR | 60001-62004 | |
| 7 | 423-22-31470 | GEAR | 62005-62345 | |
| 7 | \1\423-22-27310 | GEAR | 60001-62004 | |
| 8 | 423-22-31411 | SHAFT | 60001-@ | |
| 9 | 421-22-11681 | WASHER | 60001-@ | |
| 10 | 423-22-31690 | WASHER | 60001-62345 | |
| 11 | 01010-61440 | BOLT | 60001-@ | |
| 12 | 01643-31445 | WASHER | 60001-@ | |
| 13 | 423-22-11850 | BEARING | 60001-@ | |
| 14 | 423-23-33152 | HOUSING | 60461-@ | |
| 14 | 423-23-33151 | HOUSING | .-60460 | |
| 14 | 423-23-33150 | HOUSING | 60001-. | |
| 15 | 423-23-23170 | SLEEVE | 60001-@ | |
| 16 | 423-22-31731 | COVER,GEAR | 60282-@ | |
| 16 | 423-22-31710 | COVER,GEAR | 60001-60281 | |
| 17 | 423-22-31720 | BRACKET | 60001-@ | |
| 18 | 01010-61230 | BOLT | 60001-@ | |
| 19 | 01643-51232 | WASHER | 60001-@ |
