| Item | Part No. | Part Name | Qty | Serial No. |
| (421-23-30132) | AXLE ASS'Y | 90001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F4500-51B0 TO F4500-57B0. | ||||
| 421-23-31043 | DIFFERENTIAL ASS'Y | 90001- | ||
| (\2\421-23-31042) | DIFFERENTIAL ASS'Y | (90001-90215) | ||

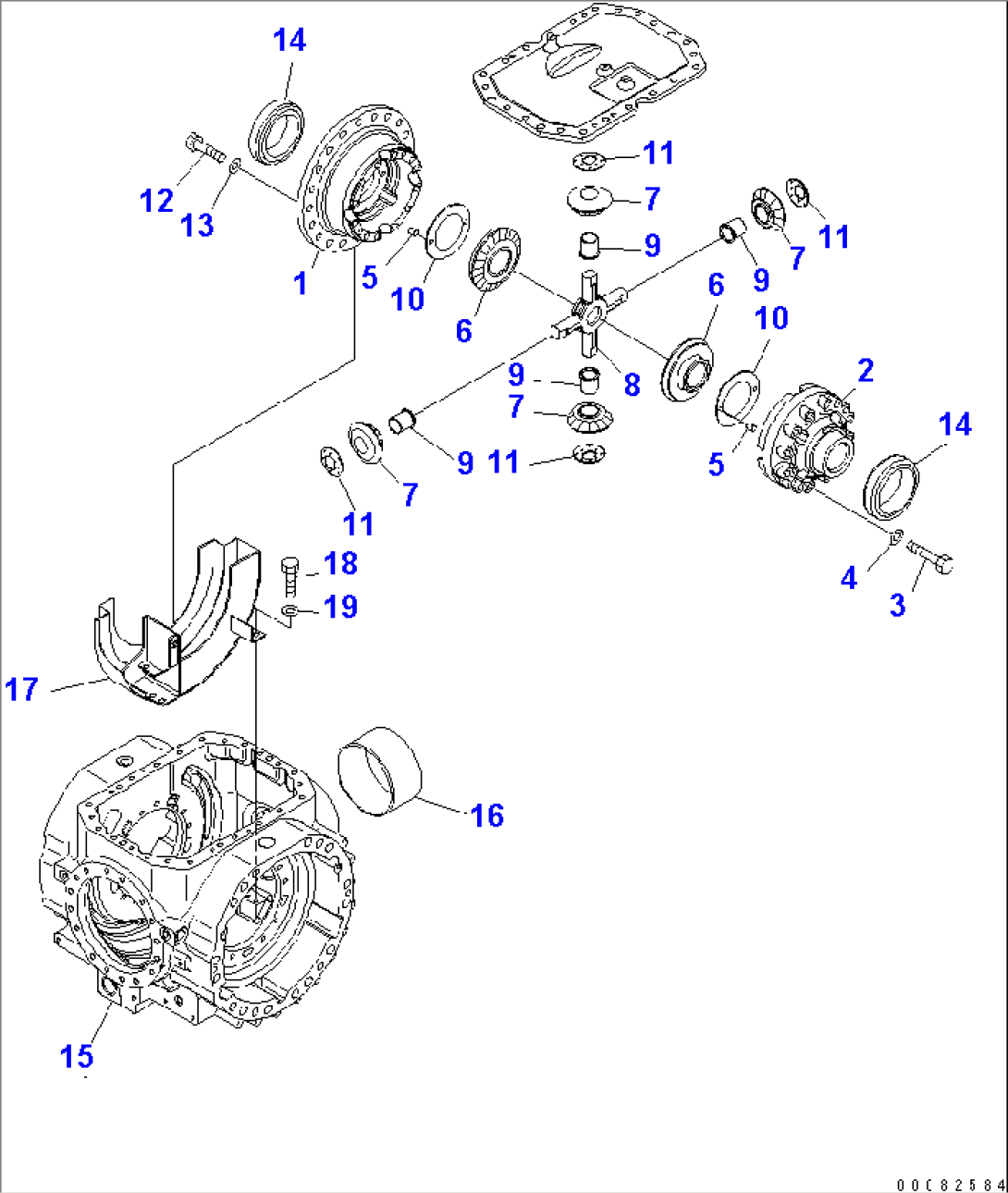

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F4500-53B0A TO F4500-55B0A | ||||
| 421-22-31600 | CASE ASS'Y | 90001- | ||
| 1 | 421-22-31610 | CASE,FLANGE | 90001- | |
| 2 | 421-22-31620 | CASE,PLANE | 90001- | |
| 3 | 01011-61425 | BOLT | 90001- | |
| 4 | 01643-31445 | WASHER | 90001- | |
| 5 | 175-21-12180 | PIN | 85001- | |
| 6 | 421-22-31530 | GEAR | 90001- | |
| 7 | 421-22-31540 | PINION | 90001- | |
| 8 | 421-22-31410 | SHAFT | 90001- | |
| 9 | 56B-22-17170 | BUSHING | 90001- | |
| 10 | 56B-22-11460 | WASHER | 90001- | |
| 11 | 56B-22-11580 | WASHER | 90001- | |
| 12 | 01010-61645 | BOLT | 90001- | |
| 13 | 01643-31645 | WASHER | 90001- | |
| 14 | 421-22-11860 | BEARING | 90001- | |
| 15 | 421-23-33821 | HOUSING | 90001- | |
| 16 | 421-23-33170 | SLEEVE,GEAR | 90001- | |
| 17 | 421-22-31832 | COVER | 90001- | |
| 18 | 01010-61225 | BOLT | 90001- | |
| 19 | 01643-31232 | WASHER | 90001- |
