| Item | Part No. | Part Name | Qty | Serial No. |

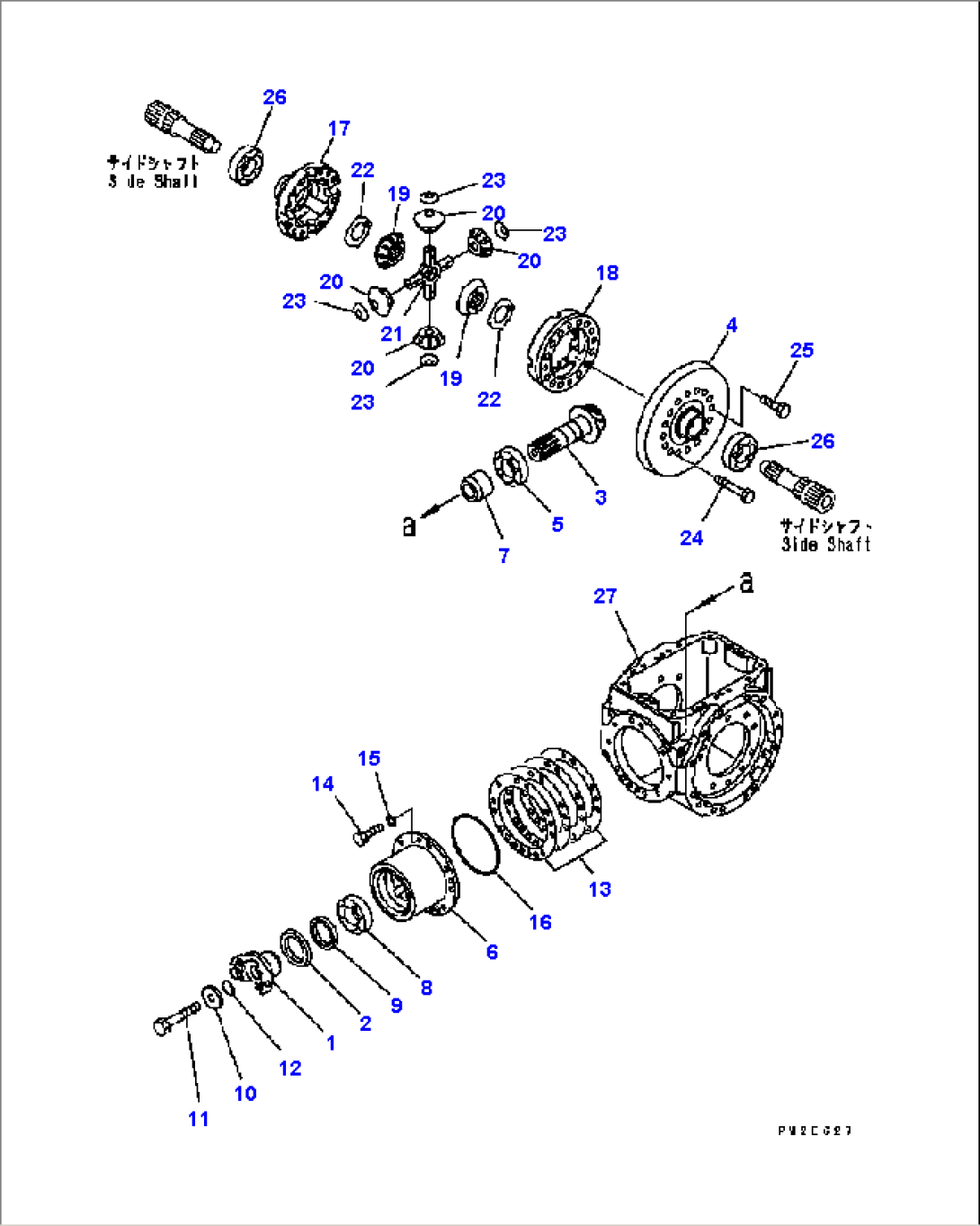

| (418-23-30001) | AXLE ASS'Y {REAR} | B10001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGSF4500-51A0 TO F4500-54A0 | ||||
| 1 | 418-23-31231 | COUPLING | B10001- | |
| 2 | 418-22-21310 | PROTECTOR | B10001- | |
| 418-23-31201 | PINION ASS'Y | B10001- | ||
| 3 | 418-23-31211 | PINION | B10001- | |
| 4 | 418-23-31220 | GEAR {BEVEL} | B10001- | |
| 5 | 418-22-11810 | BEARING | B10001- | |
| 6 | 418-23-31131 | CAGE | B10001- | |
| 7 | 418-22-31861 | SPACER | B10001- | |
| 8 | 419-22-11820 | BEARING | B10001- | |
| 9 | 418-22-21330 | SEAL {OIL} | B10001- | |
| 10 | 417-15-13770 | HOLDER | B10001- | |
| 11 | 01011-61615 | BOLT | B10001- | |
| 12 | 07000-13042 | O-RING | B10001- | |
| 13 | 417-22-11361 | SHIM¤ 0.05MM | B10001- | |
| 417-22-11371 | SHIM¤ 0.2MM | B10001- | ||
| 417-22-11381 | SHIM¤ 0.3MM | B10001- | ||
| 417-22-11391 | SHIM¤ 08MM | B10001- | ||
| 14 | 01010-61235 | BOLT | B10001- | |
| 15 | 01643-31232 | WASHER | B10001- | |
| 16 | 07000-15160 | O-RING | B10001- | |
| 418-23-31501 | CASE ASS'Y | B10001- | ||
| 17 | 418-23-31511 | CASE | B10001- | |
| 18 | 418-23-31521 | CASE | B10001- | |
| 19 | 417-22-11432 | GEAR | B10001- | |
| 20 | 417-22-11420 | PINION | B10001- | |
| 21 | 418-23-31410 | SPIDER | B10001- | |
| 22 | 418-23-31460 | WASHER | B10001- | |
| 23 | 418-23-31550 | WASHER | B10001- | |
| 24 | 01010-61695 | BOLT | B10001- | |
| 25 | 01010-61645 | BOLT | B10001- | |
| 26 | 417-22-12840 | BEARING | B10001- | |
| 27 | 418-23-33111 | HOUSING | B10001- |
