| Item | Part No. | Part Name | Qty | Serial No. |
| (561-22-70007) | AXLE ASS'Y | 8094- | ||
| (\2\561-22-70006) | AXLE ASS'Y | (8094-8097) | ||
| (561-22-70005) | AXLE ASS'Y | 8082-8093 | ||
| (\0\561-22-70004) | AXLE ASS'Y | 7479-8081 | ||
| (\0\561-22-70003) | AXLE ASS'Y | 7001-7478 | ||
| (561-88-70006) | AXLE ASS'Y | 8094- | ||
| (\2\561-88-70005) | AXLE ASS'Y | (8094-8097) | ||
| (561-88-70004) | AXLE ASS'Y | 8082-8093 | ||
| (\0\561-88-70003) | AXLE ASS'Y | 7479-8081 | ||
| (\0\561-88-70002) | AXLE ASS'Y,ABS/ASR | 7001-7478 | ||
| (561-22-70903) | AXLE ASS'Y | 8094- | ||
| (561-22-70902) | AXLE ASS'Y | 8082-8093 | ||
| (\0\561-22-70901) | AXLE ASS'Y | 7479-8081 | ||
| (\0\561-22-70900) | AXLE ASS'Y | 7055-7478 | ||

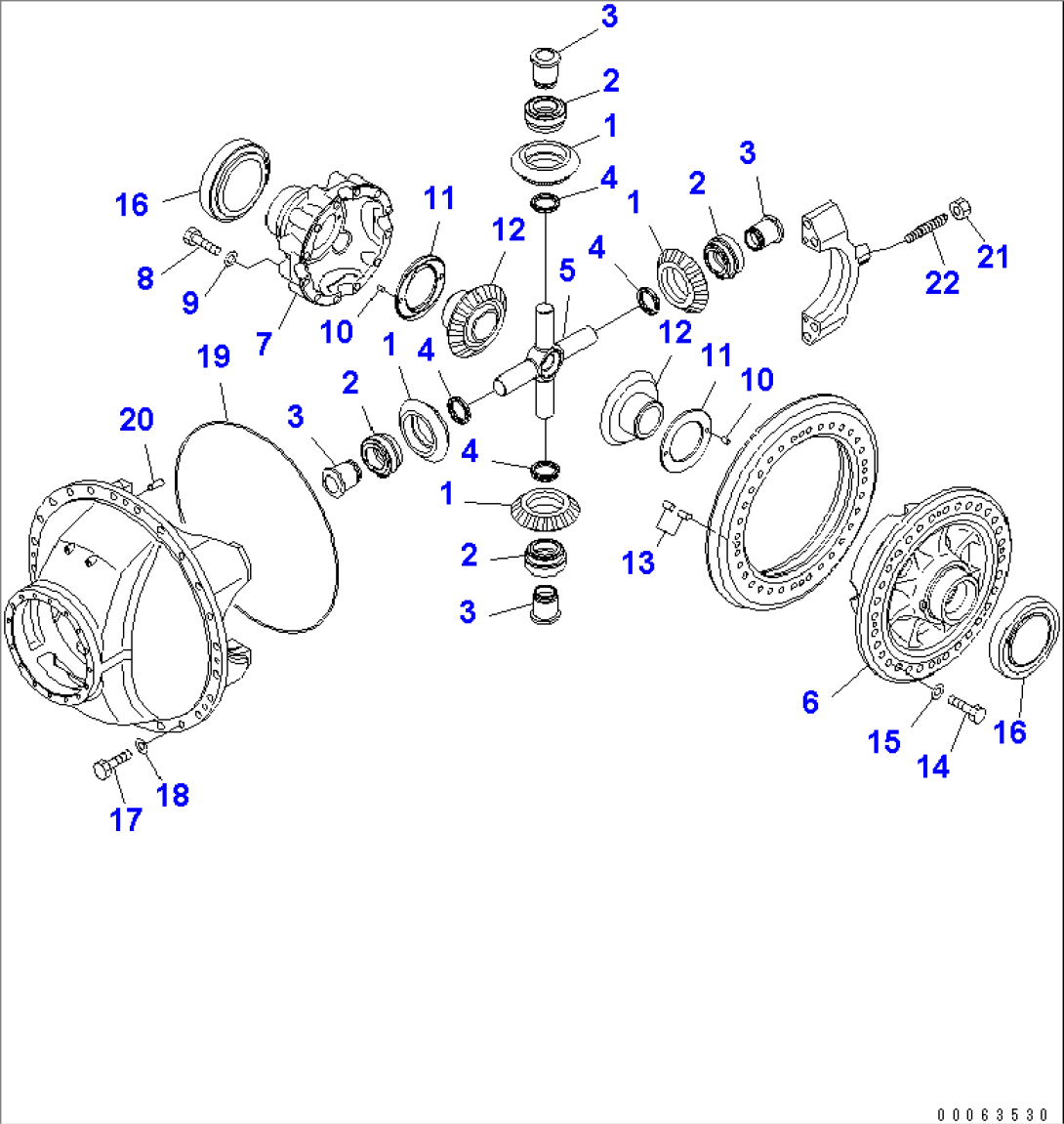

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F3500-01A0 TO F3500-19A0. | ||||
| (561-22-71003) | DIFFERENTIAL ASS'Y | 7479- | ||
| (\0\561-22-71002) | DIFFERENTIAL ASS'Y | 7001-7478 | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F3500-01A0 TO F3500-03A0. | ||||
| 561-88-48340 | PINION ASS'Y | .- | ||
| 561-22-71340 | PINION ASS'Y | 7001-. | ||
| 1 | 561-88-48350 | PINION | 7001- | |
| 2 | 561-88-68850 | BEARING | 7001- | |
| 3 | 561-88-68440 | SLEEVE | .- | |
| 3 | \1\561-22-71440 | SLEEVE | 7001-. | |
| 4 | 561-88-68990 | NUT | 7001- | |
| 5 | 561-22-61410 | SHAFT | 7001- | |
| 561-22-71502 | CASE ASS'Y | 7001- | ||
| 6 | \6\ | CASE | 7001- | |
| 7 | \6\ | CASE | 7001- | |
| 8 | 01011-62455 | BOLT | 7001- | |
| 9 | 581-22-14680 | WASHER | 7001- | |
| 10 | 561-22-61990 | PIN | 7001- | |
| 11 | 561-22-61530 | WASHER | 7001- | |
| 12 | 561-22-61431 | GEAR | 7001- | |
| 13 | 04020-01842 | PIN | 7001- | |
| 14 | 01010-62475 | BOLT | 7001- | |
| 15 | 01643-32460 | WASHER | 7001- | |
| 16 | 561-22-61960 | BEARING | 7001- | |
| 17 | 01010-62465 | BOLT | 7001- | |
| 18 | 01643-32460 | WASHER | 7001- | |
| 19 | 581-22-11750 | O-RING | 7001- | |
| 20 | 04020-01842 | PIN | 7001- | |
| 21 | 01582-03024 | NUT | 7001- | |
| 22 | 561-22-73510 | SCREW | 7001- |
