| Item | Part No. | Part Name | Qty | Serial No. |

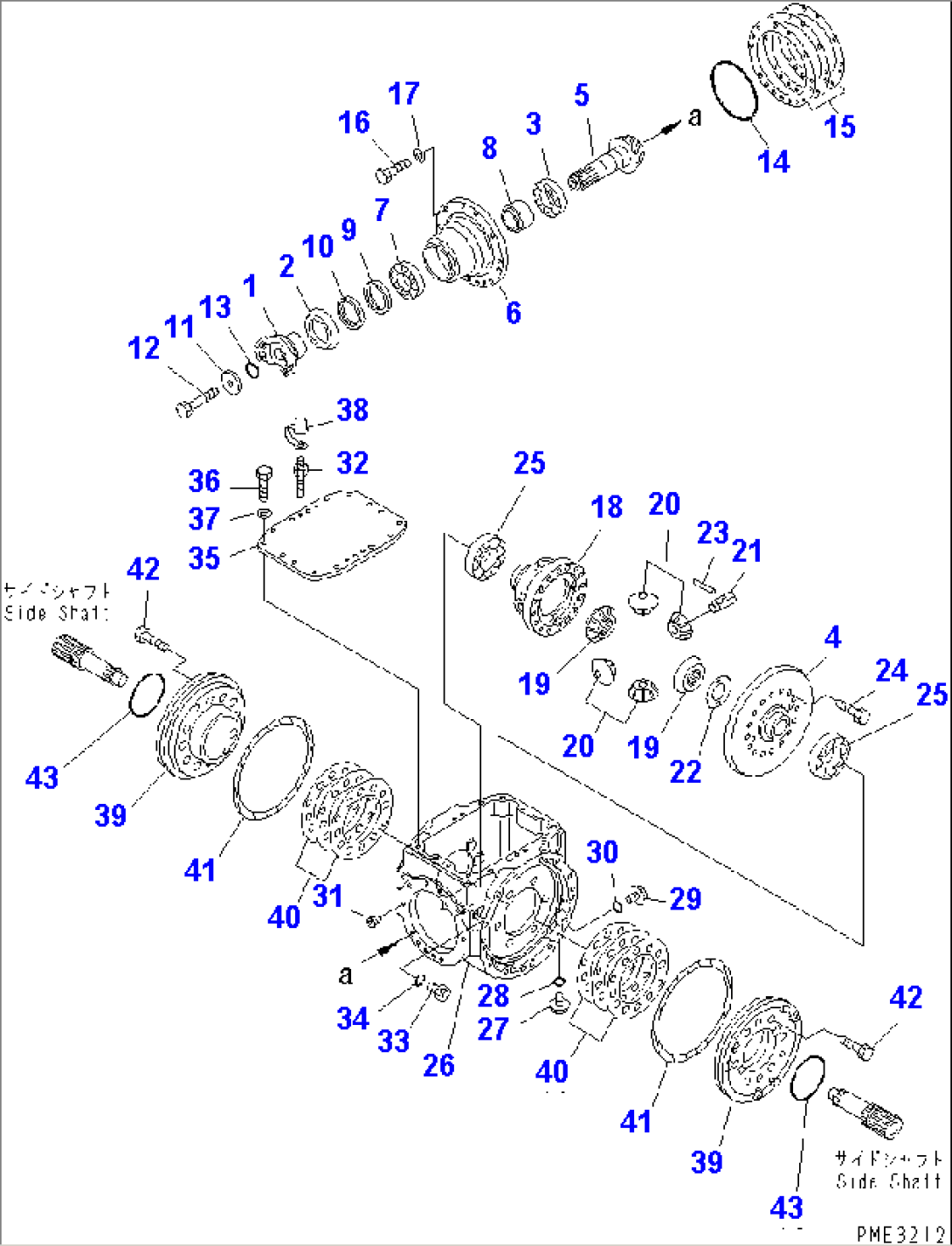

| (416-23-20000) | AXLE ASS'Y,REAR | 53001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F4500-01A0 TO F4500-05A0. | ||||
| 1 | 416-23-21230 | COUPLING | 53001- | |
| 2 | 417-22-21310 | PROTECTOR | 53001- | |
| 3 | 417-22-11810 | BEARING | 53001- | |
| 417-22-21200 | PINION ASS'Y | 53001- | ||
| 4 | \6\ | GEAR | 53001- | |
| 5 | \6\ | PINION | 53001- | |
| 6 | 417-23-21130 | CAGE | 53001- | |
| 7 | 417-22-11820 | BEARING | 53001- | |
| 8 | 417-22-11860 | SPACER | 53001- | |
| 9 | 07012-00065 | SEAL | 53001- | |
| 10 | 417-22-21760 | SEAL | 53001- | |
| 11 | 417-15-13770 | HOLDER | 53001- | |
| 12 | 01011-61615 | BOLT | 53001- | |
| 13 | 07000-13035 | O-RING | 53001- | |
| 14 | 07000-15160 | O-RING | 53001- | |
| 15 | 417-22-11360 | SHIM¤ 0.05MM | 53001- | |
| 417-22-11370 | SHIM¤ 0.2MM | 53001- | ||
| 417-22-11380 | SHIM¤ 0.3MM | 53001- | ||
| 417-22-11390 | SHIM¤ 0.8MM | 53001- | ||
| 16 | 01010-31235 | BOLT | 53001- | |
| 17 | 01643-31232 | WASHER | 53001- | |
| 18 | 417-22-11513 | CARRIER | 53001- | |
| 19 | 417-22-11432 | GEAR | 53001- | |
| 20 | 417-22-11420 | PINION | 53001- | |
| 21 | 417-22-11410 | SHAFT | 53001- | |
| 22 | 417-22-11530 | WASHER | 53001- | |
| 23 | 417-22-11442 | PIN | 53001- | |
| 24 | 01010-31645 | BOLT | 53001- | |
| 25 | 417-22-11850 | BEARING | 53001- | |
| 26 | 417-23-13112 | HOUSING | 53001- | |
| 27 | 07044-13620 | PLUG | 53001- | |
| 28 | 07002-13634 | O-RING | 53001- | |
| 29 | 419-22-13140 | PLUG | 53001- | |
| 30 | 07002-13034 | O-RING | 53001- | |
| 31 | 07043-70211 | PLUG | 53001- | |
| 32 | 419-33-11460 | BLEEDER | 53001- | |
| 33 | 07040-11209 | PLUG | 53001- | |
| 34 | 07002-11223 | O-RING | 53001- | |
| 35 | 417-22-13121 | COVER | 53001- | |
| 36 | 01010-31230 | BOLT | 53001- | |
| 37 | 01643-31232 | WASHER | 53001- | |
| 38 | 566-32-11620 | CAP | 53001- | |
| 39 | 417-22-11162 | CARRIER | 53001- | |
| 40 | 417-22-11461 | SHIM¤ 0.07MM | 53001- | |
| 417-22-11471 | SHIM¤ 0.2MM | 53001- | ||
| 417-22-11481 | SHIM¤ 0.3MM | 53001- | ||
| 417-22-11491 | SHIM¤ 0.8MM | 53001- | ||
| 41 | 417-33-11430 | RING | 53001- | |
| 42 | 01010-31230 | BOLT | 53001- | |
| 43 | 417-33-11420 | O-RING | 53001- |
