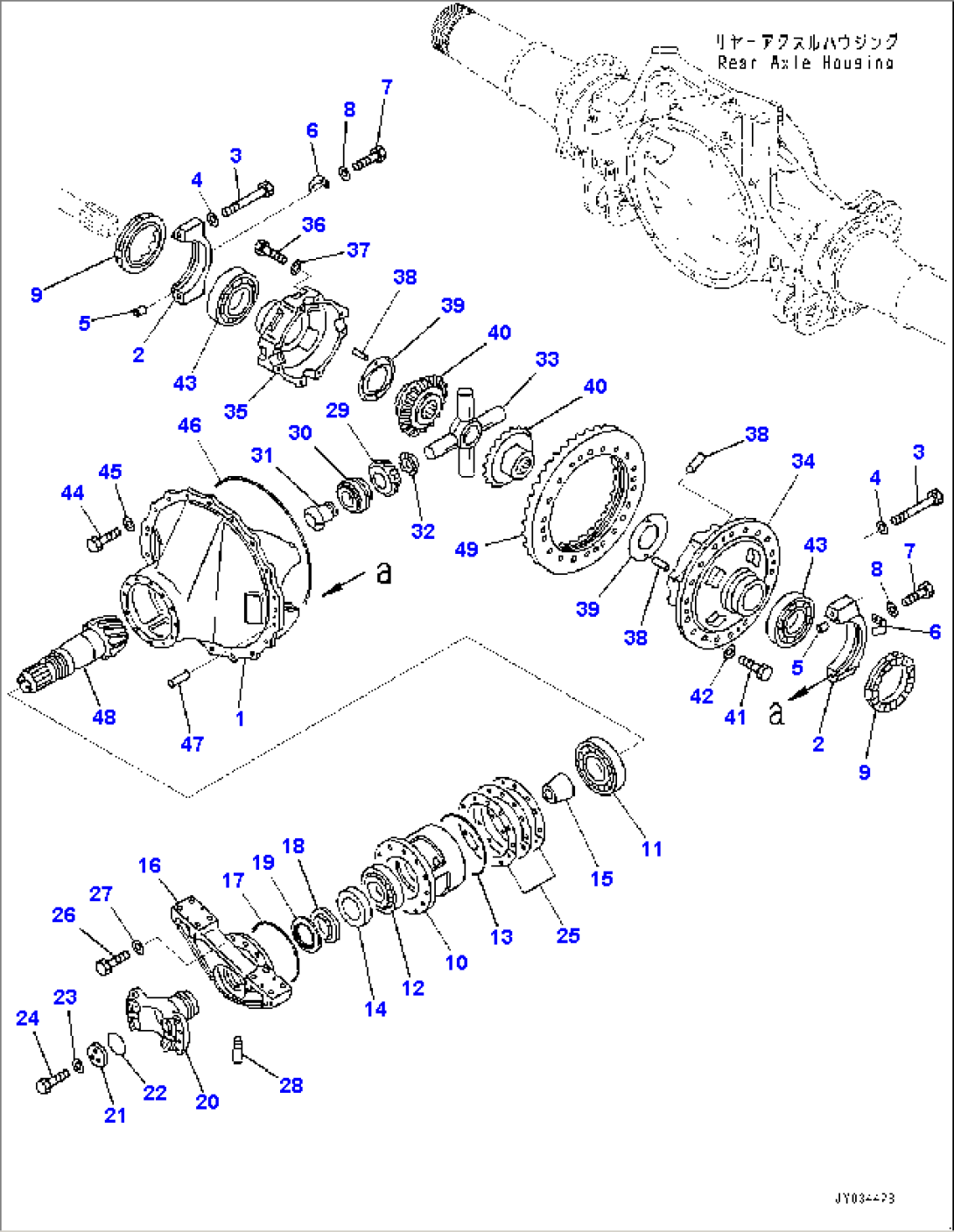

| Item | Part No. | Part Name | Qty | Serial No. |
| 566-22-85600 | Axle Assembly | 50001- | ||
| 566-22-86000 | Differential Assembly | 50001- | ||
| 566-22-00014 | Case Assembly | 50001- | ||
| 1 | Case | 50001- | ||
| 2 | Cap | 50001- | ||
| 3 | 01011-63085 | Bolt | 50001- | |
| 4 | 01643-33080 | Washer | 50001- | |
| 5 | 423-22-11161 | Pin | 50001- | |
| 6 | 566-22-11251 | Lock | 50001- | |
| 7 | 01010-61230 | Bolt | 50001- | |
| 8 | 01643-31232 | Washer | 50001- | |
| 9 | 287-22-11631 | Nut | 50001- | |
| 10 | 566-22-86350 | Cage | 50001- | |
| 11 | 566-22-11812 | Bearing | 50001- | |
| 12 | 566-22-71820 | Bearing | 50001- | |
| 13 | 07000-15230 | O-ring | 50001- | |
| 14 | 566-22-71360 | Collar | 50001- | |
| 15 | 566-22-71370 | Collar | 50001- | |
| 16 | 566-22-86310 | Cage | 50001- | |
| 17 | 07000-15190 | O-ring | 50001- | |
| 18 | 07012-50110 | Seal, Oil | 50001- | |
| 19 | 426-22-31770 | Seal | 50001- | |
| 20 | 566-22-86420 | Coupling | 50001- | |
| 21 | 566-22-71450 | Holder | 50001- | |
| 22 | 07000-15075 | O-ring | 50001- | |
| 23 | 01643-32460 | Washer | 50001- | |
| 24 | 01051-62445 | Bolt | 50001- | |
| 25 | 566-22-00031 | Shim Assembly | 50001- | |
| 25 | 566-22-11371 | Shim, T=0.3mm | 50001- | |
| 25 | 566-22-11381 | Shim, T=0.2mm | 50001- | |
| 25 | 566-22-11391 | Shim, T=1.0mm | 50001- | |
| 26 | 01010-61670 | Bolt | 50001- | |
| 27 | 01643-31645 | Washer | 50001- | |
| 28 | 566-22-11470 | Tube | 50001- | |
| 569-22-21400 | Pinion Assembly | 50001- | ||
| 29 | 569-22-21421 | Pinion | 50001- | |
| 30 | 569-22-21850 | Bearing | 50001- | |
| 31 | 569-22-21440 | Sleeve | 50001- | |
| 32 | 569-22-21950 | Nut | 50001- | |
| 33 | 569-22-61410 | Shaft | 50001- | |
| 33 | 569-22-00043 | Case Assembly | 50001- | |
| 34 | Case | 50001- | ||
| 35 | Case | 50001- | ||
| 36 | 01051-62020 | Bolt | 50001- | |
| 37 | 01643-32060 | Washer | 50001- | |
| 38 | 565-22-11991 | Pin | 50001- | |
| 39 | 566-22-11211 | Washer | 50001- | |
| 40 | 566-22-21430 | Gear | 50001- | |
| 41 | 01010-62060 | Bolt | 50001- | |
| 42 | 01643-32060 | Washer | 50001- | |
| 43 | 566-22-71850 | Bearing | 50001- | |
| 44 | 01010-62055 | Bolt | 50001- | |
| 45 | 01643-32060 | Washer | 50001- | |
| 46 | 198-09-31640 | O-ring | 50001- | |
| 47 | 04020-01842 | Pin, Dowel | 50001- | |
| 47 | 566-22-00024 | Bevel and Pinion Assembly | 50001- | |
| 48 | Pinion | 50001- | ||
| 49 | Gear | 50001- |
