| Item | Part No. | Part Name | Qty | Serial No. |
| (418-23-20001) | AXLE ASS'Y,REAR | 51016- | ||

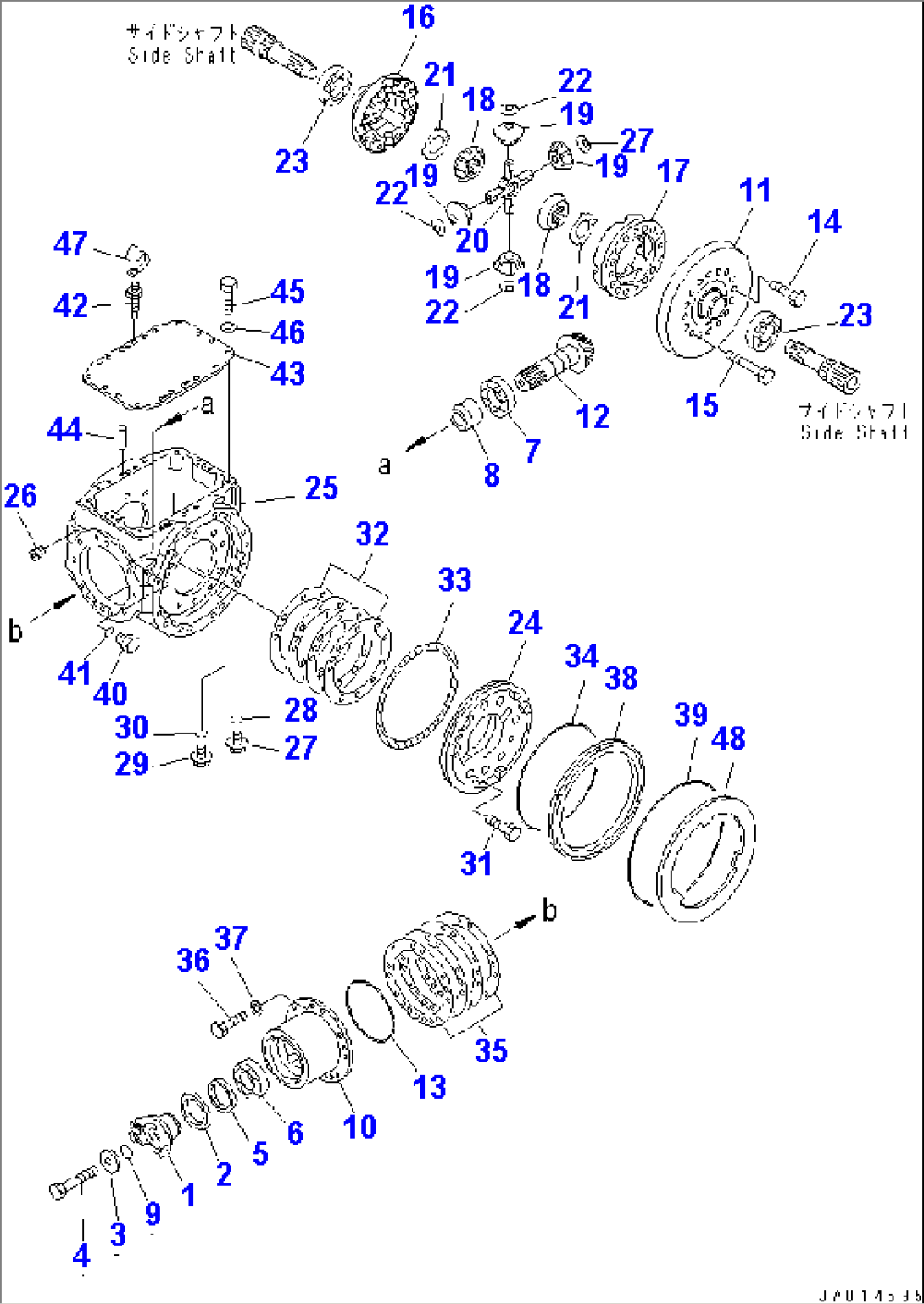

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F4500-01A0 TO F4500-03A0. | ||||
| 1 | 418-22-21250 | COUPLING | 50001- | |
| 2 | 418-22-21310 | PROTECTOR | 50001- | |
| 3 | 417-15-13770 | HOLDER | 50001- | |
| 4 | 01011-61615 | BOLT | 50001- | |
| 5 | 418-22-21330 | SEAL | 50001- | |
| 6 | 418-22-11820 | BEARING | 50001- | |
| 7 | 418-22-11810 | BEARING | 50001- | |
| 8 | 418-22-11861 | SPACER | 50001- | |
| 9 | 07000-13040 | O-RING | 50001- | |
| 10 | 418-23-21130 | CAGE | 50001- | |
| 418-22-21200 | PINION ASS'Y | 50001- | ||
| 11 | \6\ | GEAR,BEVEL | 50001- | |
| 12 | \6\ | PINION | 50001- | |
| 13 | 07000-15160 | O-RING | 50001- | |
| 14 | 01010-61645 | BOLT | 51016- | |
| 15 | 01010-61695 | BOLT | 51016- | |
| 418-22-21900 | CASE ASS'Y | 51016- | ||
| 16 | \6\ | CASE | 51016- | |
| 17 | \6\ | CASE | 51016- | |
| 18 | 418-22-11431 | GEAR | 50001- | |
| 19 | 419-22-11421 | PINION | 51016- | |
| 20 | 418-22-31410 | SPIDER | 51016- | |
| 21 | 418-22-11531 | WASHER | 50001- | |
| 22 | 418-22-31550 | WASHER | 51016- | |
| 23 | 417-22-11850 | BEARING | 50001- | |
| 24 | 418-22-21160 | CARRIER | 50001- | |
| 25 | 418-23-23110 | HOUSING | 50001- | |
| 26 | 07043-70211 | PLUG | 50001- | |
| 27 | 07044-13620 | PLUG | 50001- | |
| 28 | 07002-13634 | O-RING | 50001- | |
| 29 | 419-22-13140 | PLUG | 50001- | |
| 30 | 07002-13034 | O-RING | 50001- | |
| 31 | 01010-61230 | BOLT | 50001- | |
| 32 | 418-22-21510 | SHIM, 0.05MM | 50001- | |
| 32 | 418-22-21520 | SHIM, 0.2MM | 50001- | |
| 32 | 418-22-21530 | SHIM, 0.3MM | 50001- | |
| 32 | 418-22-21540 | SHIM, 0.8MM | 50001- | |
| 33 | 418-33-21430 | RING | 50001- | |
| 34 | 418-33-21420 | O-RING | 50001- | |
| 35 | 417-22-11360 | SHIM, 0.05MM | 50001- | |
| 35 | 417-22-11370 | SHIM, 0.2MM | 50001- | |
| 35 | 417-22-11380 | SHIM, 0.3MM | 50001- | |
| 35 | 417-22-11390 | SHIM, 0.8MM | 50001- | |
| 36 | 01010-61235 | BOLT | 50001- | |
| 37 | 01643-31232 | WASHER | 50001- | |
| 38 | 418-33-21120 | PISTON | 50001- | |
| 39 | 418-33-21410 | O-RING | 50001- | |
| 40 | 07040-11209 | PLUG | 50001- | |
| 41 | 07002-11223 | O-RING | 50001- | |
| 42 | 419-33-11460 | BLEEDER | 50001- | |
| 43 | 418-22-23120 | COVER | 50001- | |
| 44 | 04020-01228 | PIN,DOWEL | 50001- | |
| 45 | 01010-61230 | BOLT | 50001- | |
| 46 | 01643-31232 | WASHER | 50001- | |
| 47 | 566-32-11620 | CAP | 50001- | |
| 48 | 418-33-21251 | PLATE | 50001- |
