| Item | Part No. | Part Name | Qty | Serial No. |
| (426-23-20190) | REAR AXLE ASS'Y | 52406- | ||

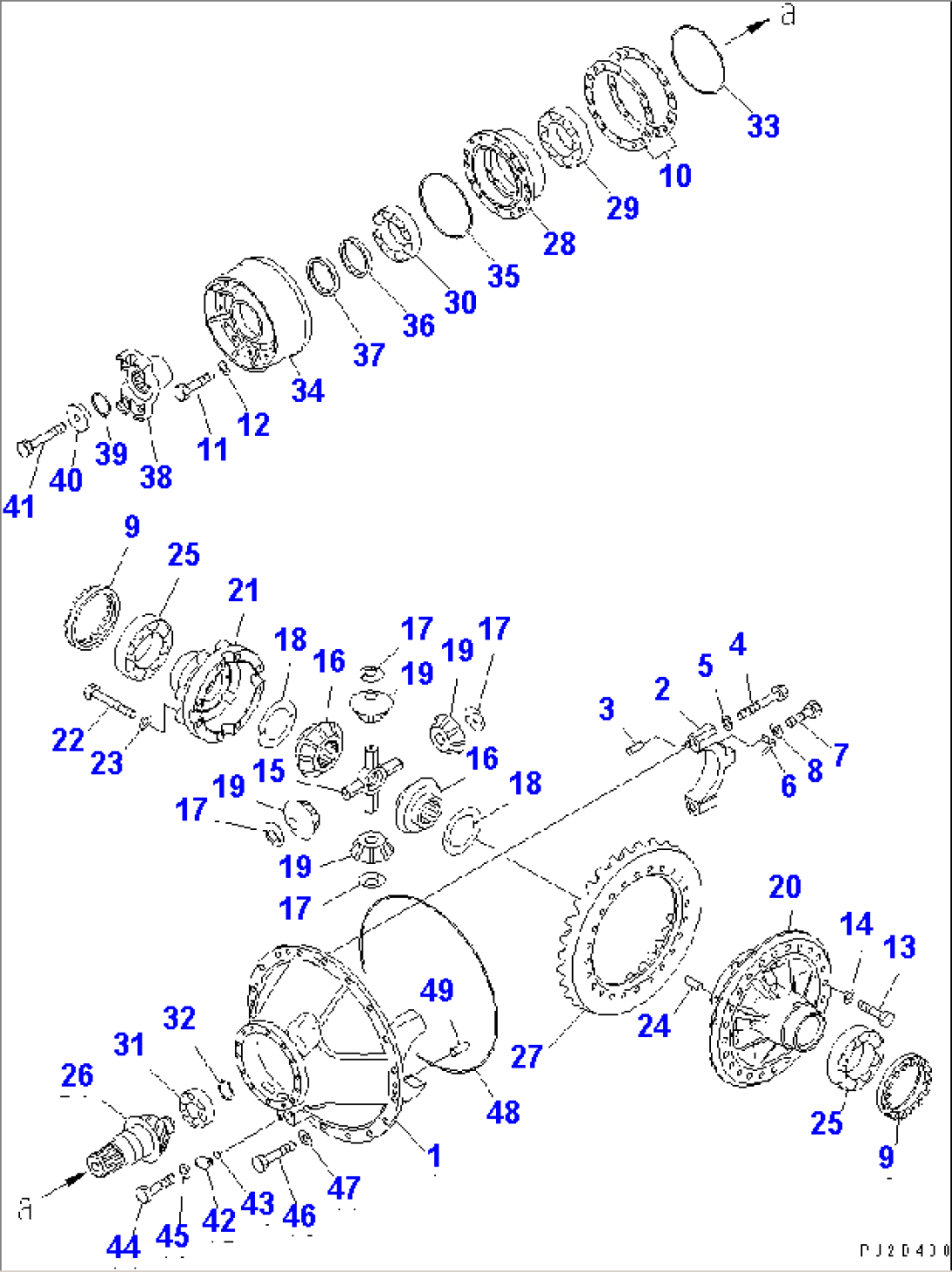

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F4500-01B1 TO F4500-05C1. | ||||
| 426-23-21091 | DIFFERENTIAL ASS'Y | 52406- | ||
| 426-22-21190 | CARRIER ASS'Y | 52406- | ||
| 1 | \6\ | CARRIER | 52406- | |
| 2 | \6\ | CAP | 52406- | |
| 3 | 175-21-12180 | PIN,DOWEL | 52406- | |
| 4 | 01011-63060 | BOLT | 52406- | |
| 5 | 01643-33080 | WASHER | 52406- | |
| 6 | 426-22-11150 | LOCK | 52406- | |
| 7 | 01010-61230 | BOLT | 52406- | |
| 8 | 01643-31232 | WASHER | 52406- | |
| 9 | 287-22-11631 | NUT | 52406- | |
| 10 | 426-22-21370 | SHIM, 1.0MM | 52406- | |
| 10 | 426-22-21380 | SHIM, 0.3MM | 52406- | |
| 10 | 426-22-21390 | SHIM, 0.2MM | 52406- | |
| 11 | 01010-61690 | BOLT | 52406- | |
| 12 | 01643-31645 | WASHER | 52406- | |
| 13 | 01010-62060 | BOLT | 52406- | |
| 14 | 01643-32060 | WASHER | 52406- | |
| 15 | 426-22-21410 | SHAFT | 52406- | |
| 16 | 426-22-21431 | GEAR | 52406- | |
| 17 | 426-22-11690 | WASHER | 52406- | |
| 18 | 426-22-11531 | WASHER | 52406- | |
| 19 | 426-22-11421 | PINION | 52406- | |
| 426-22-21500 | CASE ASS'Y | 52406- | ||
| 20 | \6\ | CASE | 52406- | |
| 21 | \6\ | CASE | 52406- | |
| 22 | 01011-62445 | BOLT | 52406- | |
| 23 | 01643-32460 | WASHER | 52406- | |
| 24 | 175-21-12180 | PIN,DOWEL | 52406- | |
| 25 | 569-22-11820 | BEARING | 52406- | |
| 426-22-21201 | GEAR ASS'Y | 52406- | ||
| 26 | \6\ | PINION | 52406- | |
| 27 | \6\ | GEAR | 52406- | |
| 28 | 426-22-21130 | CAGE | 52406- | |
| 29 | 426-22-21810 | BEARING | 52406- | |
| 30 | 426-22-21820 | BEARING | 52406- | |
| 31 | 426-22-21830 | BEARING | 52406- | |
| 32 | 04064-06020 | RING,SNAP | 52406- | |
| 33 | 07000-55240 | O-RING | 52406- | |
| 34 | 426-23-21310 | CAGE | 52406- | |
| 35 | 07000-55230 | O-RING | 52406- | |
| 36 | 07012-40110 | SEAL,OIL | 52406- | |
| 37 | 426-22-21760 | SEAL | 52406- | |
| 38 | 426-23-11230 | COUPLING | 52406- | |
| 39 | 07000-55075 | O-RING | 52406- | |
| 40 | 287-15-13621 | HOLDER | 52406- | |
| 41 | 01051-62440 | BOLT | 52406- | |
| 42 | 175-49-23680 | FRANGE | 52406- | |
| 43 | 07000-53032 | O-RING | 52406- | |
| 44 | 01010-81035 | BOLT | 52406- | |
| 45 | 01643-31032 | WASHER | 52406- | |
| 46 | 01010-62050 | BOLT | 52406- | |
| 47 | 01643-32060 | WASHER | 52406- | |
| 48 | 41E-22-11610 | O-RING | 52406- | |
| 49 | 04020-01842 | PIN,DOWEL | 52406- |
