| Item | Part No. | Part Name | Qty | Serial No. |
| (425-23-20011) | REAR AXLE ASS'Y | 52374-@ | ||
| (425-23-20010) | REAR AXLE ASS'Y | 52164-52373 | ||

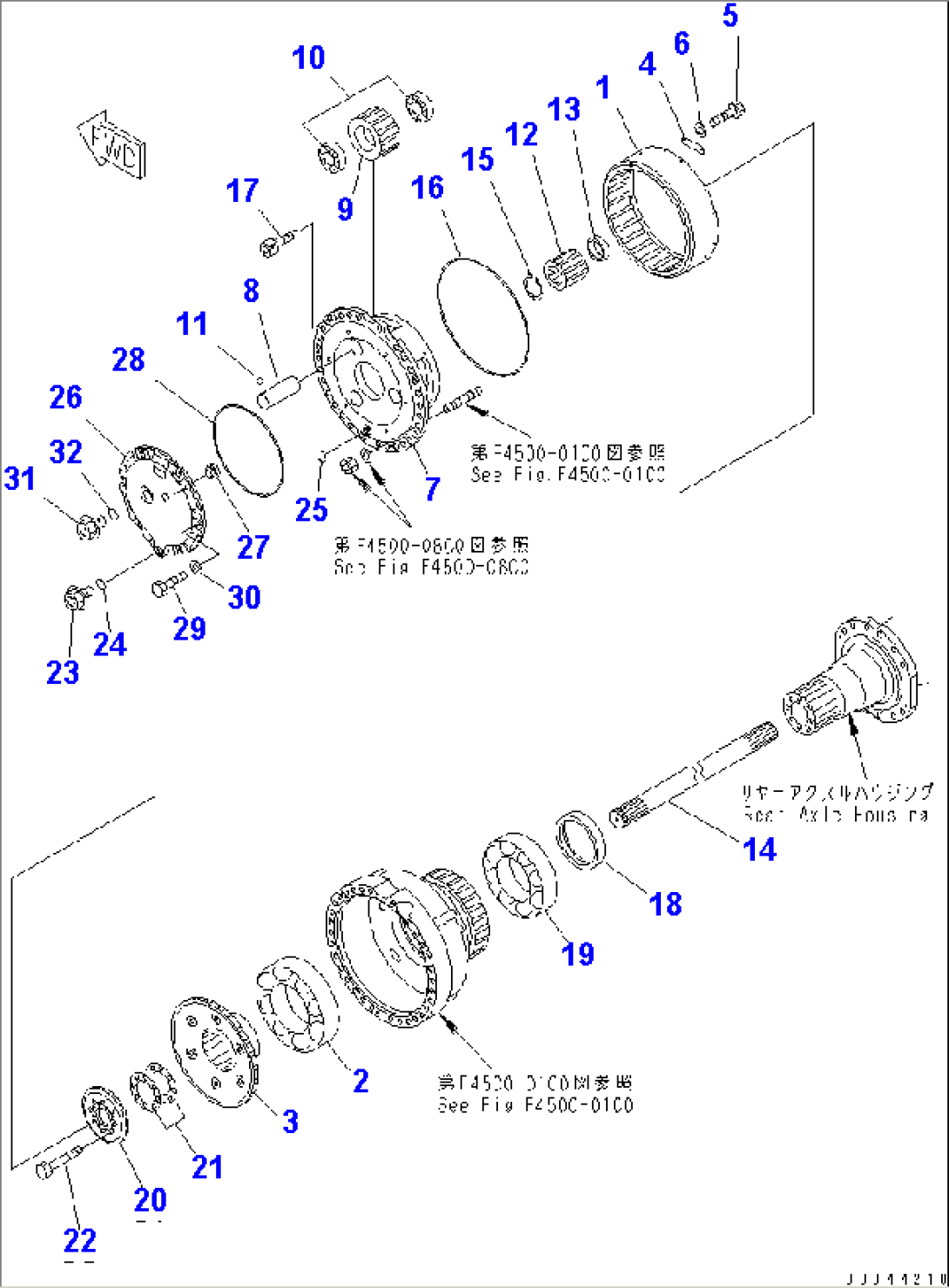

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F4500-01A2 TO F4500-05A2. | ||||
| 425-23-21010 | DIFFERENTIAL ASS'Y | 52164-@ | ||
| 425-22-21120 | CARRIER ASS'Y | 52164-@ | ||
| 1 | \6\ | CARRIER | 52164-@ | |
| 2 | \6\ | CAP | 52164-@ | |
| 3 | 175-21-12180 | PIN,DOWEL | 52164-@ | |
| 4 | 01011-62420 | BOLT | 52164-@ | |
| 5 | 01643-32460 | WASHER | 52164-@ | |
| 6 | 425-22-11140 | NUT | 52164-@ | |
| 7 | 425-22-11150 | LOCK | 52164-@ | |
| 8 | 01010-60820 | BOLT | 52164-@ | |
| 9 | 01643-30823 | WASHER | 52164-@ | |
| 10 | 425-22-11370 | SHIM, 1.0MM | 52164-@ | |
| 10 | 425-22-11380 | SHIM, 0.3MM | 52164-@ | |
| 10 | 425-22-11390 | SHIM, 0.2MM | 52164-@ | |
| 11 | 01010-31665 | BOLT | 52164-@ | |
| 12 | 01643-31645 | WASHER | 52164-@ | |
| 13 | 01010-62050 | BOLT | 52164-@ | |
| 14 | 01643-32060 | WASHER | 52164-@ | |
| 15 | 425-22-11411 | SHAFT | 52164-@ | |
| 16 | 425-22-11450 | PINION | 52164-@ | |
| 17 | 425-22-11430 | GEAR | 52164-@ | |
| 18 | 425-22-11560 | WASHER | 52164-@ | |
| 19 | 425-22-11531 | WASHER | 52164-@ | |
| 20 | 175-21-12180 | PIN,DOWEL | 52164-@ | |
| 425-22-21501 | CASE ASS'Y | 52164-@ | ||
| 21 | 425-22-21511 | CASE | 52164-@ | |
| 22 | 425-22-21520 | CASE | 52164-@ | |
| 23 | 01011-61610 | BOLT | 52164-@ | |
| 24 | 01643-31645 | WASHER | 52164-@ | |
| 25 | 562-13-12260 | BEARING | 52164-@ | |
| 425-22-21201 | GEAR ASS'Y | 52164-@ | ||
| 26 | \6\ | PINION | 52164-@ | |
| 27 | \6\ | GEAR,BEVEL | 52164-@ | |
| 28 | 425-22-11130 | CAGE | 52164-@ | |
| 29 | 425-22-11811 | BEARING | 52164-@ | |
| 30 | 425-22-11831 | BEARING | 52164-@ | |
| 31 | 04064-05520 | RING,SNAP | 52164-@ | |
| 32 | 07000-15200 | O-RING | 52164-@ | |
| 33 | 425-23-11314 | SUPPORT | 52164-@ | |
| 34 | 07000-15190 | O-RING | 52164-@ | |
| 35 | 07012-50100 | SEAL,OIL | 52164-@ | |
| 36 | 425-22-11760 | SEAL | 52164-@ | |
| 37 | 425-23-11230 | COUPLING | 52164-@ | |
| 38 | 07000-15065 | O-RING | 52164-@ | |
| 39 | 425-22-11240 | HOLDER | 52164-@ | |
| 40 | 01051-62440 | BOLT | 52164-@ | |
| 41 | 01010-62050 | BOLT | 52164-@ | |
| 42 | 01643-32060 | WASHER | 52164-@ | |
| 43 | 195-21-11350 | O-RING | 52164-@ | |
| 44 | 04020-01638 | PIN,DOWEL | 52164-@ |
