| Item | Part No. | Part Name | Qty | Serial No. |
| (418-23-30050) | AXLE ASS'Y,REAR (ASD) | 70001- | ||

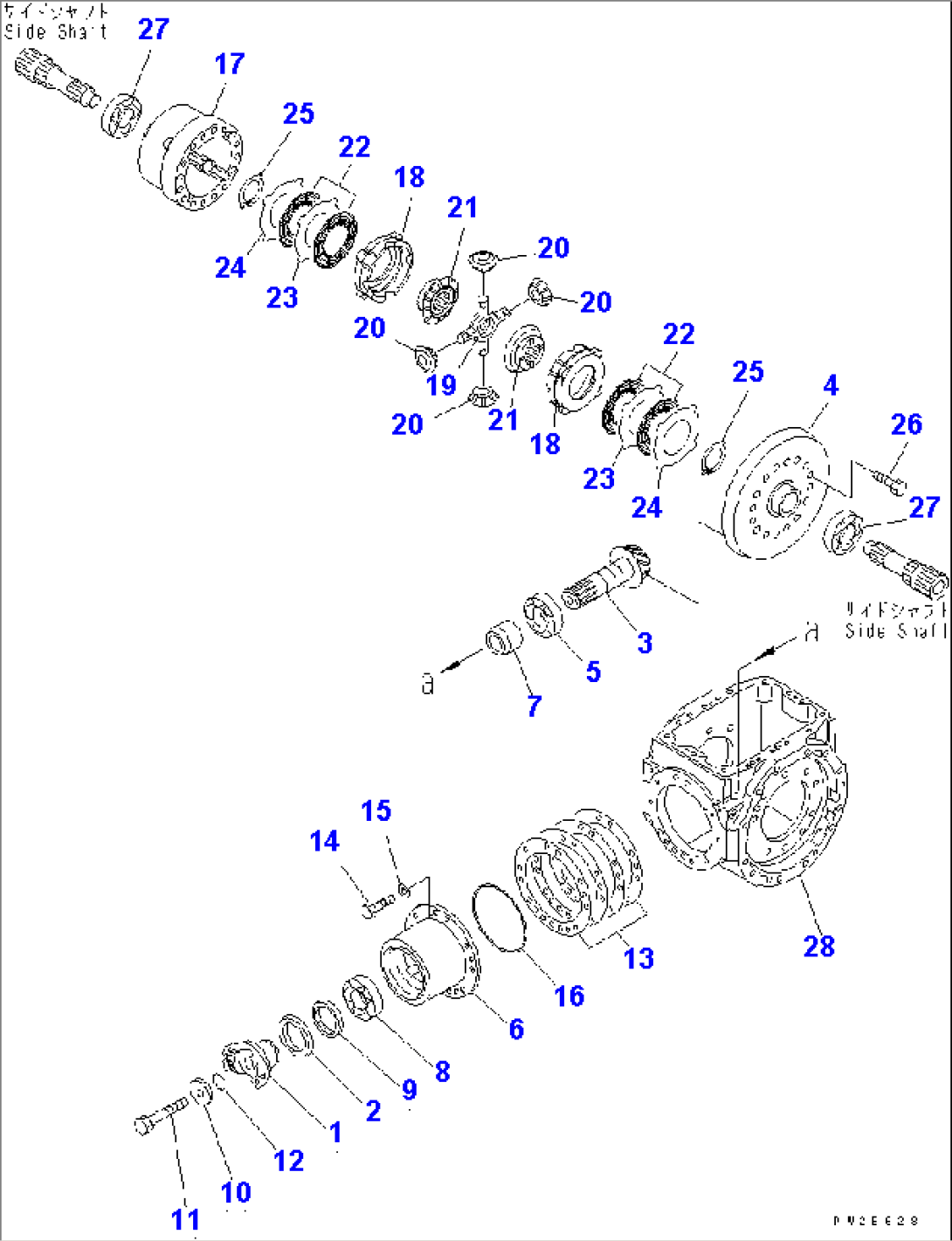

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F4500-01A1 TO F4500-04A0. | ||||
| 1 | 418-23-31231 | COUPLING | 70001- | |
| 2 | 418-22-21310 | PROTECTOR | 70001- | |
| 418-23-37501 | PINION ASS'Y | 70001- | ||
| 3 | 418-23-31211 | PINION | 70001- | |
| 4 | 418-22-37520 | GEAR,BEVEL | 70001- | |
| 5 | 418-22-11810 | BEARING | 70001- | |
| 6 | 418-23-31131 | CAGE | 70001- | |
| 7 | 418-22-31861 | SPACER | 70001- | |
| 8 | 419-22-11820 | BEARING | 70001- | |
| 9 | 418-22-21330 | SEAL,OIL | 70001- | |
| 10 | 417-15-13770 | HOLDER | 70001- | |
| 11 | 01011-61615 | BOLT | 70001- | |
| 12 | 07000-13042 | O-RING | 70001- | |
| 13 | 417-22-11361 | SHIM¤ 0.05MM | 70001- | |
| 417-22-11371 | SHIM¤ 0.2MM | 70001- | ||
| 417-22-11381 | SHIM¤ 0.3MM | 70001- | ||
| 417-22-11391 | SHIM¤ 0.8MM | 70001- | ||
| 14 | 01010-61235 | BOLT | 70001- | |
| 15 | 01643-31232 | WASHER | 70001- | |
| 16 | 07000-15160 | O-RING | 70001- | |
| 418-22-37100 | DIFFERENTIAL ASS'Y | 70001- | ||
| 17 | 418-22-37110 | CASE | 70001- | |
| 18 | 418-22-37210 | RING | 70001- | |
| 19 | 418-22-27220 | SHAFT | 70001- | |
| 20 | 418-22-27310 | PINION | 70001- | |
| 21 | 418-22-37320 | GEAR | 70001- | |
| 22 | 418-22-27411 | DISC | 70001- | |
| 23 | 418-22-37450 | PLATE | 70001- | |
| 24 | 418-22-37460 | PLATE | 70001- | |
| 25 | 418-22-37370 | WASHER | 70001- | |
| 26 | 01010-61640 | BOLT | 70001- | |
| 27 | 417-22-12840 | BEARING | 70001- | |
| 28 | 418-23-33111 | HOUSING | 70001- |
