| Item | Part No. | Part Name | Qty | Serial No. |
| (56C-22-10002) | REAR AXLE ASS'Y | 1001- | ||

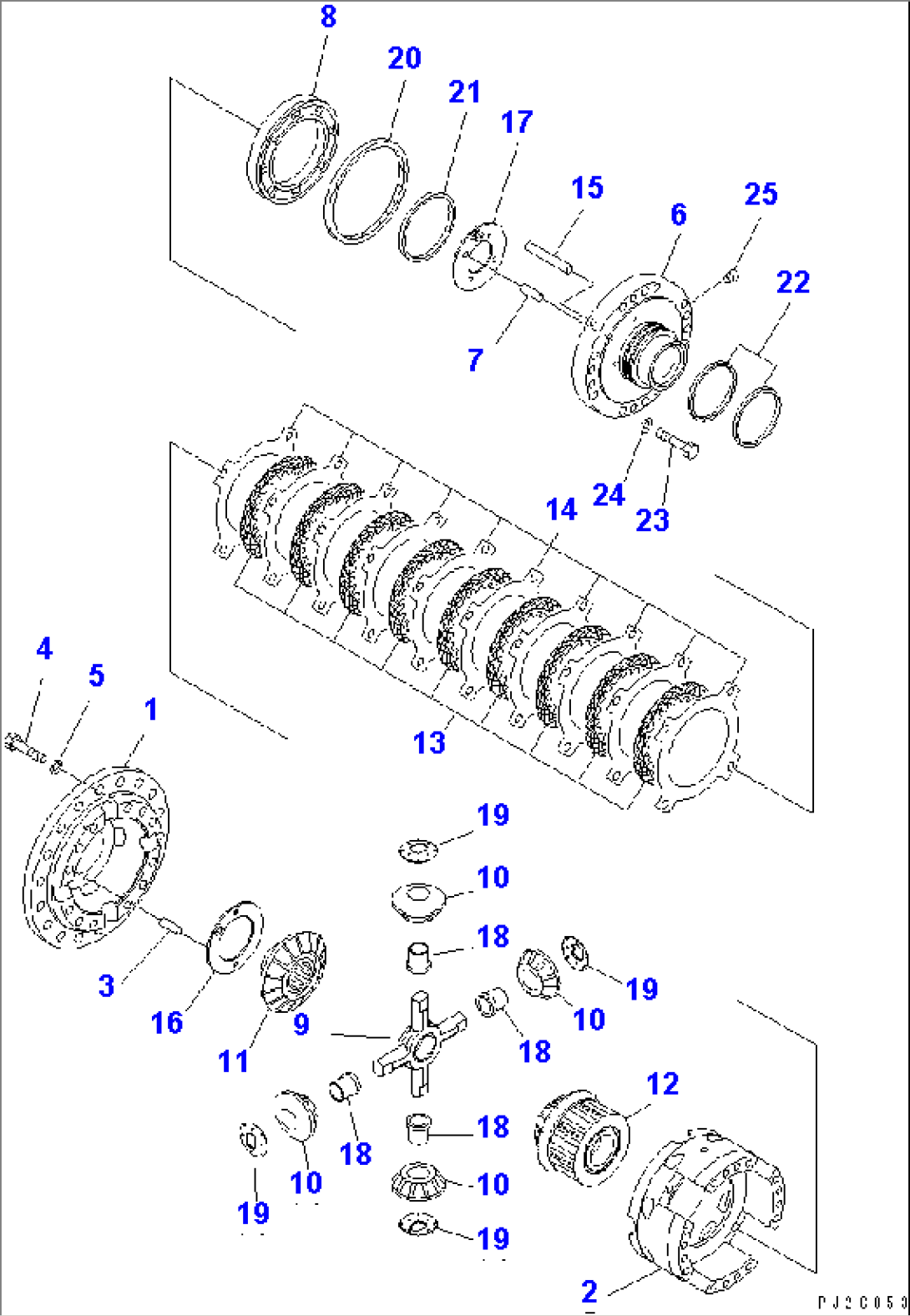

| (56C-22-11001) | DIFFERENTIAL ASS'Y,REAR | 1001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F3560-01A0 TO F3560-03A0. | ||||
| 56C-22-11601 | CASE | 1001- | ||
| 1 | \6\ | CASE | 1001- | |
| 2 | \6\ | CASE | 1001- | |
| 3 | 175-21-12180 | PIN | 1001- | |
| 4 | 01010-61685 | BOLT | 1001- | |
| 5 | 01643-51645 | WASHER | 1001- | |
| 6 | 56B-22-11531 | CASE | 1001- | |
| 7 | 175-21-12180 | PIN | 1001- | |
| 8 | 56B-22-11911 | PISTON | 1001- | |
| 9 | 56C-22-11410 | SHAFT | 1001- | |
| 10 | 56C-22-17150 | PINION | 1001- | |
| 11 | 421-23-31461 | GEAR,SIDE | 1001- | |
| 12 | 56C-22-11430 | GEAR,SIDE | 1001- | |
| 13 | 56B-22-11610 | DISK | 1001- | |
| 14 | 56B-22-11620 | PLATE | 1001- | |
| 15 | 561-88-68940 | PIN | 1001- | |
| 16 | 421-23-31630 | WASHER | 1001- | |
| 17 | 56B-22-11450 | WASHER | 1001- | |
| 18 | 56C-22-17170 | BUSHING | 1001- | |
| 19 | 56C-22-11560 | WASHER | 1001- | |
| 20 | 103-15-12811 | RING,SEAL | 1001- | |
| 21 | 415-15-12360 | RING,SEAL | 1001- | |
| 22 | 14Y-22-13270 | RING,SEAL | 1001- | |
| 23 | 01010-61465 | BOLT | 1001- | |
| 24 | 20D-14-11510 | WASHER | 1001- | |
| 25 | 07043-70108 | PLUG | 1001- |
