| Item | Part No. | Part Name | Qty | Serial No. |
| (56B-22-20005) | AXLE ASS'Y | 7079- | ||
| (56B-22-20004) | AXLE ASS'Y | 7012-7078 | ||
| (\1\56B-22-20003) | AXLE ASS'Y | 7001-7011 | ||

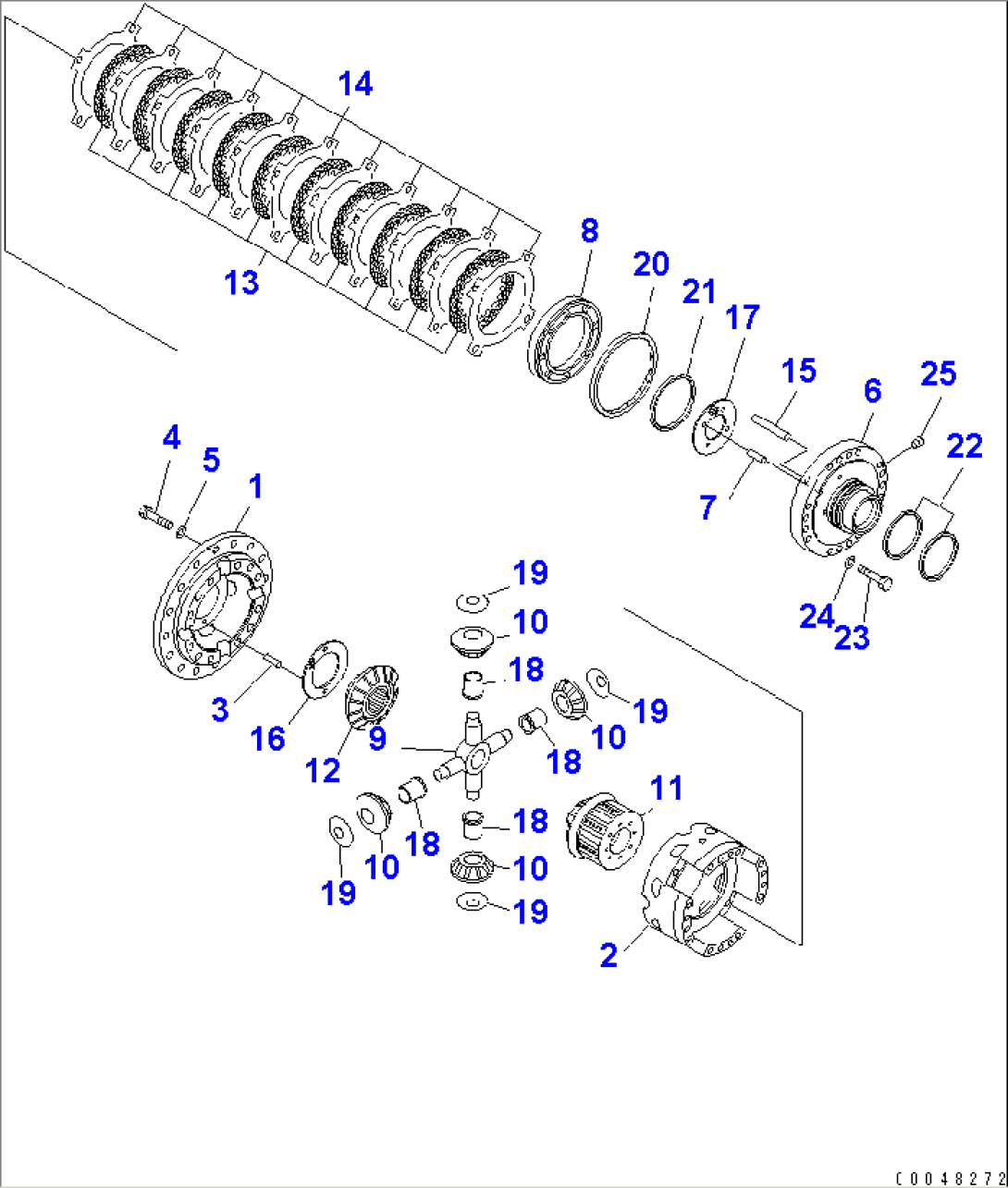

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F3560-01A0 TO F3560-12A0. | ||||
| (56B-22-11004) | DIFFERENTIAL AS | 7079- | ||
| (56B-22-11003) | DIFFERENTIAL AS | 7001-7078 | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F3560-01A0 TO F3560-03A0. | ||||
| 56B-22-11600 | CASE ASS'Y | 7001- | ||
| 1 | 56B-22-11510 | CASE | 7001- | |
| 2 | 56B-22-11520 | CASE | 7001- | |
| 3 | 175-21-12180 | PIN | 7001- | |
| 4 | 01010-61685 | BOLT | 7001- | |
| 5 | 01643-31645 | WASHER | 7001- | |
| 6 | 56B-22-11531 | CASE | 7001- | |
| 7 | 175-21-12180 | PIN | 7001- | |
| 8 | 56B-22-11911 | PISTON | 7001- | |
| 9 | 56B-22-21420 | SHAFT | 7079- | |
| 9 | 421-22-31410 | SHAFT | 7001-7078 | |
| 10 | 23C-22-51741 | PINION | 7079- | |
| 10 | 56B-22-17150 | PINION | 7001-7078 | |
| 11 | 56B-22-11430 | GEAR,SIDE | 7001- | |
| 12 | 56B-22-11440 | GEAR,SIDE | 7001- | |
| 13 | 56B-22-11610 | DISK | 7001- | |
| 14 | 56B-22-11620 | PLATE | 7001- | |
| 15 | 561-88-68940 | PIN | 7001- | |
| 16 | 56B-22-11460 | WASHER | 7001- | |
| 17 | 56B-22-11450 | WASHER | 7001- | |
| 18 | 56B-22-17170 | BUSHING | 7001- | |
| 19 | 56B-22-11770 | WASHER | 7079- | |
| 19 | 56B-22-11580 | WASHER | 7001-7078 | |
| 20 | 103-15-12811 | RING | 7001- | |
| 21 | 415-15-12360 | RING,SEAL | 7001- | |
| 22 | 14Y-22-13270 | RING | 7001- | |
| 23 | 01010-61465 | BOLT | 7001- | |
| 24 | 20D-14-11510 | WASHER | 7001- | |
| 25 | 07043-70108 | PLUG | 7001- |
