| Item | Part No. | Part Name | Qty | Serial No. |
| (418-23-30001) | AXLE ASS'Y,REAR | 65001- | ||

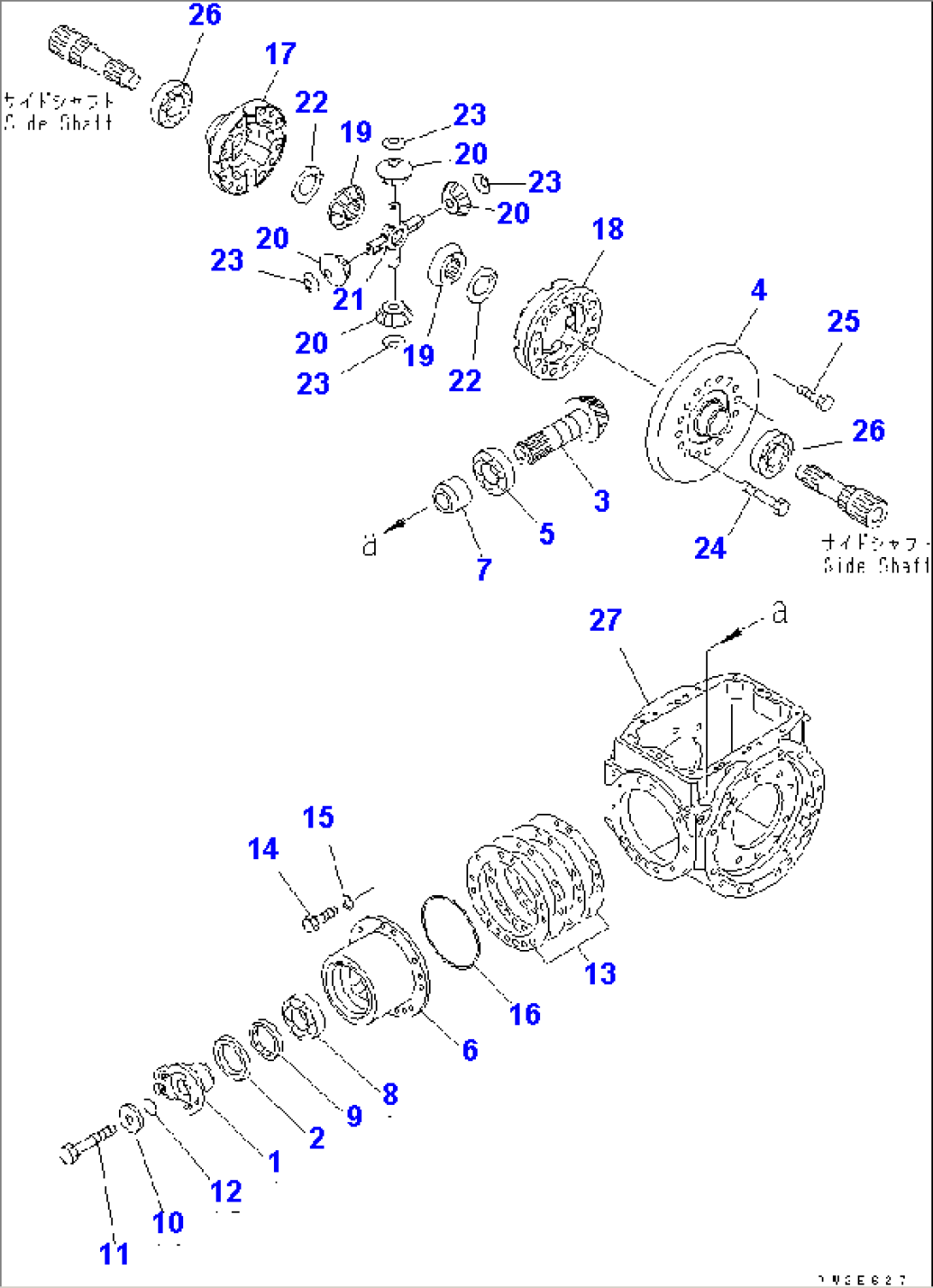

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F4500-51A0 TO F4500-55A0. | ||||
| 418-23-31010 | DIFFERENTIAL ASS'Y | 65001- | ||
| 418-23-41260 | COUPLING | 65001- | ||
| 1 | \6\ | COUPLING | 65001- | |
| 2 | \6\ | PROTECTOR | 65001- | |
| 418-23-31201 | PINION ASS'Y | 65001- | ||
| 3 | \6\ | PINION | 65001- | |
| 4 | \6\ | GEAR,BEVEL | 65001- | |
| 5 | 418-22-11810 | BEARING | 65001- | |
| 6 | 418-23-31131 | CAGE | 65001- | |
| 7 | 418-22-31861 | SPACER | 65001- | |
| 8 | 419-22-11820 | BEARING | 65001- | |
| 9 | 418-22-21330 | SEAL,OIL | 65001- | |
| 10 | 417-22-33770 | HOLDER | 69366- | |
| 10 | 417-15-13770 | HOLDER | 65001-69365 | |
| 11 | 01011-61615 | BOLT | 65001- | |
| 12 | 07000-13042 | O-RING | 65001- | |
| 13 | 417-22-11361 | SHIM, 0.05MM | 65001- | |
| 13 | 417-22-11371 | SHIM, 0.2MM | 65001- | |
| 13 | 417-22-11381 | SHIM, 0.3MM | 65001- | |
| 13 | 417-22-11391 | SHIM, 0.8MM | 65001- | |
| 14 | 01010-61235 | BOLT | 65001- | |
| 15 | 01643-31232 | WASHER | 65001- | |
| 16 | 07000-15160 | O-RING | 65001- | |
| 418-23-31501 | CASE ASS'Y | 65001- | ||
| 17 | \6\ | CASE | 65001- | |
| 18 | \6\ | CASE | 65001- | |
| 19 | 417-22-11432 | GEAR | 65001- | |
| 20 | 417-22-11420 | PINION | 65001- | |
| 21 | 418-23-31410 | SPIDER | 65001- | |
| 22 | 418-23-31460 | WASHER | 65001- | |
| 23 | 418-23-31550 | WASHER | 65001- | |
| 24 | 01010-61695 | BOLT | 65001- | |
| 25 | 01010-61645 | BOLT | 65001- | |
| 26 | 417-22-12840 | BEARING | 65001- | |
| 27 | 418-23-33610 | HOUSING | 69332- | |
| 27 | \0\418-23-33111 | HOUSING | 65001-69331 |
