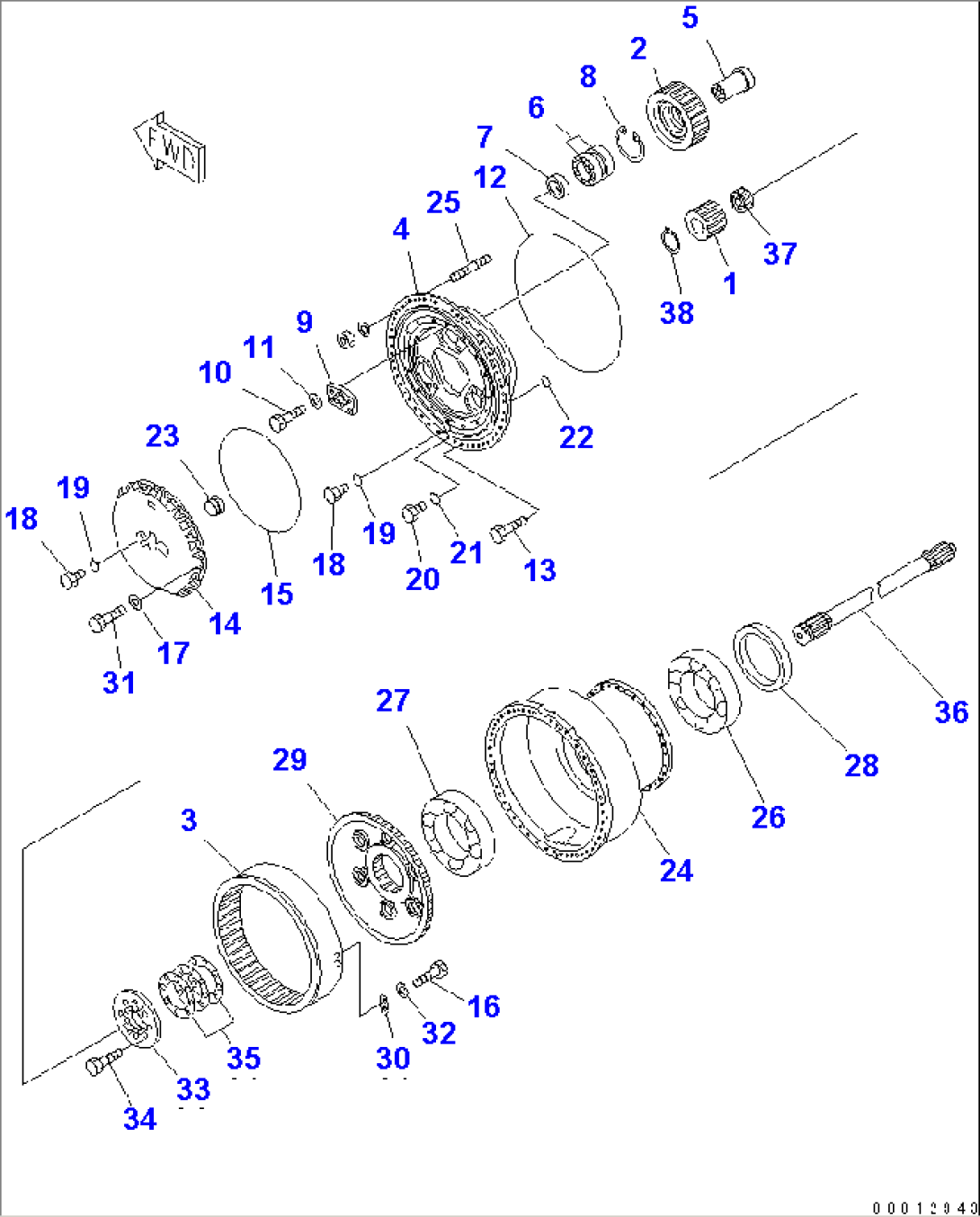

REAR AXLE (FINAL DRIVE)

Item	Part No.	Part Name	Qty	Serial No.
	427-23-20000	AXLE ASS'Y,REAR		50001-
	427-23-20060	AXLE ASS'Y		50001-
		THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F4500-01A0 TO F4500-05A0.
	427-22-12002	.FINAL DRIVE ASS'Y		50001-
1	427-22-12421	..GEAR		50001-
2	427-22-12530	..GEAR		50001-
3	427-22-12541	..GEAR		50001-
4	427-22-12611	..CARRIER		50001-
5	427-22-12511	..SHAFT		50001-
6	427-22-12520	..BEARING		50001-
7	427-22-12570	..SPACER		50001-
8	04071-00180	..RING,SNAP		50001-
9	427-22-12560	..HOLDER		50001-
10	01010-31660	..BOLT		50001-
11	01643-31645	..WASHER		50001-
12	562-22-12920	..O-RING		50001-
13	01252-31225	..BOLT		50001-
14	427-22-12623	..COVER		50001-
15	281-09-11110	..O-RING		50001-
16	427-22-12590	..BOLT		50001-
17	01643-31232	..WASHER		50001-
18	07044-13620	..PLUG		50001-
19	07002-13634	..O-RING		50001-
20	07044-12412	..PLUG		50001-
21	07002-12434	..O-RING		50001-
22	07000-13028	..O-RING		50001-
23	562-22-12630	..BUTTON		50001-
24	427-22-12713	HUB		51002-
	\0\427-22-12712	..HUB		50001-51001
25	01145-62405	..STUD		50001-
26	568-22-12940	..BEARING		50001-
27	568-22-12960	..BEARING		50001-
28	427-22-12130	..RETAINER		50001-
29	561-22-62311	..HUB		50001-
30	427-22-12340	..HOLDER		50001-
31	01010-61235	..BOLT		.-
	\0\01010-31235	..BOLT		50001-.
32	01643-31232	..WASHER		50001-
33	427-22-12211	..RETAINER		50001-
34	01010-62495	..BOLT		50001-
35	427-22-12230	..SHIMÂ¤ 1.0MM		50001-
	427-22-12240	..SHIMÂ¤ 0.3MM		50001-
	427-22-12250	..SHIMÂ¤ 0.2MM		50001-
36	427-22-12411	..SHAFT		50001-
37	427-22-12430	..SPACER		50001-
38	561-22-32810	..RING,SNAP		50001-
