| Item | Part No. | Part Name | Qty | Serial No. |
| 418-23-47010 | AXLE ASS'Y | 69378- | ||
| 418-23-30050 | AXLE ASS'Y,REAR (LSD) | 65001-69377 | ||

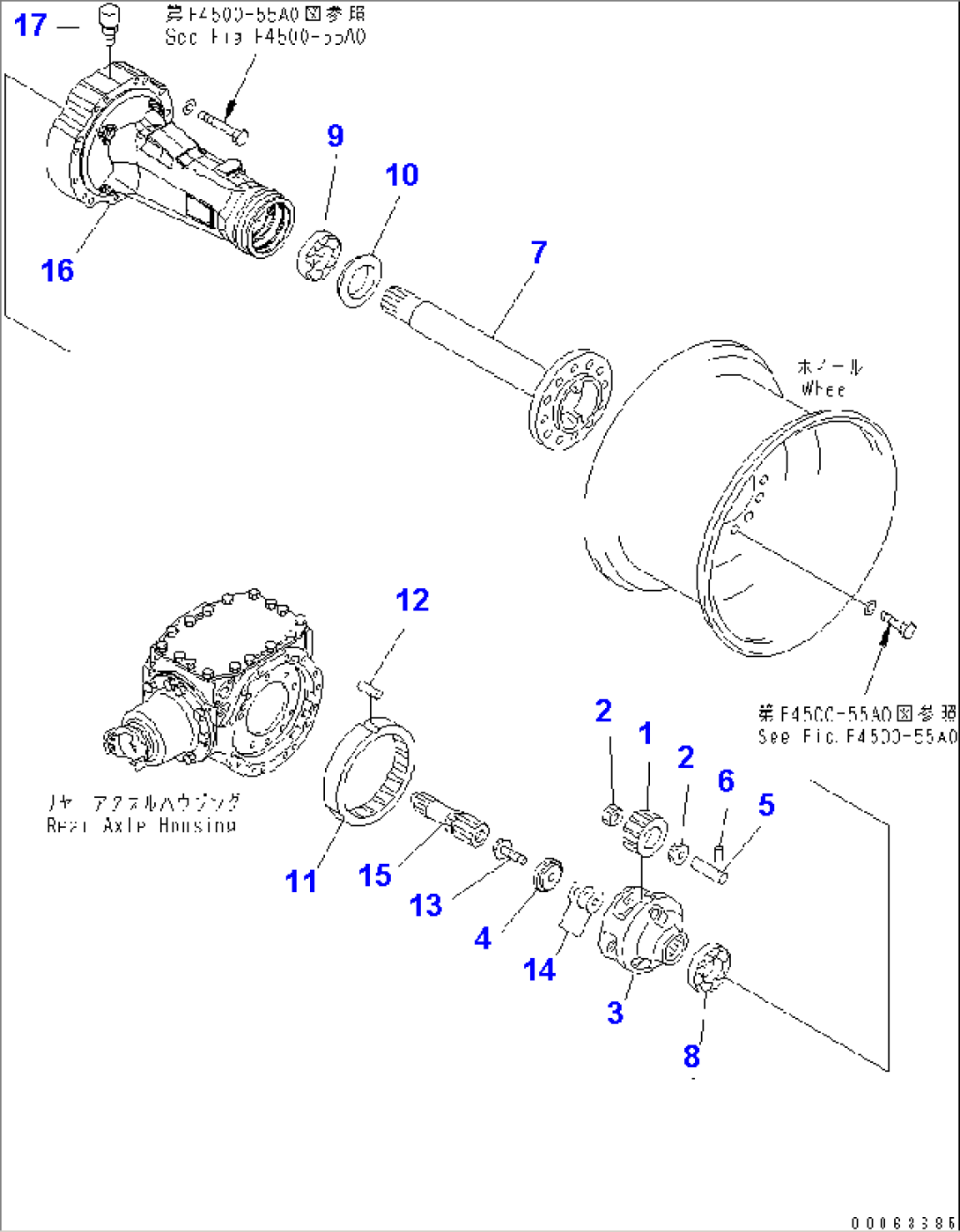

| THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4500-51A0 TO F4500-55A0. | ||||
| 418-23-32070 | FINAL ASS'Y | 65001- | ||
| 1 | 418-22-22532 | GEAR | 65001- | |
| 2 | 417-22-22810 | BEARING,CONE | 65001- | |
| 3 | 418-23-32611 | CARRIER | 65001- | |
| 4 | 418-22-32810 | HOLDER | 65001- | |
| 5 | 419-22-12510 | SHAFT | 65001- | |
| 6 | 419-22-12570 | PIN | 65001- | |
| 7 | 418-23-32961 | SHAFT | 65001- | |
| 7 | (\2\418-23-32960) | SHAFT | (65001-69298) | |
| 8 | 418-22-12840 | BEARING | 65001- | |
| 9 | 418-22-12850 | BEARING | 65001- | |
| 10 | 418-22-12460 | SEAL | 65001- | |
| 11 | 418-22-12542 | GEAR | 69299- | |
| 11 | 418-22-12541 | GEAR | 65001-69298 | |
| 12 | 417-22-12580 | PIN | 65001- | |
| 13 | 01438-02000 | BOLT | 65001- | |
| 14 | 418-22-21460 | SHIM, 0.05MM | 65001- | |
| 14 | 418-22-21470 | SHIM, 0.2MM | 65001- | |
| 14 | 418-22-21480 | SHIM, 0.5MM | 65001- | |
| 15 | 418-22-32421 | SHAFT | 65001- | |
| 16 | 418-23-33810 | HOUSING | 65001- | |
| 17 | 07030-01030 | BREATHER | 65001- |
