| Item | Part No. | Part Name | Qty | Serial No. |

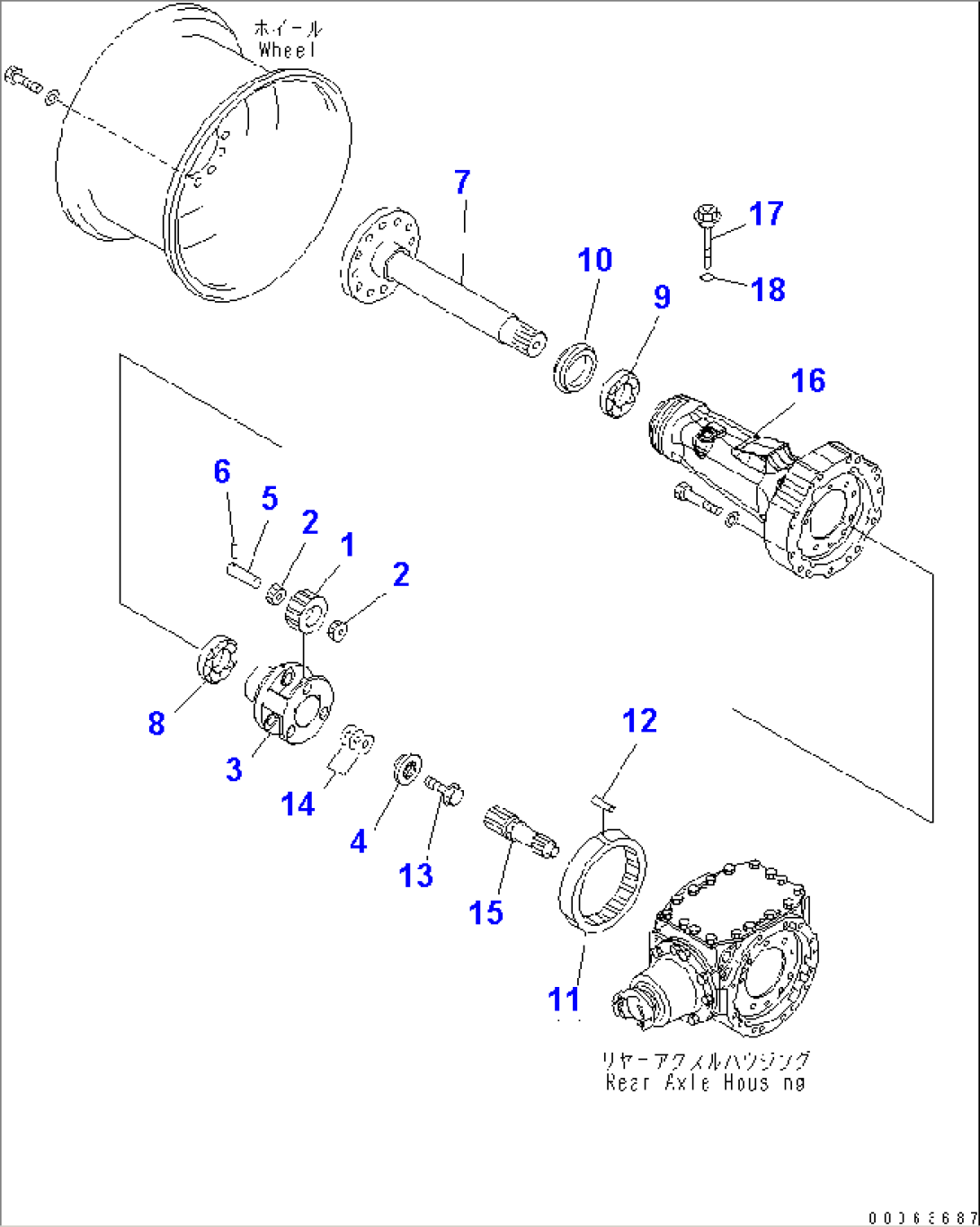

| (418-23-30001) | AXLE ASSEMBLY,REAR | 70136-70342 | ||
| 418-23-32030 | FINAL ASSEMBLY,RHS | 70136-70342 | ||
| 1 | 418-22-22532 | GEAR | 70136-70342 | |
| 2 | 417-22-22810 | BEARING,CONE | 70136-70342 | |
| 3 | 418-23-32611 | CARRIER | 70136-70342 | |
| 4 | 418-22-32810 | HOLDER | 70136-70342 | |
| 5 | 419-22-12510 | SHAFT | 70136-70342 | |
| 6 | 419-22-12570 | PIN | 70136-70342 | |
| 7 | 418-23-H2961 | SHAFT | 70136-70342 | |
| 8 | 418-22-12840 | BEARING | 70136-70342 | |
| 9 | 418-22-12850 | BEARING | 70136-70342 | |
| 10 | 418-22-12460 | SEAL | 70136-70342 | |
| 11 | 418-22-12541 | GEAR | 70136-70342 | |
| 12 | 417-22-12580 | PIN | 70136-70342 | |
| 13 | 01438-02000 | BOLT | 70136-70342 | |
| 14 | 418-22-21460 | SHIM, 0.05MM | 70136-70342 | |
| 14 | 418-22-21470 | SHIM, 0.2MM | 70136-70342 | |
| 14 | 418-22-21480 | SHIM, 0.5MM | 70136-70342 | |
| 15 | 418-23-32421 | SHAFT | 70136-70342 | |
| 16 | 418-23-33820 | HOUSING,RHS | 70136-70342 | |
| 17 | 417-22-23250 | PLUG | 70136-70342 | |
| 18 | 07002-13034 | O-RING | 70136-70342 |
