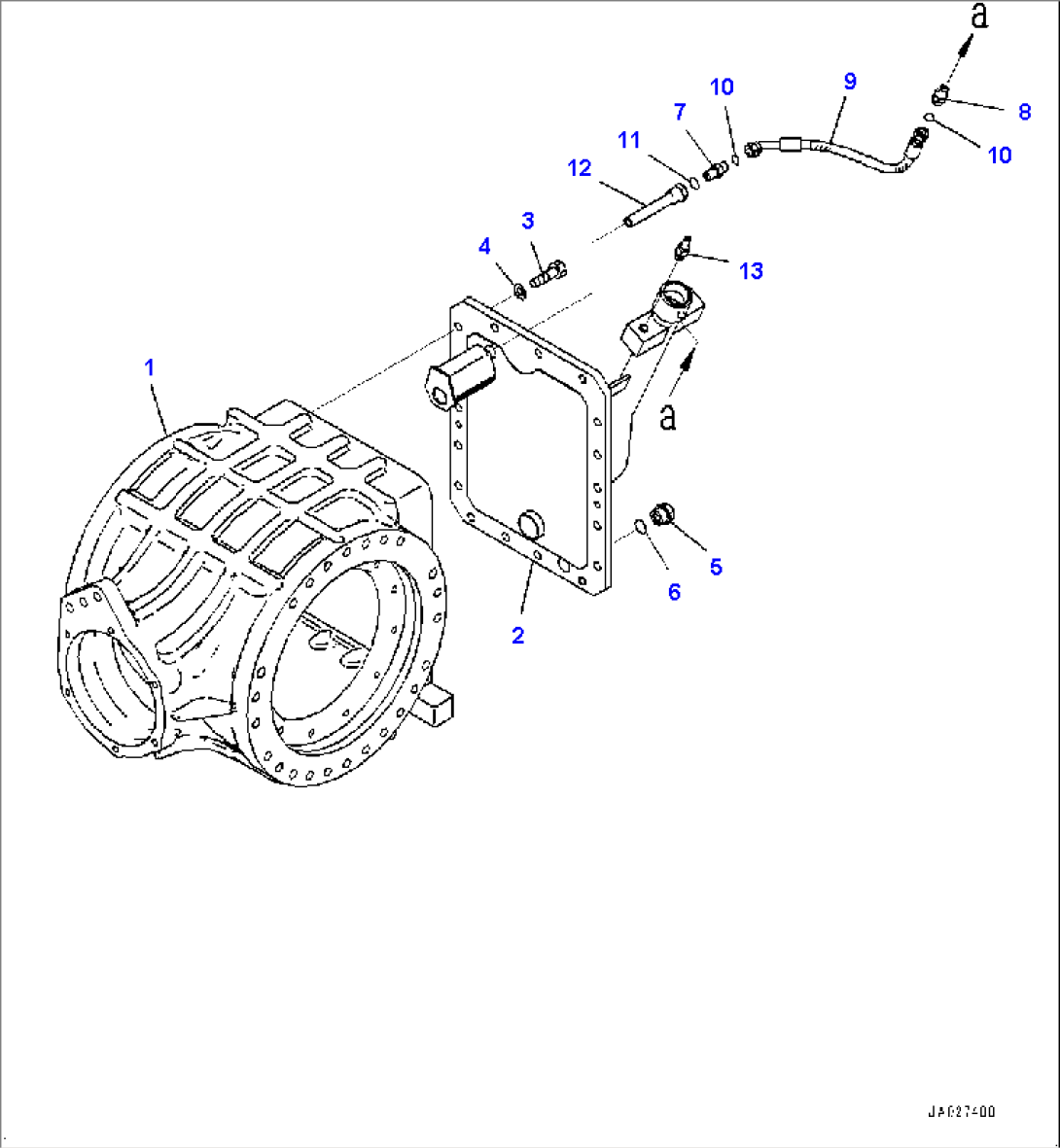

| Item | Part No. | Part Name | Qty | Serial No. |
| 23H-22-10101 | Axle Assembly | 1017- | ||
| 23H-22-11001 | Final Drive Assembly | 1017- | ||
| 1 | 23H-22-11511 | Case | 1017- | |
| 2 | 23H-22-12120 | Cover | 1001- | |
| 3 | 01010-61240 | Bolt | 1001- | |
| 4 | 01643-01232 | Washer, Flat | 1001- | |
| 5 | 07044-12412 | Plug | 1001- | |
| 6 | 07002-22434 | O-ring | 1001- | |
| 7 | 02781-0021D | Union | 1001- | |
| 8 | 56B-43-17210 | Nipple | 1001- | |
| 9 | 23H-60-14450 | Hose | 1001- | |
| 10 | 02896-21008 | O-ring | 1001- | |
| 11 | 07002-21423 | O-ring | 1001- | |
| 12 | 23C-22-51260 | Adapter | 1001- | |
| 13 | 22T-49-12261 | Nipple | 1001- |
