| Item | Part No. | Part Name | Qty | Serial No. |

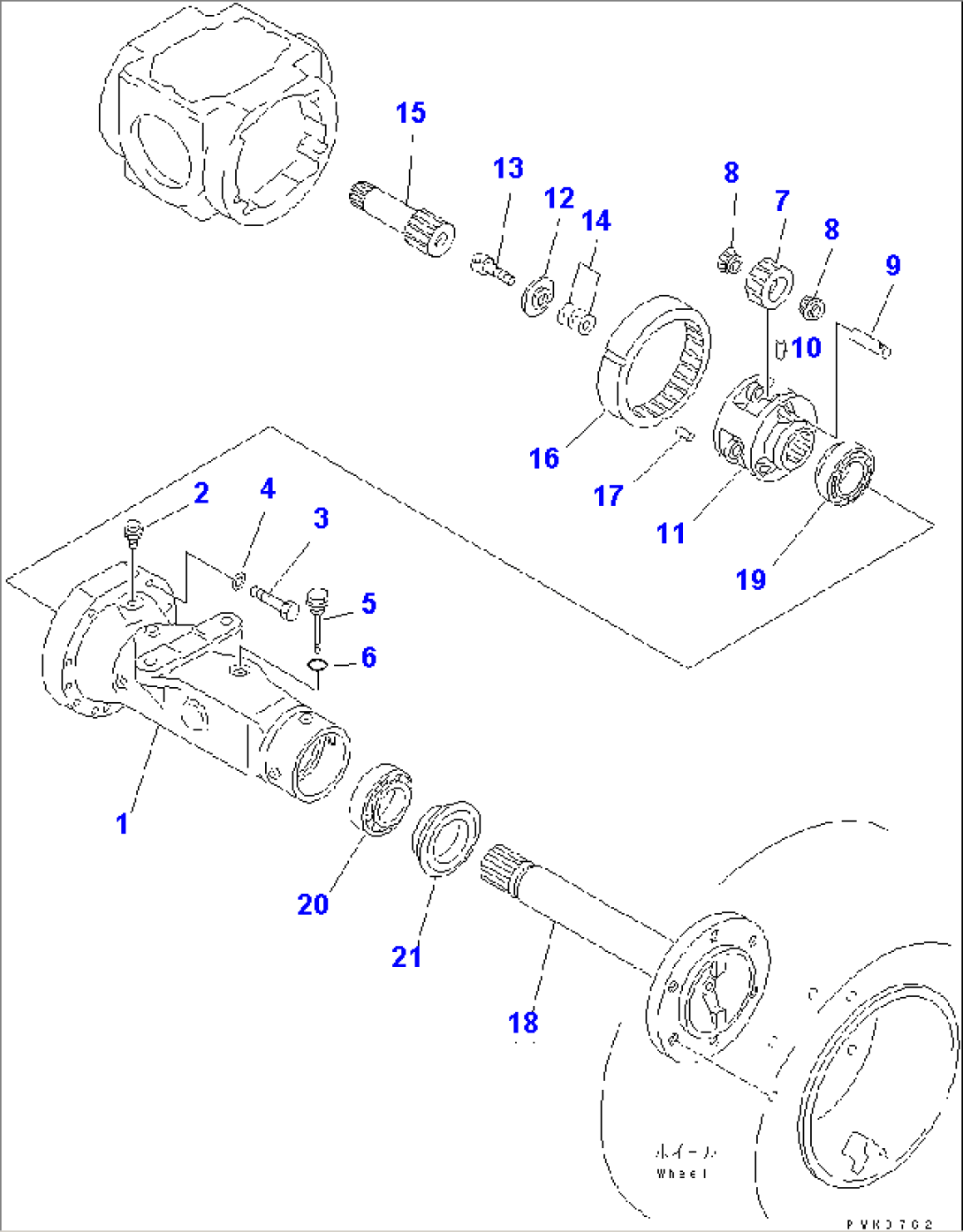

| (42A-23-20000) | REAR AXLE ASS'Y | 23001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F4530-51A0 TO F4530-53A0. | ||||
| 1 | 363-23-33210 | HOUSING,L.H. | 23001- | |
| 2 | 07030-01030 | BREATHER | 23001- | |
| 3 | 01010-61265 | BOLT | 23001- | |
| 4 | 01643-31232 | WASHER | 23001- | |
| 5 | 363-22-33150 | PLUG | 23001- | |
| 6 | 07002-12434 | O-RING | 23001- | |
| 7 | 363-22-32530 | GEAR,PLANETARY | 23001- | |
| 8 | 363-22-32810 | BEARING | 23001- | |
| 9 | 363-22-32510 | SHAFT | 23001- | |
| 10 | 04025-00612 | PIN,SPRING | 23001- | |
| 11 | 363-22-32610 | CARRIER | 23001- | |
| 12 | 363-22-32251 | HOLDER | 23001- | |
| 13 | 706-77-40310 | BOLT | 23001- | |
| 14 | 363-22-32270 | SHIM, 0.05MM | 23001- | |
| 14 | 363-22-32280 | SHIM, 0.2MM | 23001- | |
| 14 | 363-22-32290 | SHIM, 0.5MM | 23001- | |
| 15 | 363-22-32421 | SHAFT | 23001- | |
| 16 | 363-22-32540 | GEAR,RING | 23001- | |
| 17 | 363-22-32580 | PIN | 23001- | |
| 18 | 42A-22-22410 | SHAFT | 23001- | |
| 19 | 415-22-11850 | BEARING | 23001- | |
| 20 | 415-22-12840 | BEARING | 23001- | |
| 21 | 363-22-32460 | SEAL | 23001- |
