| Item | Part No. | Part Name | Qty | Serial No. |
| (426-23-20060) | REAR AXLE ASS'Y | 52019- | ||

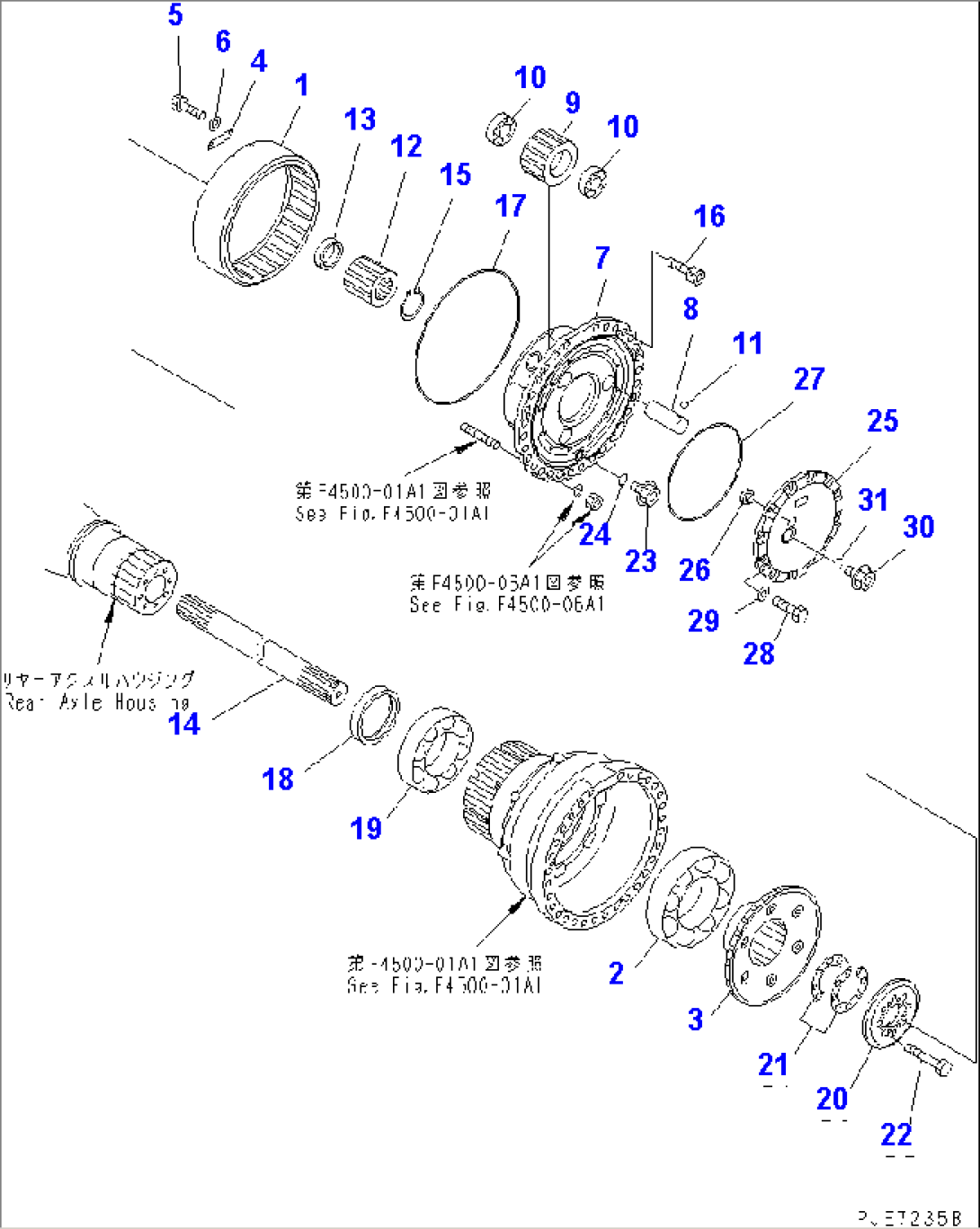

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F4500-01A1 TO F4500-05A1. | ||||
| 426-22-22020 | FINAL DRIVE ASS'Y | .- | ||
| 1 | 426-22-12540 | GEAR | .- | |
| 2 | 426-22-12850 | BEARING | .- | |
| 3 | 426-22-12310 | HUB | .- | |
| 4 | 566-22-12560 | PLATE,LOCK | .- | |
| 5 | 01010-60820 | BOLT | .- | |
| 6 | 01643-30823 | WASHER | .- | |
| 7 | 426-22-12611 | CARRIER | .- | |
| 8 | 426-22-12510 | SHAFT | .- | |
| 9 | 426-22-22531 | GEAR | .- | |
| 10 | 426-22-22520 | BEARING | .- | |
| 11 | 04260-01587 | BALL | .- | |
| 12 | 426-22-12421 | GEAR | .- | |
| 13 | 426-22-12430 | SPACER | .- | |
| 14 | 426-22-22411 | SHAFT | .- | |
| 15 | 04064-08530 | RING,SNAP | .- | |
| 16 | 01252-31230 | BOLT | .- | |
| 17 | 07000-15490 | O-RING | .- | |
| 18 | 426-22-22130 | RETAINER | .- | |
| 19 | 426-22-22810 | BEARING | .- | |
| 20 | 426-22-12210 | RETAINER | .- | |
| 21 | 426-22-12230 | SHIM, 1.0MM | .- | |
| 21 | 426-22-12240 | SHIM, 0.3MM | .- | |
| 21 | 426-22-12250 | SHIM, 0.2MM | .- | |
| 22 | 01010-31665 | BOLT | .- | |
| 23 | 07044-12412 | PLUG | .- | |
| 24 | 07002-12434 | O-RING | .- | |
| 25 | 426-22-12621 | COVER | .- | |
| 26 | 286-22-12630 | BUTTON | .- | |
| 27 | 07000-15345 | O-RING | .- | |
| 28 | 01010-31230 | BOLT | .- | |
| 29 | 01643-31232 | WASHER | .- | |
| 30 | 07044-13620 | PLUG | .- | |
| 31 | 07002-13634 | O-RING | .- |
