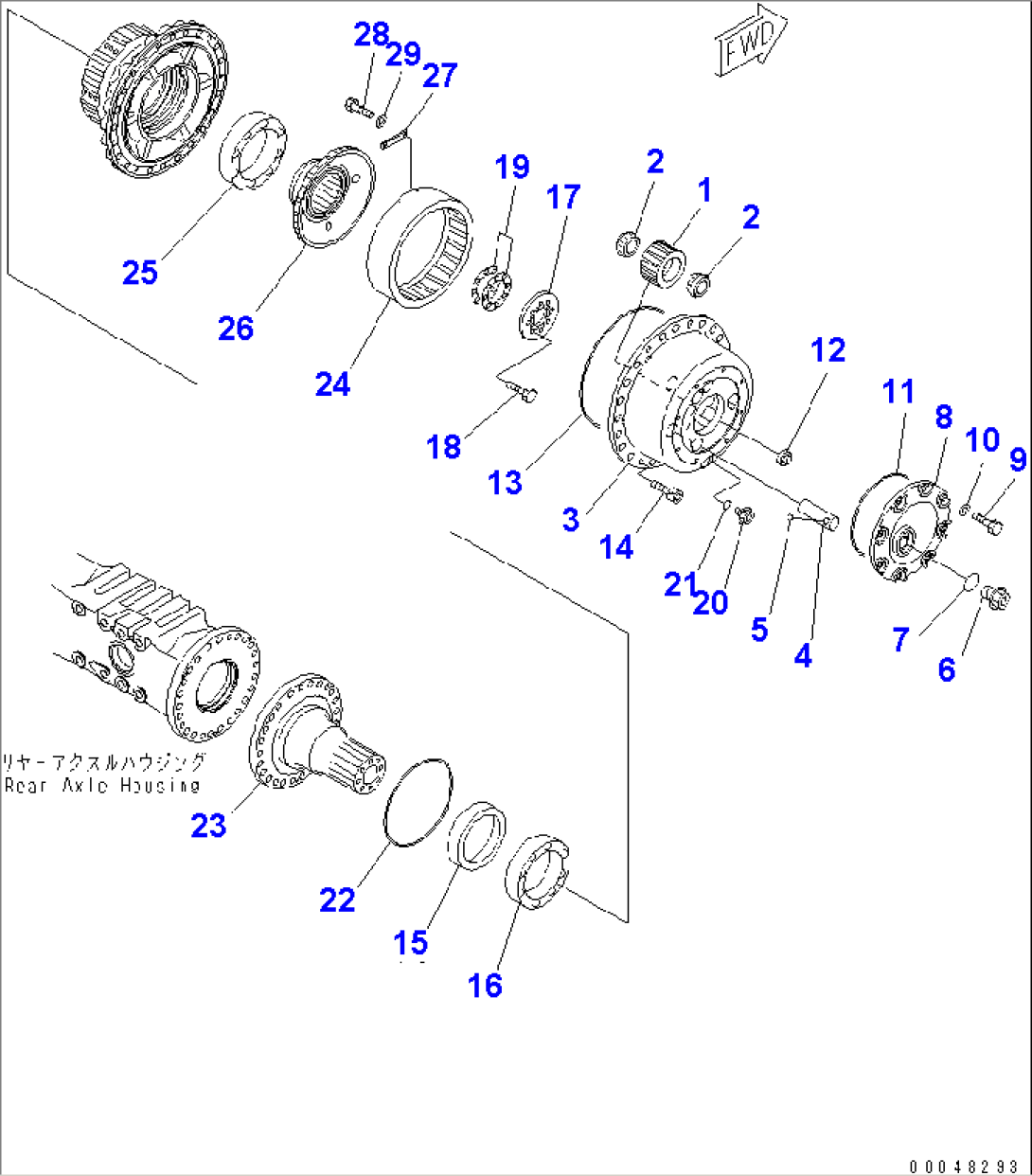

| Item | Part No. | Part Name | Qty | Serial No. |
| (56B-22-20005) | AXLE ASS'Y | 2629- | ||
| (56B-22-20004) | AXLE ASS'Y | 2462-2628 | ||
| (\1\56B-22-20003) | AXLE ASS'Y | 2001-2461 | ||
| (\2\56B-22-20002) | AXLE ASS'Y | (2001-2430) | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F3560-01A0 TO F3560-12A0. | ||||
| (56B-22-22003) | FINAL DRIVE ASS'Y | 2001- | ||
| (\2\56B-22-22002) | FINAL DRIVE ASS'Y | (2001-2430) | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F3560-04A0 TO F3560-11A0. | ||||
| 56B-22-24051 | BRAKE ASS'Y | 2001- | ||
| (\2\56B-22-24050) | BRAKE ASS'Y | (2001-2430) | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F3560-08A0 TO F3560-11A0. | ||||
| 1 | 56B-22-12530 | GEAR,PLANET | 2001- | |
| 2 | 421-22-12770 | BEARING | 2001- | |
| 3 | 56B-22-12610 | CARRIER | 2001- | |
| 4 | 424-22-12510 | SHAFT | 2001- | |
| 5 | 04260-01587 | BALL | 2001- | |
| 6 | 07044-13620 | PLUG | 2001- | |
| 7 | 07002-13634 | O-RING | 2001- | |
| 8 | 56B-22-12621 | COVER | 2001- | |
| 9 | 01010-61235 | BOLT | 2001- | |
| 10 | 01643-31232 | WASHER | 2001- | |
| 11 | 07000-15280 | O-RING | 2001- | |
| 12 | 286-22-12630 | BUTTON | 2001- | |
| 13 | 07000-15410 | O-RING | 2001- | |
| 14 | 01252-41025 | BOLT | 2001- | |
| 15 | 56B-22-12631 | RETAINER | 2001- | |
| 16 | 23W-22-22350 | BEARING | 2001- | |
| 17 | 421-22-12220 | RETAINER | 2001- | |
| 18 | 01010-61450 | BOLT | 2001- | |
| 19 | 421-22-12190 | SHIM, 1.0MM | 2001- | |
| 19 | 421-22-12180 | SHIM, 0.5MM | 2001- | |
| 19 | 421-22-12170 | SHIM, 0.2MM | 2001- | |
| 19 | 421-22-12160 | SHIM, 0.05MM | 2001- | |
| 20 | 07044-12412 | PLUG | 2001- | |
| 21 | 07002-12434 | O-RING | 2001- | |
| 22 | 07000-15300 | O-RING | 2001- | |
| 23 | 56B-22-13210 | TUBE | 2001- | |
| 24 | 56B-22-12541 | RING,GEAR | 2001- | |
| 25 | 421-22-12790 | BEARING | 2001- | |
| 26 | 56B-22-12341 | HUB | 2001- | |
| 27 | 421-22-12360 | PLATE | 2001- | |
| 28 | 01010-60820 | BOLT | 2001- | |
| 29 | 01643-30823 | WASHER | 2001- |
