| Item | Part No. | Part Name | Qty | Serial No. |
| 421-23-30132 | AXLE ASS'Y | 90001- | ||
| 421-23-30121 | AXLE ASS'Y | 85001-90000 | ||
| 421-23-30182 | AXLE ASS'Y | 90001- | ||
| 421-23-30171 | AXLE ASS'Y | 85001-90000 | ||

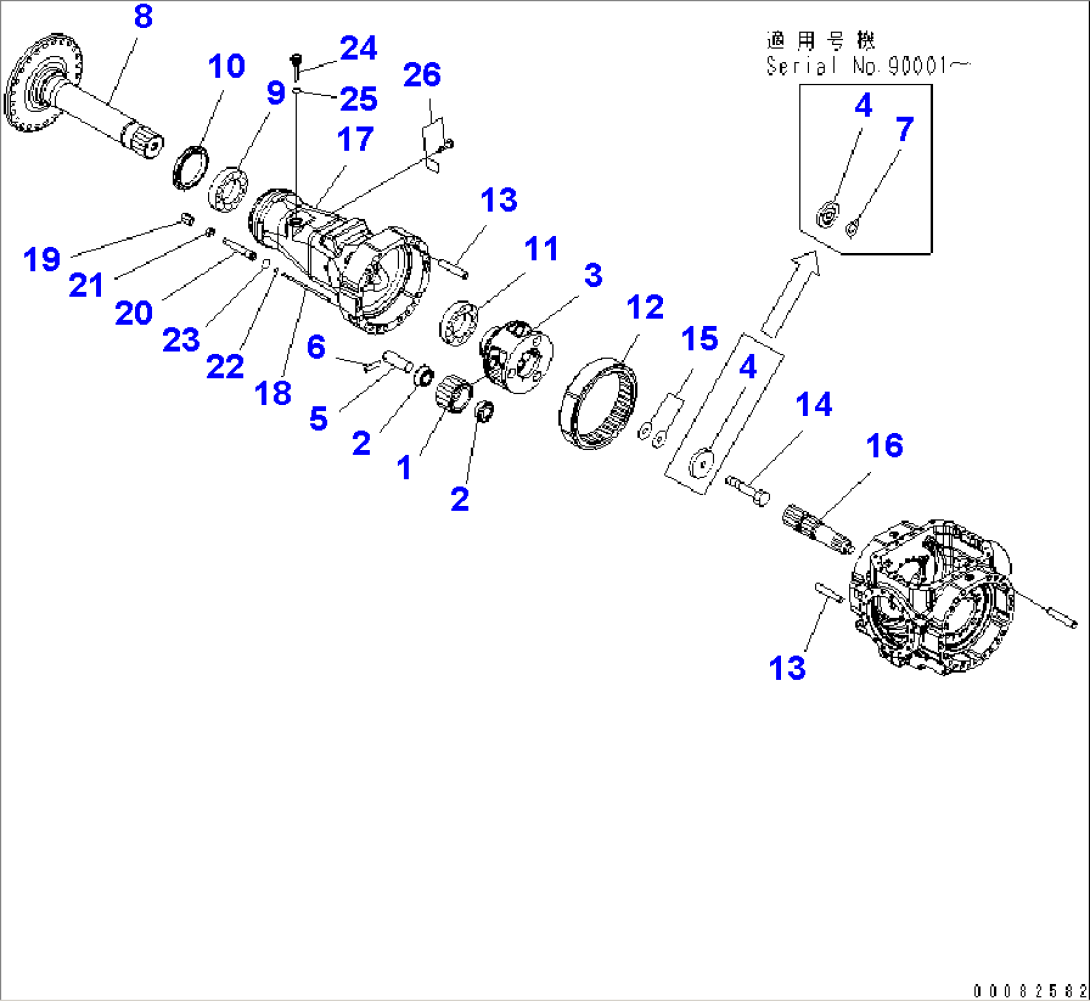

| THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4500-51B0 TO F4500-57B0. | ||||
| 421-23-32231 | FINAL DRIVE ASS'Y,R.H. | 90001- | ||
| 421-23-32130 | FINAL DRIVE ASS'Y,R.H. | 85001-90000 | ||
| 1 | 421-22-32930 | GEAR | 85001- | |
| 2 | 421-22-32810 | BEARING | 85001- | |
| 3 | 421-22-32680 | CARRIER | 85001- | |
| 4 | 421-22-32330 | WASHER | 90001- | |
| 4 | 421-22-32352 | WASHER | 85001-90000 | |
| 5 | 421-22-32911 | SHAFT | 85001- | |
| 6 | 421-22-32570 | PIN | 85001- | |
| 7 | 421-22-32550 | WASHER | 90001- | |
| 8 | 421-22-32731 | SHAFT | 85001- | |
| 8 | (\2\421-22-32730) | SHAFT,AXLE | (85001-90215) | |
| 9 | 421-22-32860 | BEARING | 85001- | |
| 10 | 421-22-32760 | SEAL | 85001- | |
| 11 | 421-22-32870 | BEARING | 85001- | |
| 12 | 421-22-32942 | GEAR,RING | 85001- | |
| 13 | 419-22-12581 | PIN,DOWEL | 85001- | |
| 14 | 421-22-32250 | BOLT | 90001- | |
| 14 | 01011-62420 | BOLT | 85001-90000 | |
| 15 | 421-22-32470 | SHIM, 0.05MM | 85001- | |
| 15 | 421-22-32480 | SHIM, 0.2MM | 85001- | |
| 15 | 421-22-32490 | SHIM, 0.5MM | 85001- | |
| 16 | 421-22-32771 | SHAFT | 90001- | |
| 16 | 421-22-32740 | SHAFT | 85001-90000 | |
| 17 | 421-23-33970 | HOUSING,R.H. | 85001- | |
| 18 | 421-33-31770 | SHAFT | 85001- | |
| 19 | 421-33-31730 | CAP | 85001- | |
| 20 | 421-33-31721 | GUIDE | 85001- | |
| 21 | 01583-11610 | NUT | 85001- | |
| 22 | 07000-11005 | O-RING | 85001- | |
| 23 | 07000-12018 | O-RING | 85001- | |
| 24 | 424-22-33250 | PLUG | 85001- | |
| 25 | 07002-13634 | O-RING | 85001- | |
| 26 | 815-02-10110 | PLATE, NAME,(LIMITED SUPPLY) | 85001- | |
| 26 | 04418-13060 | SCREW | 85001- |
