| Item | Part No. | Part Name | Qty | Serial No. |

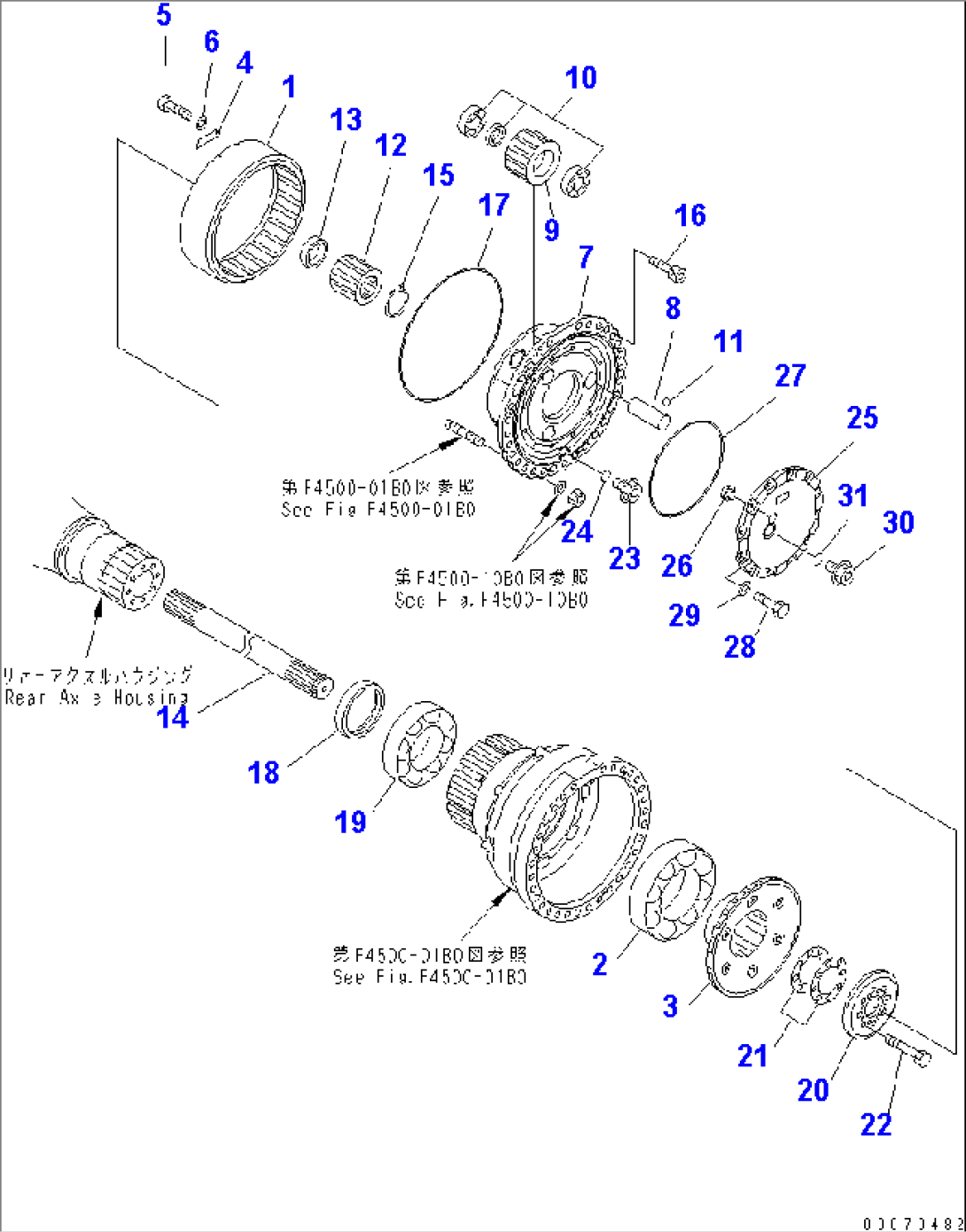

| (426-23-20010) | REAR AXLE ASS'Y | 52406- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F4500-01B0 TO F4500-05B0. | ||||
| 426-22-22020 | FINAL DRIVE ASS'Y | 52406- | ||
| 1 | 426-22-12540 | GEAR | 52406- | |
| 2 | 426-22-12850 | BEARING | 52406- | |
| 3 | 426-22-12310 | HUB | 52406- | |
| 4 | 566-22-12560 | PLATE,LOCK | 52406- | |
| 5 | 01010-60820 | BOLT | 52406- | |
| 6 | 01643-30823 | WASHER | 52406- | |
| 7 | 426-22-12611 | CARRIER | 52406- | |
| 8 | 426-22-12510 | SHAFT | 52406- | |
| 9 | 426-22-22531 | GEAR | 52406- | |
| 10 | 426-22-22520 | BEARING | 52406- | |
| 11 | 04260-01587 | BALL | 52406- | |
| 12 | 426-22-12421 | GEAR | 52406- | |
| 13 | 426-22-12430 | SPACER | 52406- | |
| 14 | 426-22-22411 | SHAFT | 52406- | |
| 15 | 04064-08530 | RING,SNAP | 52406- | |
| 16 | 01252-31230 | BOLT | 52406- | |
| 17 | 07000-15490 | O-RING | 52406- | |
| 18 | 426-22-22130 | RETAINER | 52406- | |
| 19 | 426-22-22810 | BEARING | 52406- | |
| 20 | 426-22-12210 | RETAINER | 52406- | |
| 21 | 426-22-12230 | SHIM, 1.0MM | 52406- | |
| 21 | 426-22-12240 | SHIM, 0.3MM | 52406- | |
| 21 | 426-22-12250 | SHIM, 0.2MM | 52406- | |
| 22 | 01010-61665 | BOLT | 52585- | |
| 22 | 01010-31665 | BOLT | 52406-52584 | |
| 23 | 07044-12412 | PLUG | 52406- | |
| 24 | 07002-12434 | O-RING | 52406- | |
| 25 | 426-22-12621 | COVER | 52406- | |
| 26 | 286-22-12630 | BUTTON | 52406- | |
| 27 | 07000-15345 | O-RING | 52406- | |
| 28 | 01010-61230 | BOLT | 52585- | |
| 28 | 01010-31230 | BOLT | 52406-52584 | |
| 29 | 01643-31232 | WASHER | 52406- | |
| 30 | 07044-13620 | PLUG | 52406- | |
| 31 | 07002-13634 | O-RING | 52406- |
