| Item | Part No. | Part Name | Qty | Serial No. |
| (566-22-80001) | REAR AXLE ASS'Y | .- | ||
| (566-22-80000) | REAR AXLE ASS'Y | 7001-. | ||
| (566-22-80011) | REAR AXLE ASS'Y | .- | ||
| (566-22-80010) | REAR AXLE ASS'Y | 7001-. | ||
| (566-22-80202) | REAR AXLE ASS'Y | 7001- | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F3500-01A0 TO F3500-06A0. | ||||

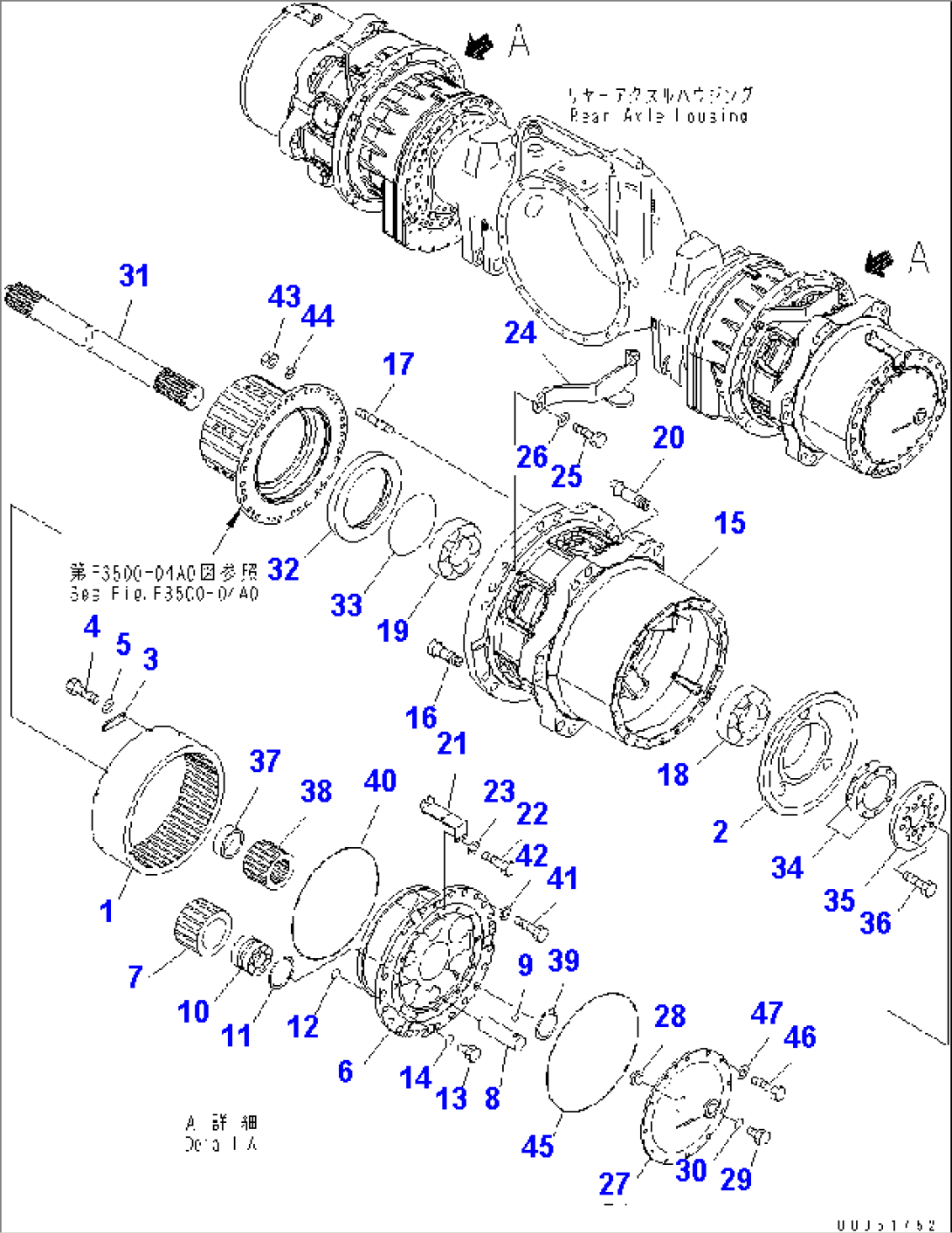

| 566-22-82002 | FINAL DRIVE ASS'Y | 7001- | ||
| 1 | 566-22-12543 | GEAR | 7001- | |
| 2 | 566-22-12311 | HUB | 7001- | |
| 3 | 566-22-12561 | HOLDER | 7001- | |
| 4 | 01010-60820 | BOLT | 7001- | |
| 5 | 01643-50823 | WASHER | 7001- | |
| 6 | 566-22-45610 | CARRIER | 7001- | |
| 7 | 566-22-72531 | GEAR | 7001- | |
| 8 | 426-22-12510 | SHAFT | 7001- | |
| 9 | 04260-01587 | BALL | 7001- | |
| 10 | 426-22-12520 | BEARING | 7001- | |
| 11 | 426-22-12910 | RING,SNAP | 7001- | |
| 12 | 07000-12021 | O-RING | 7001- | |
| 13 | 566-22-42490 | PLUG | 7001- | |
| 14 | 07002-11623 | O-RING | 7001- | |
| 15 | 566-22-82714 | HUB | 7001- | |
| 16 | 569-22-72860 | BOLT | 7001- | |
| 17 | 01144-81440 | STUD | 7001- | |
| 18 | 566-22-12190 | BEARING | 7001- | |
| 19 | 566-22-12180 | BEARING | 7001- | |
| 20 | 569-22-72850 | BOLT | 7001- | |
| 21 | 566-22-82742 | PLATE | 7001- | |
| 22 | 01010-61220 | BOLT | 7001- | |
| 23 | 01643-31232 | WASHER | 7001- | |
| 24 | 566-22-82750 | COVER | 7001- | |
| 25 | 01010-61645 | BOLT | 7001- | |
| 26 | 01643-51645 | WASHER | 7001- | |
| 27 | 566-22-82620 | COVER | 7001- | |
| 28 | 566-22-82630 | BUTTON | 7001- | |
| 29 | 07044-13620 | PLUG | 7001- | |
| 30 | 07002-13634 | O-RING | 7001- | |
| 31 | 566-22-82410 | SHAFT | 7001- | |
| 32 | 566-22-42140 | RETAINER | 7001- | |
| 33 | 07000-15220 | O-RING | 7001- | |
| 34 | 566-22-00112 | SHIM ASS'Y | 7001- | |
| 34 | 566-22-12230 | SHIM, 1.0MM | 7001- | |
| 34 | 566-22-12260 | SHIM, 0.3MM | 7001- | |
| 34 | 566-22-12250 | SHIM, 0.2MM | 7001- | |
| 34 | 566-22-72260 | SHIM, 0.05MM | 7001- | |
| 35 | 566-22-12212 | RETAINER | 7001- | |
| 36 | 01010-61645 | BOLT | 7001- | |
| 37 | 566-22-12441 | SPACER | 7001- | |
| 38 | 566-22-12450 | GEAR | 7001- | |
| 39 | 04064-08530 | RING,SNAP | 7001- | |
| 40 | 07000-15460 | O-RING | 7001- | |
| 41 | 01010-62055 | BOLT | 7001- | |
| 42 | 01602-22060 | WASHER | 7001- | |
| 43 | 01580-01411 | NUT | 7001- | |
| 44 | 01643-31445 | WASHER | 7001- | |
| 45 | 07000-05355 | O-RING | 7001- | |
| 46 | 01010-81230 | BOLT | 7001- | |
| 47 | 01643-51232 | WASHER | 7001- |
