| Item | Part No. | Part Name | Qty | Serial No. |
| 427-23-10001 | REAR AXLE ASS'Y | 10001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.3201 TO 3231. | ||||

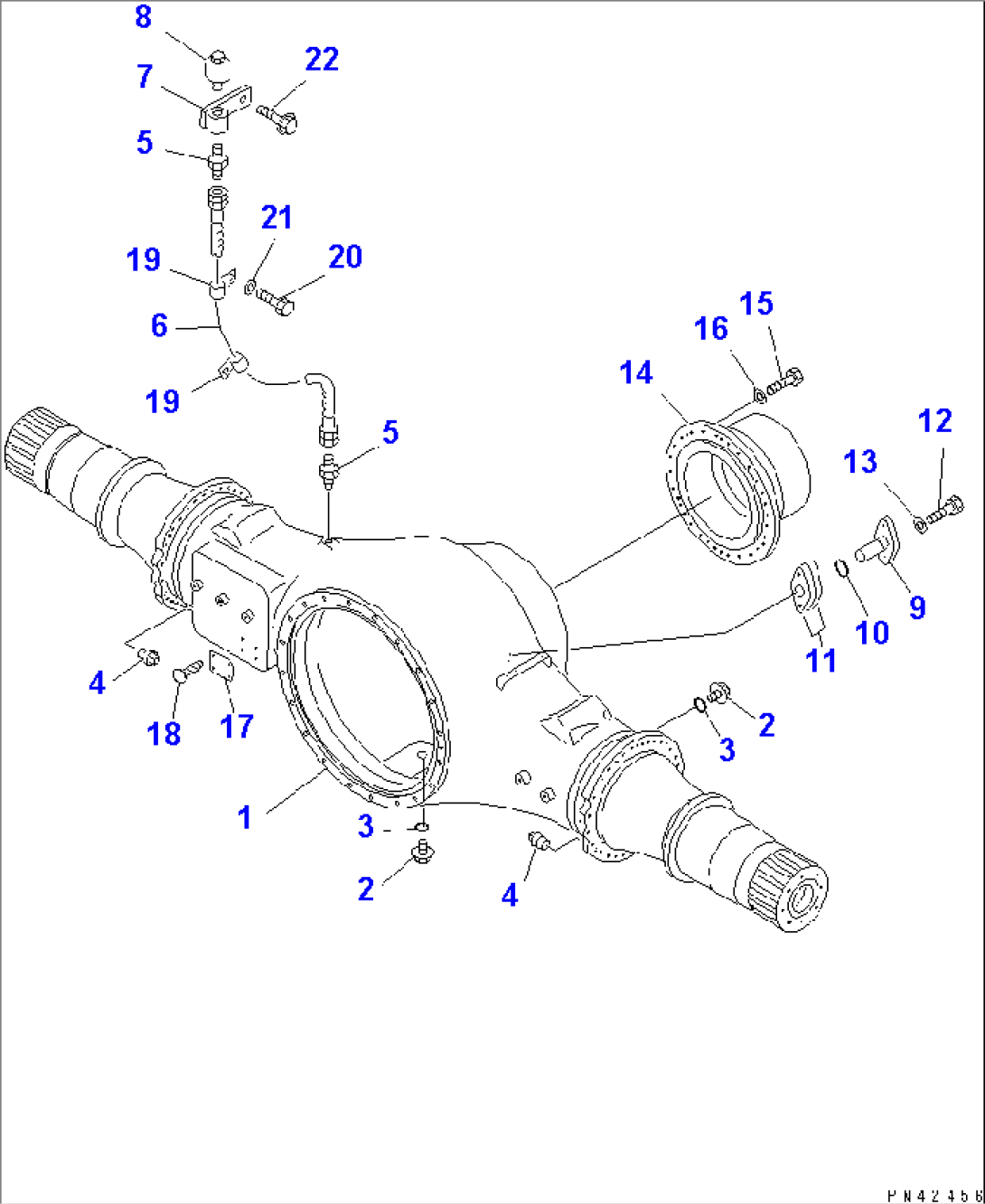

| 427-23-13001 | HOUSING ASS'Y | 10001- | ||
| 1 | 427-23-13101 | HOUSING | 10001- | |
| 2 | 07044-13620 | PLUG | 10001- | |
| 3 | 07002-13634 | O-RING | 10001- | |
| 4 | 07042-20312 | PLUG | 10001- | |
| 5 | 566-35-14340 | NIPPLE | 10001- | |
| 6 | 07102-20315 | HOSE | 10001- | |
| 7 | 427-23-13410 | JOINT | 10001- | |
| 8 | 07030-00252 | BREATHER | 10001- | |
| 9 | 427-22-13510 | SHAFT | 10001- | |
| 10 | 07000-13035 | O-RING | 10001- | |
| 11 | 427-22-00080 | SHIM KIT | 10001- | |
| \6\ | SHIM¤ 0.2MM | 10001- | ||
| \6\ | SHIM¤ 0.3MM | 10001- | ||
| \6\ | SHIM¤ 1.0MM | 10001- | ||
| 12 | 01010-61645 | BOLT | 10001- | |
| 13 | 01643-31645 | WASHER | 10001- | |
| 14 | 427-23-13311 | SUPPORT | 10001- | |
| 15 | 01010-62465 | BOLT | 10001- | |
| 16 | 01643-32460 | WASHER | 10001- | |
| 17 | 815-02-10110 | PLATE¤ NAME,(LIMITED SUPPLY) | 10001- | |
| (\2\569-22-13291) | PLATE¤ NAME,(LIMITED SUPPLY) | (10001-10544) | ||
| 18 | 04418-13060 | SCREW | 10001- | |
| 19 | 08036-01814 | CLIP | 10001- | |
| 20 | 01010-81020 | BOLT | 10001- | |
| 21 | 01643-31032 | WASHER | 10001- | |
| 22 | 01435-01020 | BOLT | 10001- |
