| Item | Part No. | Part Name | Qty | Serial No. |

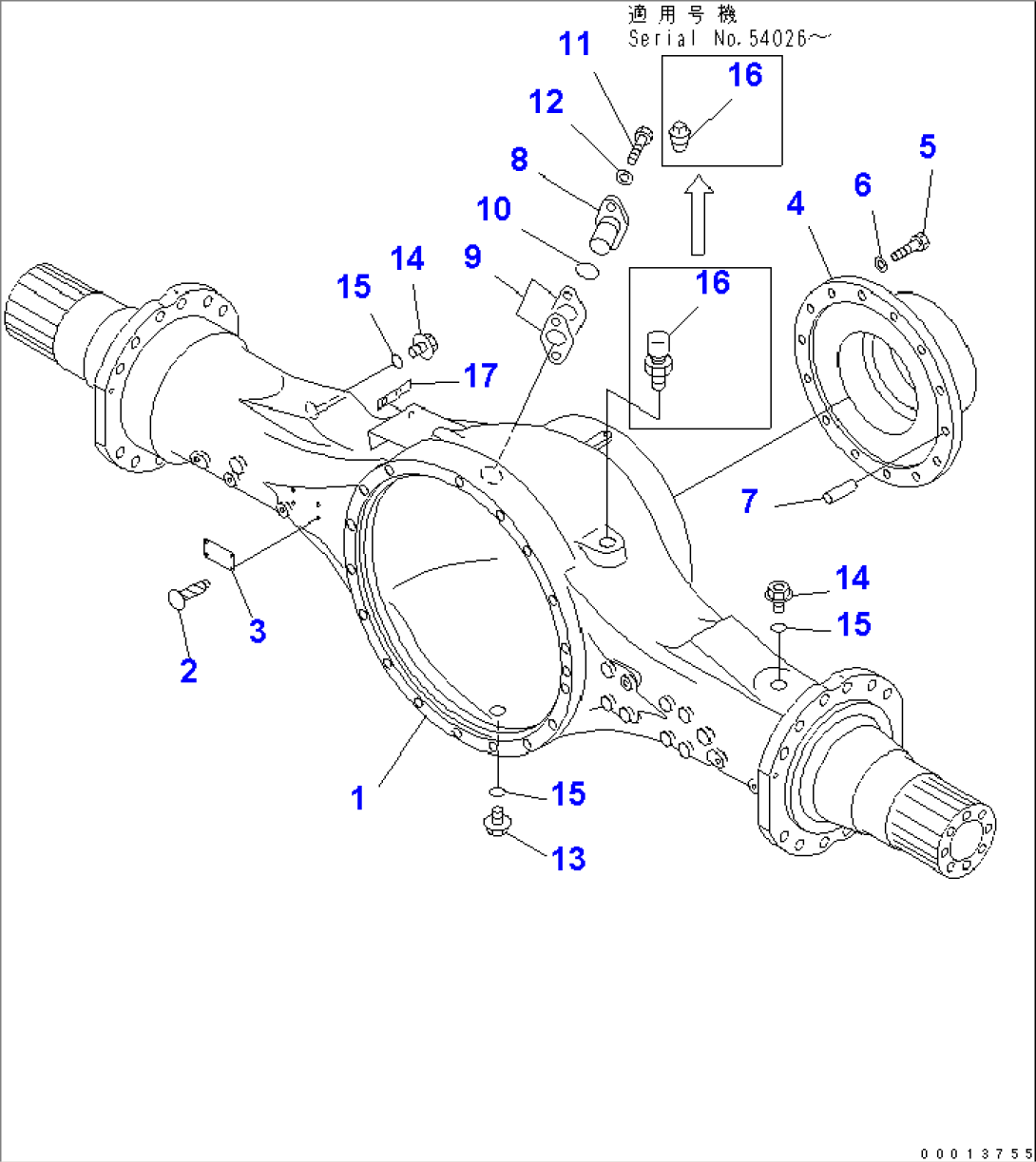

| (425-23-20001) | REAR AXLE ASS'Y | 50001-54025 | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F4500-01A2 TO F4500-05A2. | ||||
| 1 | 425-23-23101 | HOUSING | 50001- | |
| 2 | 04418-13060 | SCREW | 50001- | |
| 3 | 815-02-10110 | PLATE¤ NAME,(LIMITED SUPPLY) | 50001- | |
| 4 | 425-23-13310 | SUPPORT | 50001- | |
| 5 | 01010-31650 | BOLT | .- | |
| \1\01010-61650 | BOLT | 50001-. | ||
| 6 | 01643-31645 | WASHER | 50001- | |
| 7 | 04020-01842 | PIN,DOWEL | 50001- | |
| 8 | 425-22-13510 | SHAFT | 50001- | |
| 9 | 425-22-13520 | SHIM¤ 1.0MM | 50001- | |
| 425-22-13530 | SHIM¤ 0.3MM | 50001- | ||
| 425-22-13540 | SHIM¤ 0.2MM | 50001- | ||
| 10 | 07000-13035 | O-RING | 50001- | |
| 11 | 01010-31230 | BOLT | .- | |
| \1\01010-61230 | BOLT | 50001-. | ||
| 12 | 01643-31232 | WASHER | 50001- | |
| 13 | 07044-13620 | PLUG | 50001- | |
| 14 | 566-16-11351 | PLUG | 50001- | |
| 15 | 07002-13634 | O-RING | 50001- | |
| 16 | 07042-00108 | PLUG | 54026- | |
| 07030-01030 | BREATHER | 50001-54025 | ||
| 17 | 425-U44-2320 | PLATE (WELDED) | 50001- |
