| Item | Part No. | Part Name | Qty | Serial No. |
| 418-23-30001 | Axle Assembly, Rear | B20001- | ||
| 1 | 04020-01228 | Pin, Dowel | B20001- | |
| 2 | 01011-61620 | Bolt | B20001- | |
| 3 | 01643-31645 | Washer | B20001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa200 6 s/n b20001 up
- Power transmitting system
- Rear axle, housing mounting
Поиск по каталогу

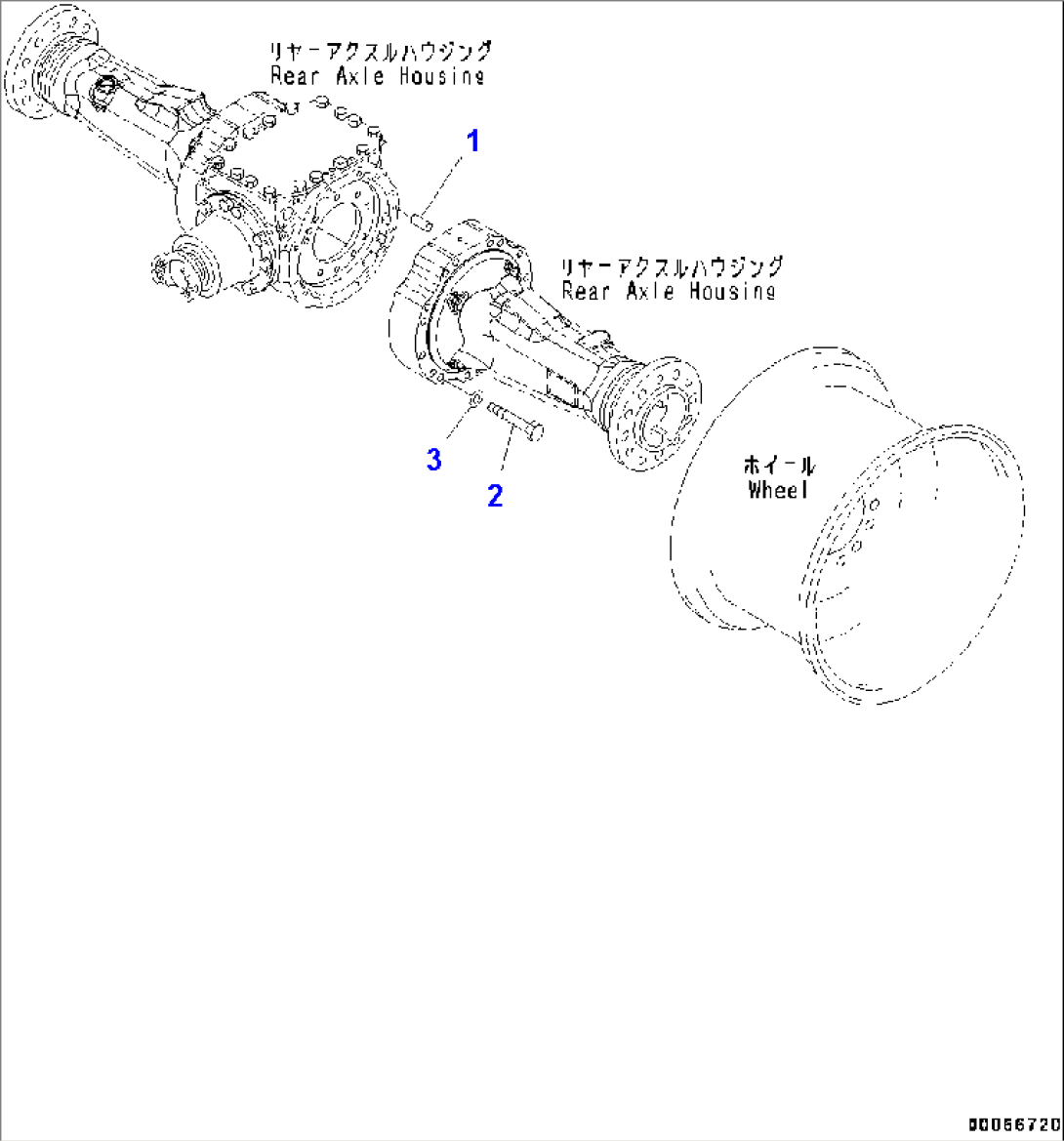

Rear Axle, Housing Mounting
