| Item | Part No. | Part Name | Qty | Serial No. |
| 417-23-30101 | Axle Assembly | 80001- | ||
| 1 | 04020-01228 | Pin, Dowel | 80001- | |
| 2 | 01011-61400 | Bolt | 80001- | |
| 3 | 01643-31445 | Washer, Flat | 80001- | |
| 4 | (815-02-10110) | Plate, Name (Limited Supply) | 80001- | |
| 5 | 04418-13060 | Screw | 80001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa150pz 6 s/n 80001 up
- Power transmitting system
- Rear axle, housing mounting (#80001 )
Поиск по каталогу

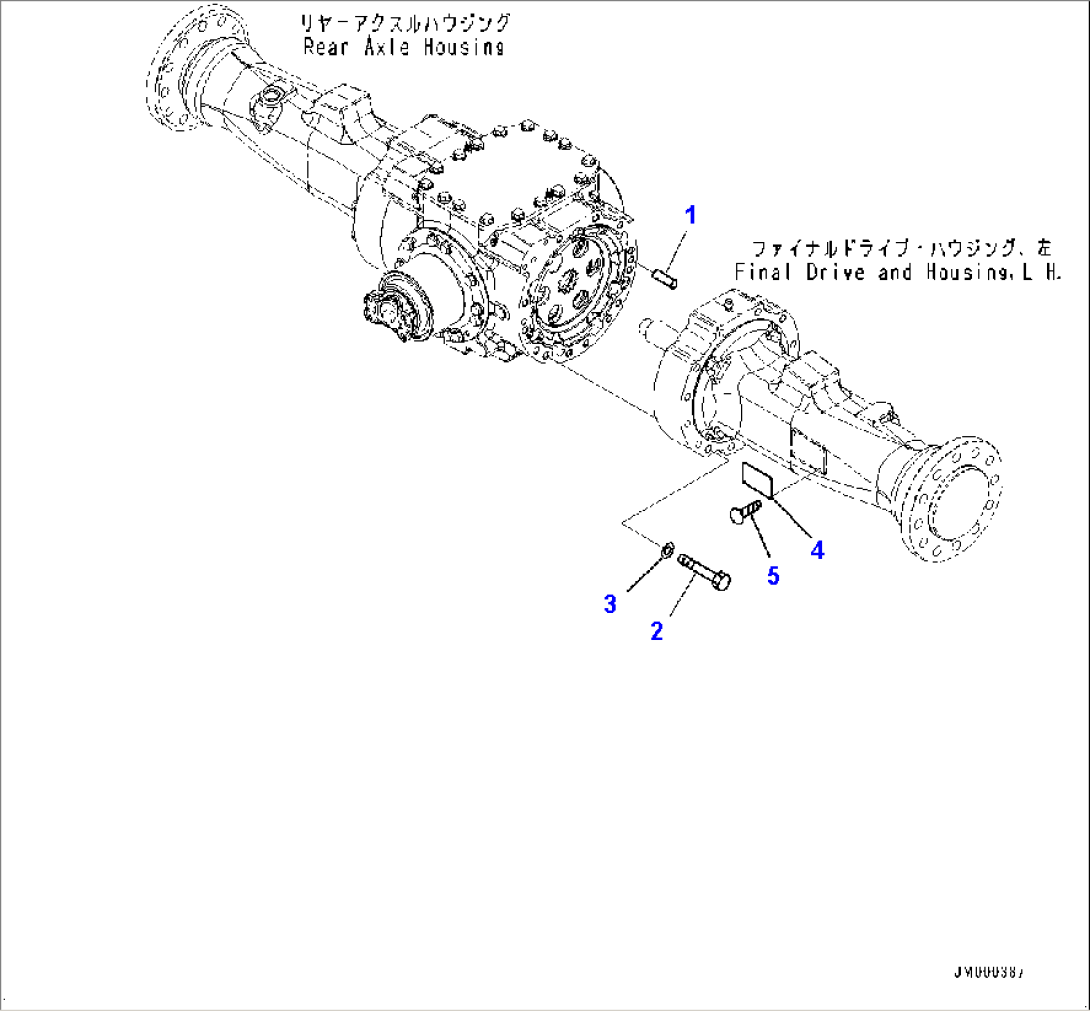

Rear Axle, Housing Mounting (#80001-)
