| Item | Part No. | Part Name | Qty | Serial No. |
| (425-23-30011) | AXLE ASS'Y | 55482- | ||
| (\0\425-23-30010) | AXLE ASS'Y | 55001-55481 | ||
| (425-23-30061) | AXLE ASS'Y,LSD | 55182- | ||
| (\0\425-23-30060) | AXLE ASS'Y,LSD | 55001-55481 | ||

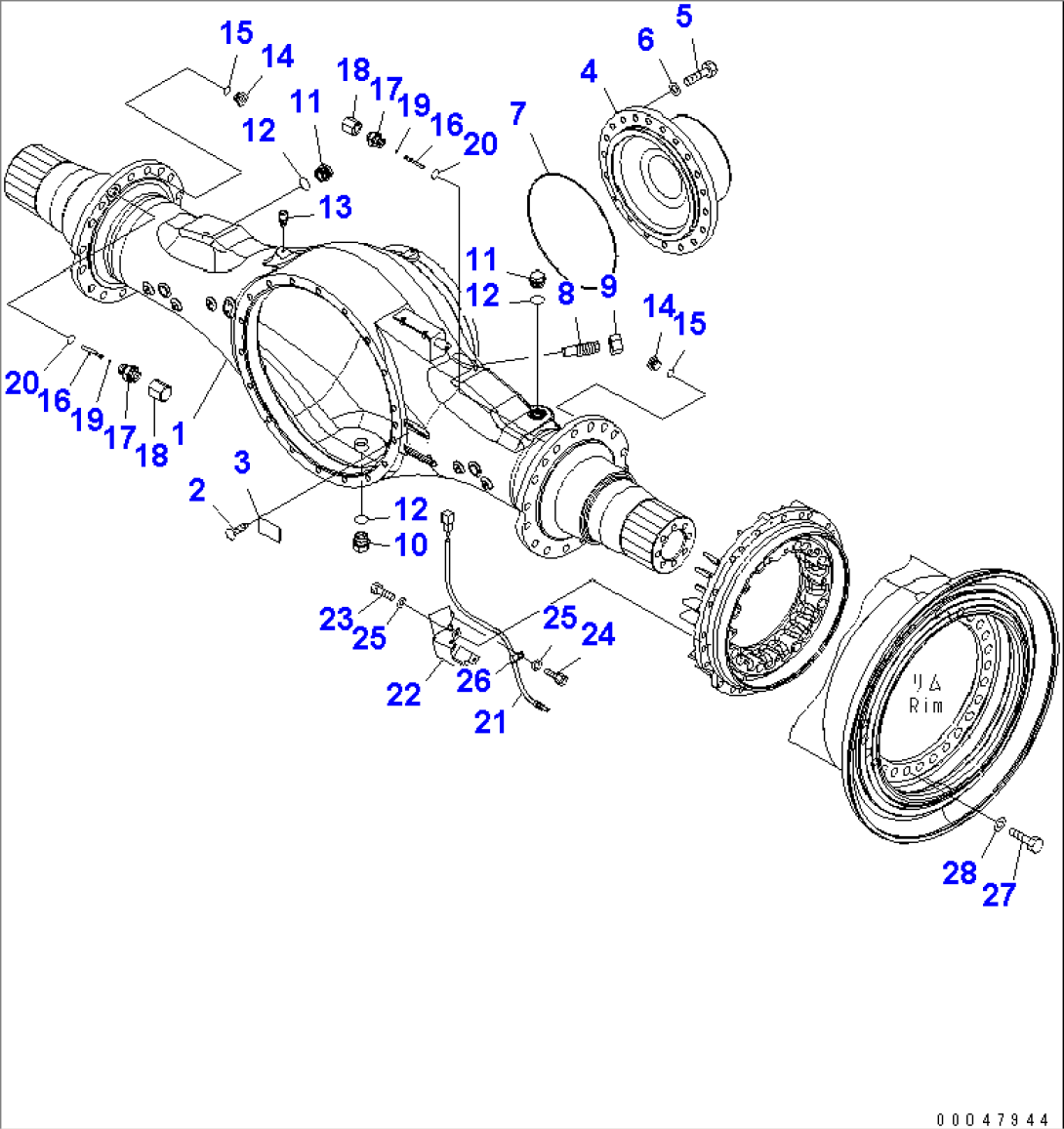

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F4500-01A0 TO F4500-07A0. | ||||
| 1 | 425-23-33101 | HOUSING | 55001- | |
| 2 | 04418-13060 | SCREW | 55001- | |
| 3 | 815-02-10110 | PLATE, NAME | 55001- | |
| 4 | 425-23-33310 | SUPPORT | 55001- | |
| 5 | 01010-61650 | BOLT | 55001- | |
| 6 | 01643-31645 | WASHER | 55001- | |
| 7 | 07000-15335 | O-RING | 55001- | |
| 8 | 425-22-33510 | BOLT | 55001- | |
| 9 | 01582-03024 | NUT | 55001- | |
| 10 | 07044-13620 | PLUG | 55001- | |
| 11 | 07041-13612 | PLUG | 55001- | |
| 12 | 07002-13634 | O-RING | 55001- | |
| 13 | 07030-01030 | BREATHER | 55001- | |
| 14 | 07040-12412 | PLUG | 55001- | |
| 15 | 07002-12434 | O-RING | 55001- | |
| 16 | 425-33-31810 | SHAFT | 55001- | |
| 17 | 569-33-71720 | GUIDE | 55001- | |
| 18 | 569-33-71730 | CAP | 55001- | |
| 19 | 07000-11005 | O-RING | 55001- | |
| 20 | 07002-12434 | O-RING | 55001- | |
| 21 | 426-06-31120 | SENSOR,TEMP | 55001- | |
| 22 | 425-23-33910 | COVER | 55001- | |
| 23 | 01010-61025 | BOLT | 55001- | |
| 24 | 01010-61020 | BOLT | 55001- | |
| 25 | 01643-31032 | WASHER | 55001- | |
| 26 | 04434-51010 | CLIP | 55001- | |
| 27 | 01010-62485 | BOLT | 55001- | |
| 28 | 01643-32460 | WASHER | 55001- |
