| Item | Part No. | Part Name | Qty | Serial No. |
| (425-23-20052) | REAR AXLE ASS'Y | 52374-@ | ||
| (425-23-20051) | REAR AXLE ASS'Y | 52164-52373 | ||
| (425-23-20050) | REAR AXLE ASS'Y | 50001-52163 | ||

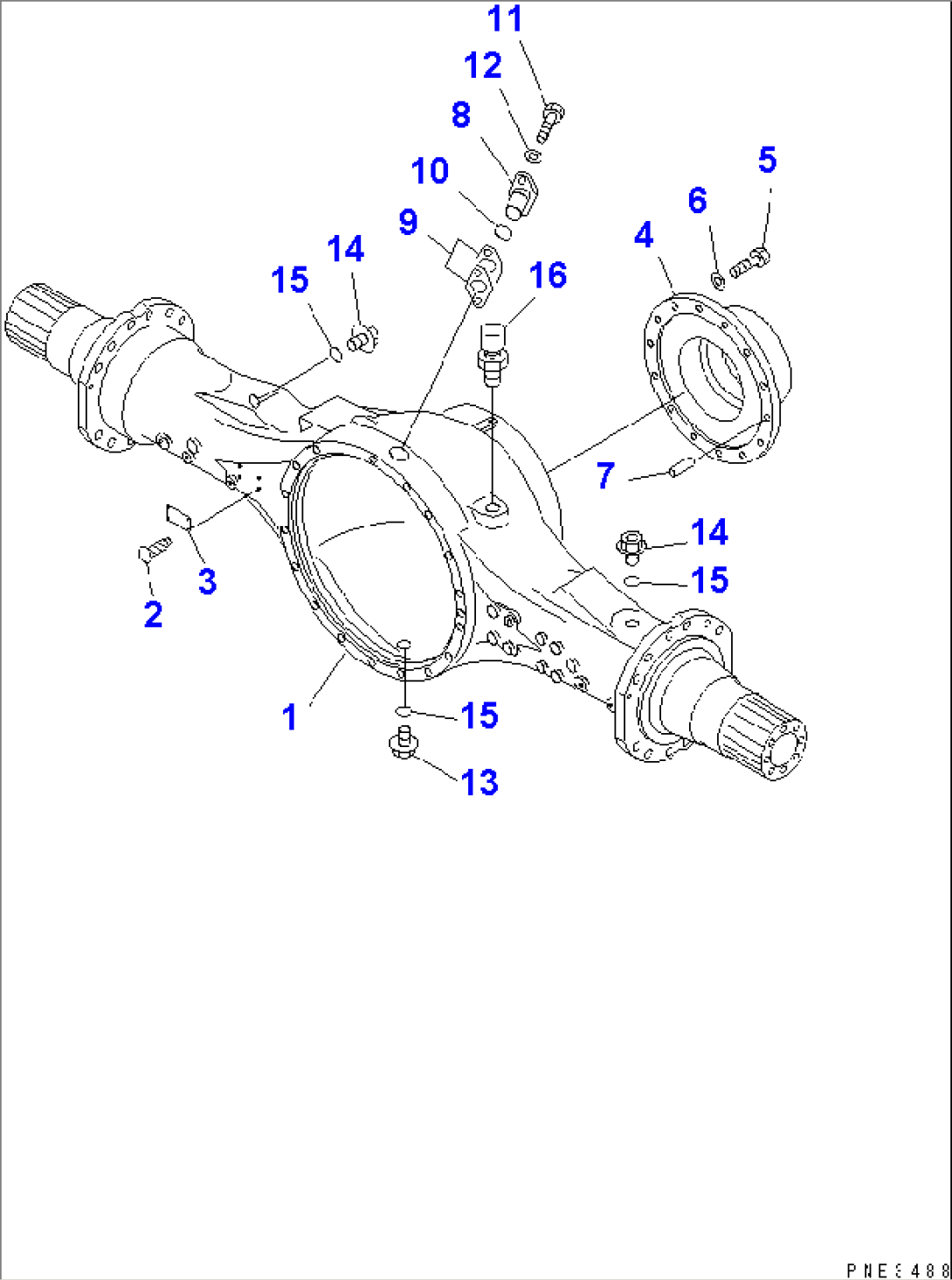

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F4500-01A1 TO F4500-05A1. | ||||
| 1 | 425-23-23101 | HOUSING | 50001-@ | |
| 2 | 04418-13060 | SCREW | 50001-@ | |
| 3 | (\7\815-02-10110) | PLATE, NAME,(LIMITED SUPPLY) | 50001-@ | |
| 4 | 425-23-13310 | SUPPORT | 50001-@ | |
| 5 | 01010-31650 | BOLT | 50001-@ | |
| 6 | 01643-31645 | WASHER | 50001-@ | |
| 7 | 04020-01842 | PIN,DOWEL | 50001-@ | |
| 8 | 425-22-13510 | SHAFT | 50001-@ | |
| 9 | 425-22-13520 | SHIM, 1.0MM | 50001-@ | |
| 9 | 425-22-13530 | SHIM, 0.3MM | 50001-@ | |
| 9 | 425-22-13540 | SHIM, 0.2MM | 50001-@ | |
| 10 | 07000-13035 | O-RING | 50001-@ | |
| 11 | 01010-31230 | BOLT | 50001-@ | |
| 12 | 01643-31232 | WASHER | 50001-@ | |
| 13 | 07044-13620 | PLUG | 50001-@ | |
| 14 | 566-16-11351 | PLUG | 50001-@ | |
| 15 | 07002-13634 | O-RING | 50001-@ | |
| 16 | 07030-01030 | BREATHER | 50001-@ |
