| Item | Part No. | Part Name | Qty | Serial No. |
| 421-23-20000 | AXLE ASS'Y,REAR | 50001- | ||

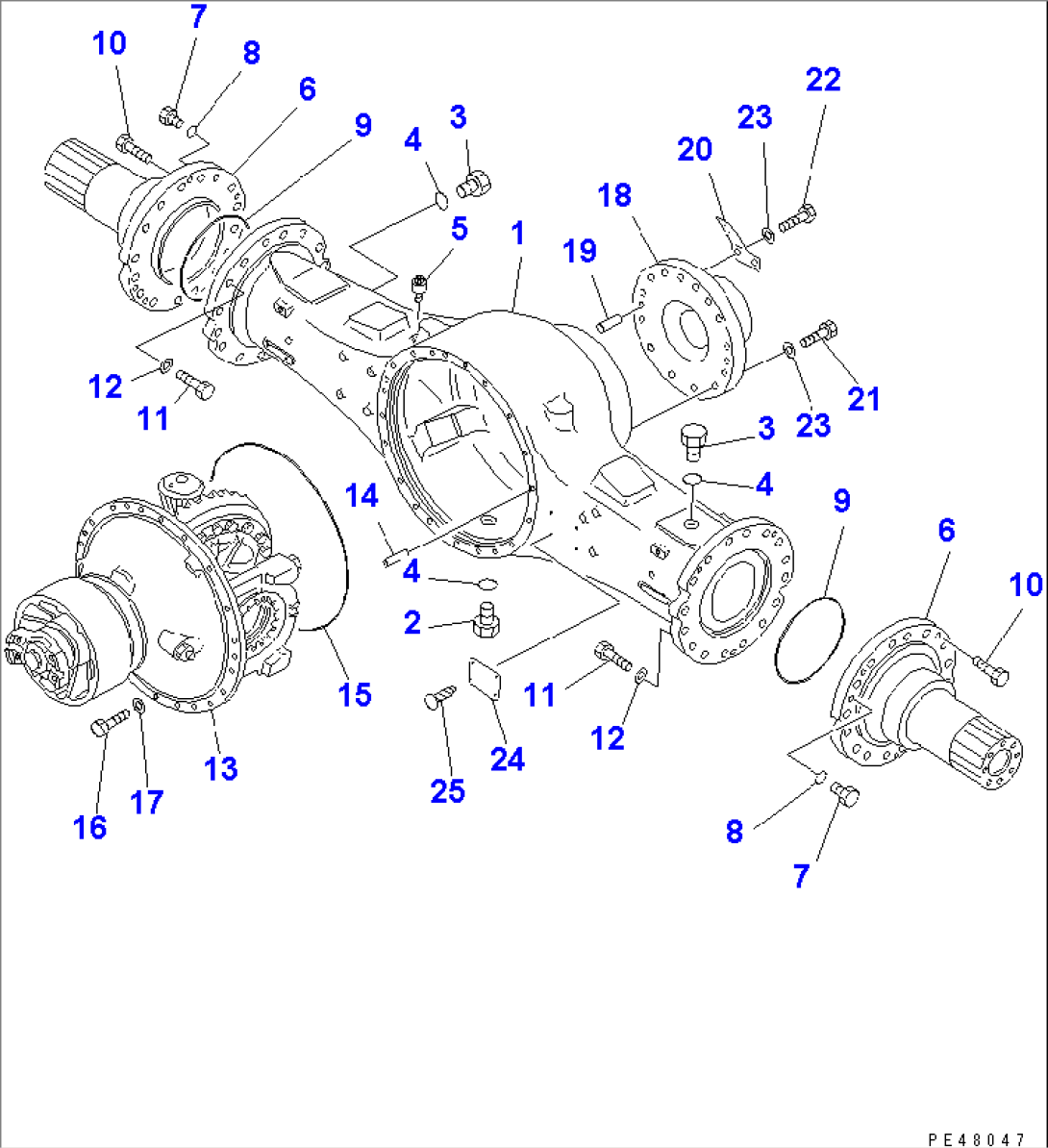

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.3201 TO 3231. | ||||
| 1 | 421-23-23110 | HOUSING | 50001- | |
| 2 | 07044-13620 | PLUG,DRAIN | 50001- | |
| 3 | 07041-13612 | PLUG | 50001- | |
| 4 | 07002-03634 | O-RING | 50001- | |
| 5 | 07030-01030 | BREATHER | 50001- | |
| 6 | 421-22-13230 | SHAFT | 50001- | |
| 7 | 07040-11007 | PLUG | 50001- | |
| 8 | 07002-01023 | O-RING | 50001- | |
| 9 | 07000-05220 | O-RING | 50001- | |
| 10 | 01252-31040 | BOLT | 50001- | |
| 11 | 01010-62495 | BOLT | 50001- | |
| 12 | 01643-32460 | WASHER | 50001- | |
| 13 | (421-23-21000) | DIFFERENTIAL ASS'Y,REAR | 50001- | |
| 14 | 04020-01638 | PIN,DOWEL | 50001- | |
| 15 | 07000-05485 | O-RING | 50001- | |
| 16 | 01010-31450 | BOLT | 50001- | |
| 17 | 01643-31445 | WASHER | 50001- | |
| 18 | 421-23-23310 | SUPPORT | 50001- | |
| 19 | 04020-01842 | PIN,DOWEL | 50001- | |
| 20 | 421-23-13291 | PLATE | 50001- | |
| 21 | 01010-31445 | BOLT | 50001- | |
| 22 | 01010-31450 | BOLT | 50001- | |
| 23 | 01643-31445 | WASHER | 50001- | |
| 24 | \6\ | PLATE, NAME,(LIMITED SUPPLY) | 50001- | |
| 25 | 04418-03060 | SCREW | 50001- |
