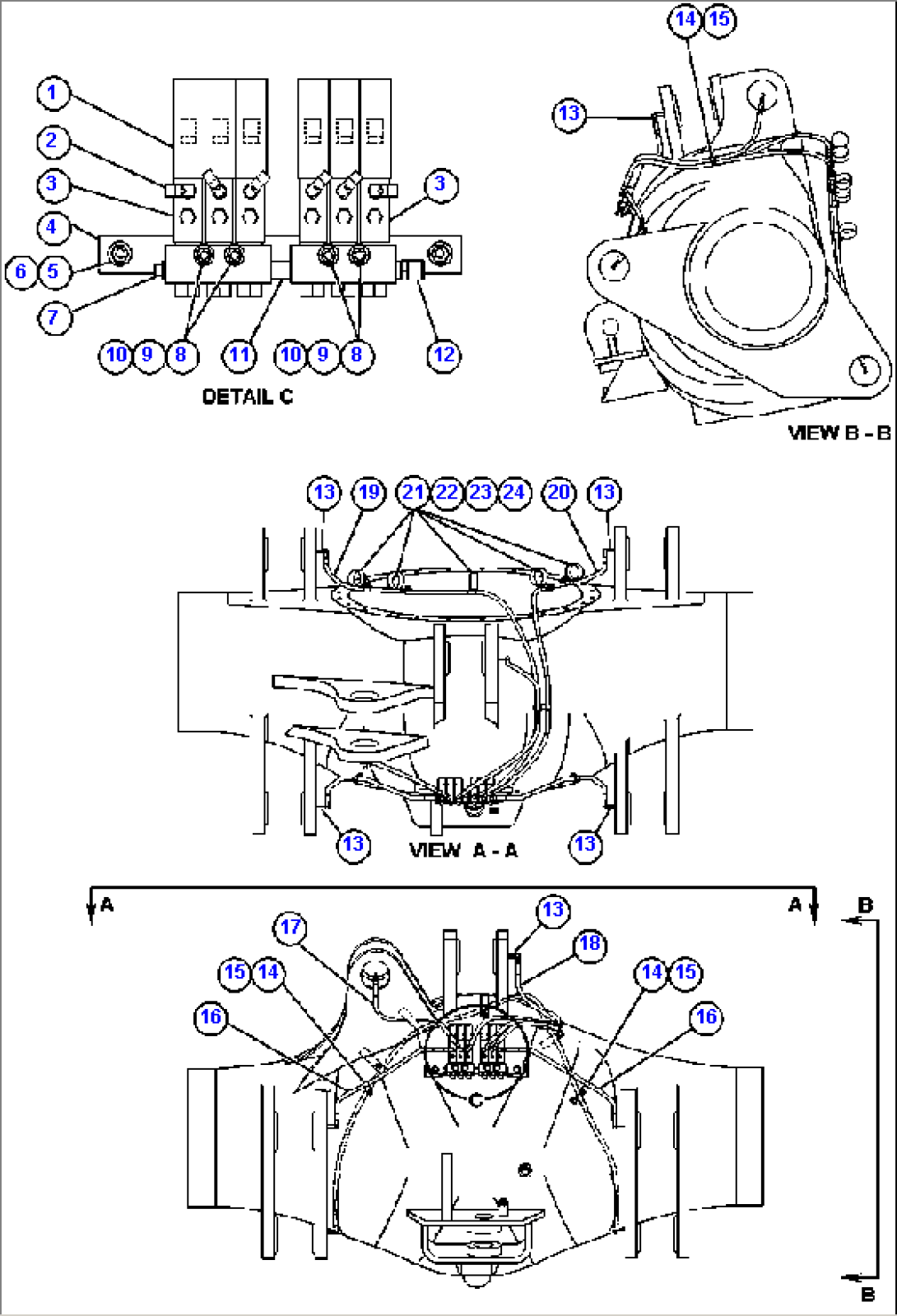

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | VW7990 | CAP, PROTECTIVE | ||
| 2 | WB0252 | FITTING, ELBOW - 90 DEG | ||
| 3 | TA4410 | INJECTOR | ||
| 4 | EF8641 | PLATE | ||
| 5 | MM0004 | CAPSCREW - M12 X 1.75 X 20 | ||
| 6 | MM0462 | FLAT WASHER - M12 | ||
| 7 | C5770 | PLUG, PIPE | ||
| 8 | MM0610 | CAPSCREW - M10 X 1.50 X 50 | ||
| 9 | MM0178 | NUT - M10 X 1.50 | ||
| 10 | MM0461 | FLAT WASHER - M10 | ||
| 11 | TB8803 | NIPPLE, LONG | ||
| 12 | WB0462 | FITTING, STRAIGHT | ||
| 13 | WA6192 | FITTING, ELBOW - 90 DEG | ||
| 14 | MM0036 | CAPSCREW - M10 X 1.50 X 20 | ||
| 15 | VN9907 | CLAMP | ||
| 16 | HA5552 | HOSE | ||
| 17 | HA5553 | HOSE | ||
| 18 | HA6834 | HOSE | ||
| 19 | HA5731 | HOSE | ||
| 20 | HA5870 | HOSE | ||
| 21 | VC7674 | CLAMP | ||
| 22 | WA4887 | CLAMP | ||
| 23 | MM0010 | CAPSCREW - M12 X 1.75 X 25 | ||
| 24 | MM0179 | NUT - M12 X 1.75 |
