| Item | Part No. | Part Name | Qty | Serial No. |
| (418-23-30001) | AXLE ASS'Y,REAR | 70001- | ||
| (418-23-30050) | AXLE ASS'Y,REAR (ASD) | 70001- | ||

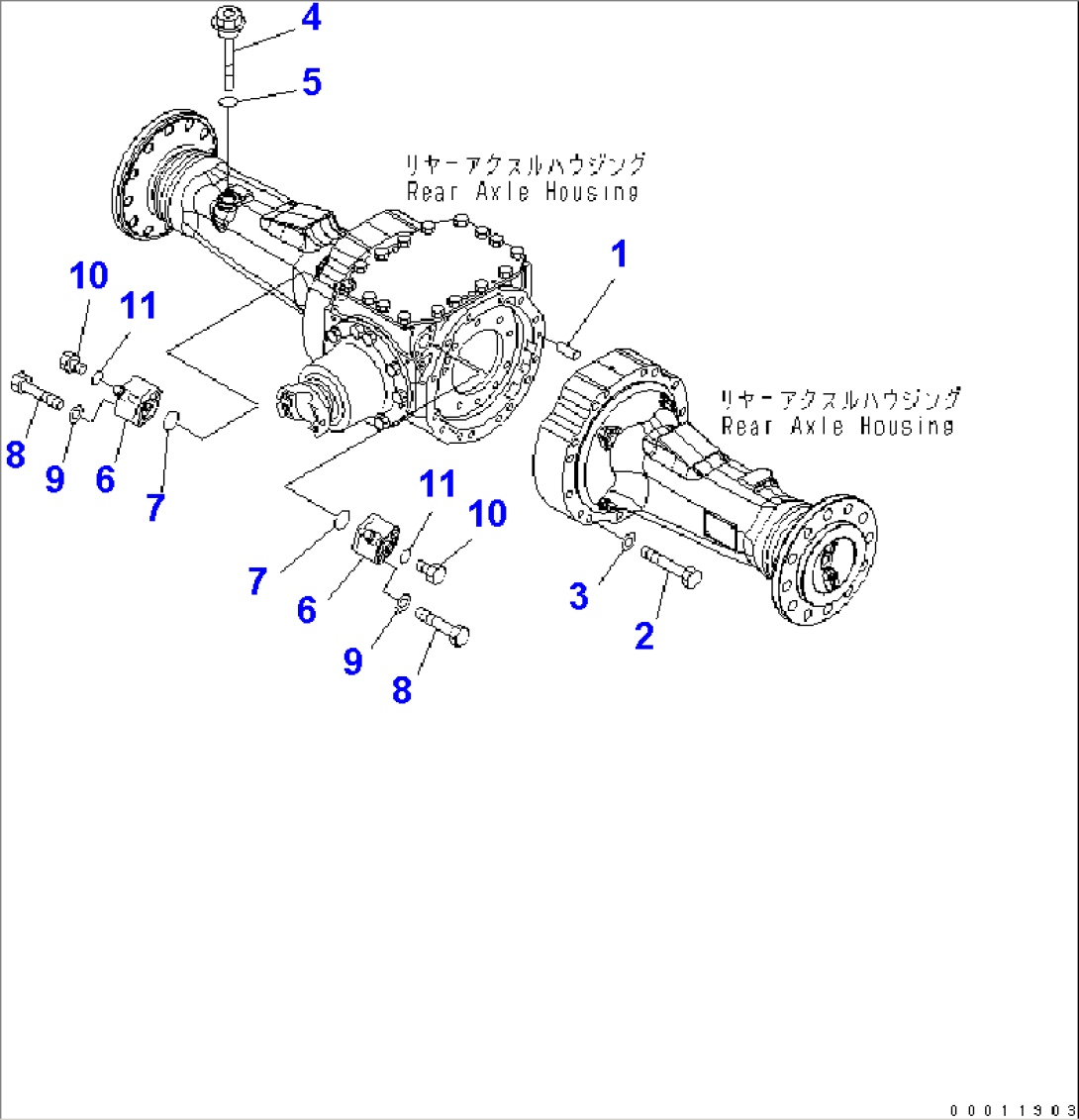

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F4500-51A0 TO F4500-54A0. | ||||
| 1 | 04020-01228 | PIN,DOWEL | 70001- | |
| 2 | 01011-61620 | BOLT | 70001- | |
| 3 | 01643-31645 | WASHER | 70001- | |
| 4 | 417-22-23250 | PLUG | 70001- | |
| 5 | 07002-13034 | O-RING | 70001- | |
| 6 | 418-43-37302 | VALVE | 70001- | |
| 7 | 07000-12040 | O-RING | 70001- | |
| 8 | 01010-61290 | BOLT | 70001- | |
| 9 | 01643-31232 | WASHER | 70001- | |
| 10 | 07040-11409 | PLUG | 70001- | |
| 11 | 07002-11423 | O-RING | 70001- |
