| Item | Part No. | Part Name | Qty | Serial No. |

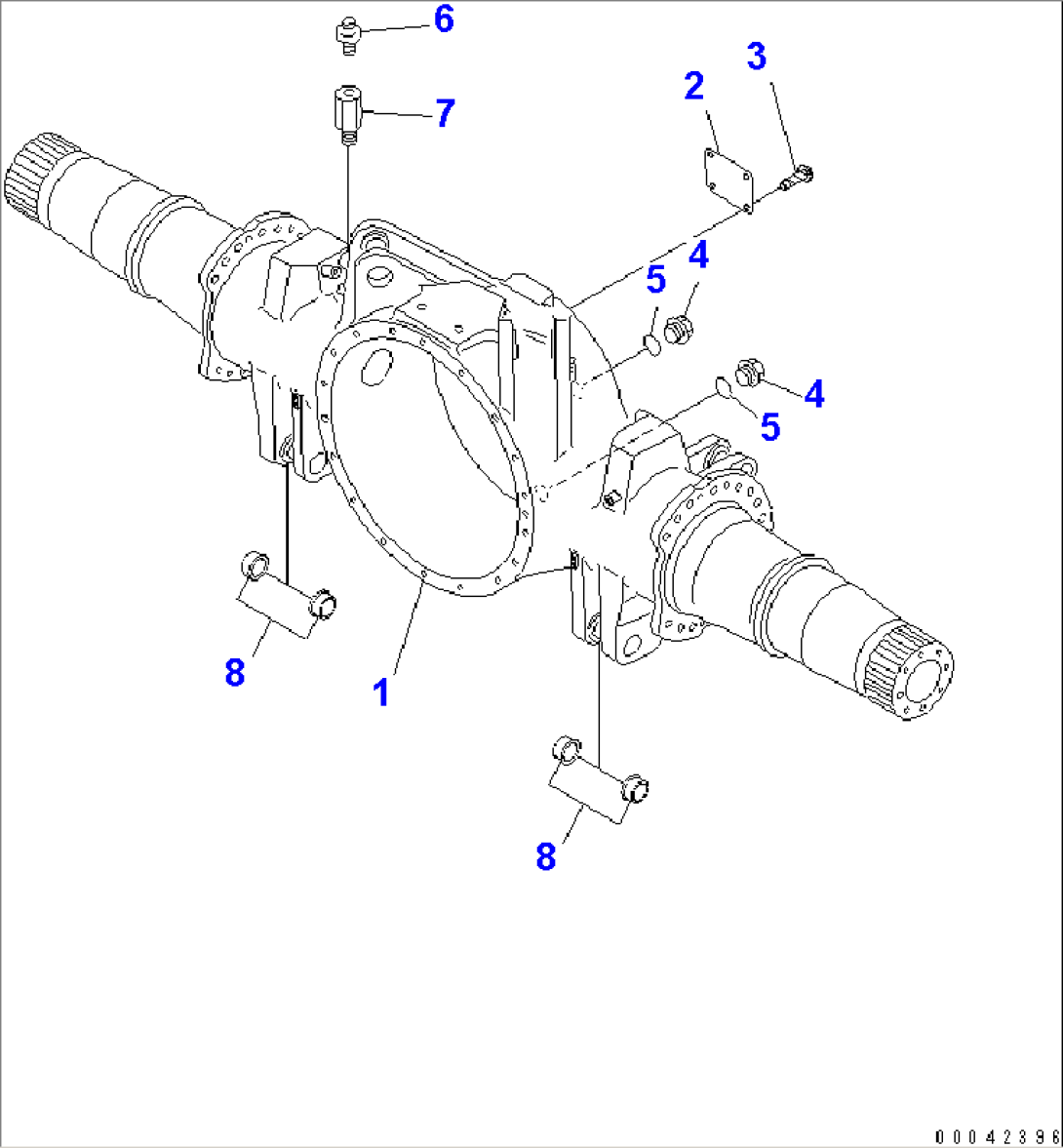

| (566-22-80011) | REAR AXLE ASS'Y | 11001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F3500-01A0 TO F3500-06A0. | ||||
| 1 | 566-22-73821 | HOUSING | 11001- | |
| 2 | 815-02-10110 | PLATE, NAME | 11001- | |
| 3 | 04418-13060 | SCREW | 11001- | |
| 4 | 07044-13620 | PLUG | 11001- | |
| 5 | 07002-13634 | O-RING | 11001- | |
| 6 | 07030-00252 | BREATHER | 11001- | |
| 7 | 566-22-13170 | JOINT | 11001- | |
| 8 | 566-52-6A210 | BUSHING | 11001- |
