| Item | Part No. | Part Name | Qty | Serial No. |
| (421-23-20800) | AXLE ASS'Y,REAR (LIMITED SLIP DIFF.) | 54001- | ||

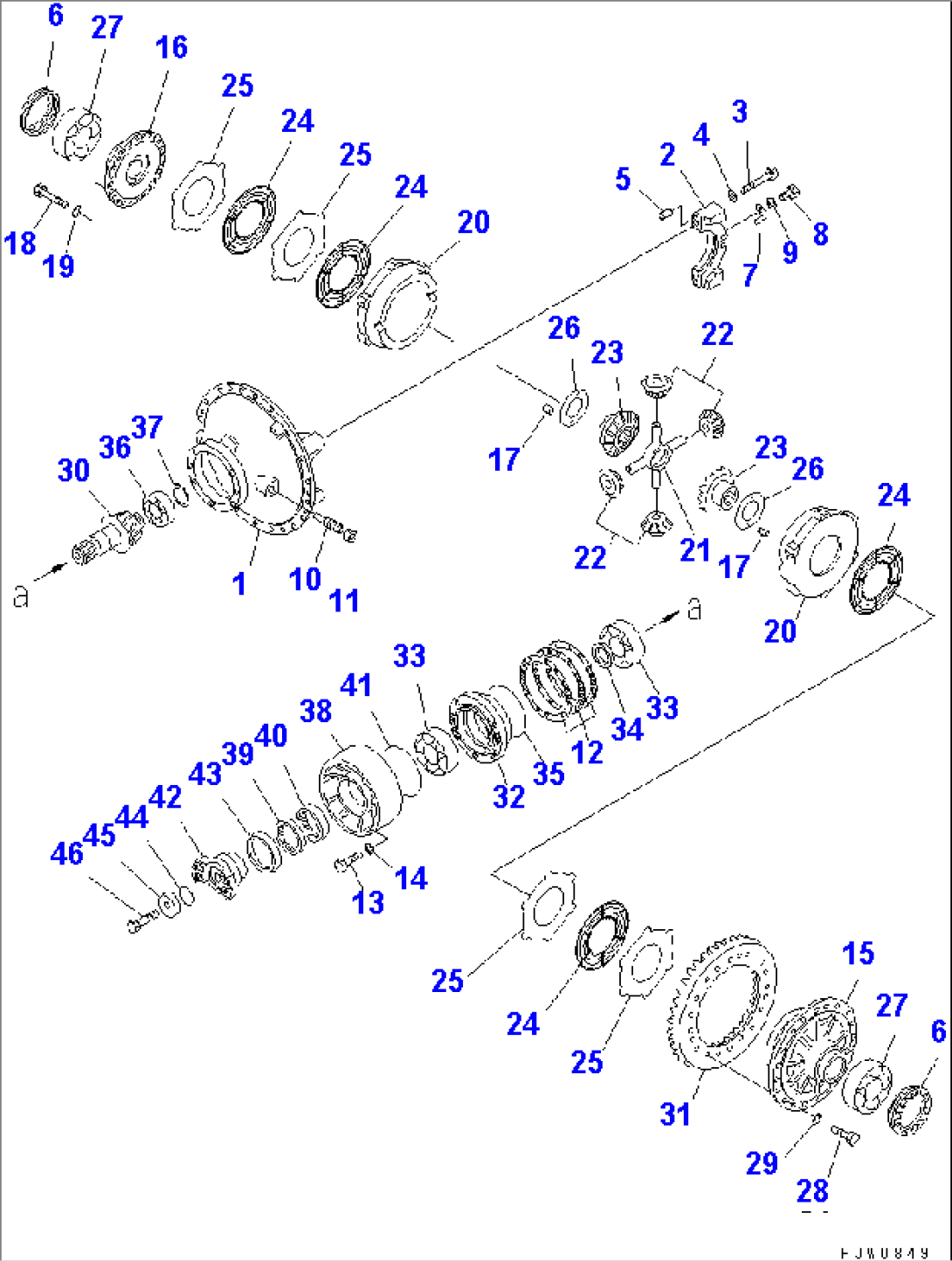

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F4500-01A0 TO F4500-04A0. | ||||
| 421-23-21052 | DIFFERENTIAL | 54001- | ||
| 421-22-21100 | CARRIER ASS'Y | 54001- | ||
| 1 | 421-22-21110 | CARRIER | 54001- | |
| 2 | 421-22-21120 | CAP | 54001- | |
| 3 | 01011-62440 | BOLT | 54001- | |
| 4 | 01643-32460 | WASHER | 54001- | |
| 5 | 423-22-11161 | PIN,DOWEL | 54001- | |
| 6 | 421-22-11141 | NUT | 54001- | |
| 7 | 421-22-11150 | LOCK | 54001- | |
| 8 | 01010-31430 | BOLT | 54001- | |
| 9 | 01643-31445 | WASHER | 54001- | |
| 10 | 421-22-11180 | BOLT | 54001- | |
| 11 | 01583-12414 | NUT | 54001- | |
| 12 | 421-22-11372 | SHIM, 1.0MM | 54001- | |
| 12 | 421-22-11382 | SHIM, 0.3MM | 54001- | |
| 12 | 421-22-11392 | SHIM, 0.2MM | 54001- | |
| 13 | 01010-31455 | BOLT | 54001- | |
| 14 | 01643-31445 | WASHER | 54001- | |
| 421-22-27101 | CASE ASS'Y | 54001- | ||
| 15 | 421-22-27111 | CASE | 54001- | |
| 16 | 421-22-27121 | CASE | 54001- | |
| 17 | 175-21-12180 | PIN,DOWEL | 54001- | |
| 18 | 01010-61240 | BOLT | .- | |
| 18 | 01010-31240 | BOLT | 54001-. | |
| 19 | 01643-31232 | WASHER | 54001- | |
| 20 | 421-22-27211 | RING,PRESS | 54001- | |
| 21 | 421-22-27220 | SHAFT | 54001- | |
| 22 | 421-22-37310 | GEAR | .- | |
| 22 | \0\421-22-27310 | GEAR | 54001-. | |
| 23 | 421-22-27320 | GEAR | 54001- | |
| 24 | 421-22-27411 | DISC | .- | |
| 24 | 421-22-27410 | DISC | 54001-. | |
| 25 | 421-22-27451 | PLATE, 3.4MM | .- | |
| 25 | 421-22-27450 | PLATE, 3.4MM | 54001-. | |
| 25 | 421-22-27461 | PLATE, 3.5MM | .- | |
| 25 | 421-22-27460 | PLATE, 3.5MM | 54001-. | |
| 26 | 56B-22-17210 | WASHER, 4.0MM | .- | |
| 26 | 421-22-27370 | SHIM, 4.0MM | 54001-. | |
| 26 | 56B-22-17230 | WASHER, 4.1MM | .- | |
| 26 | 421-22-27380 | SHIM, 4.1MM | 54001-. | |
| 27 | 421-22-11860 | BEARING | 54001- | |
| 28 | 01010-31645 | BOLT | 54001- | |
| 29 | 01643-31645 | WASHER | 54001- | |
| 421-22-21200 | PINION ASS'Y | 54001- | ||
| 30 | 421-22-21210 | PINION | 54001- | |
| 31 | 421-22-21220 | GEAR,BEVEL | 54001- | |
| 32 | 421-22-21130 | CAGE | 54001- | |
| 33 | 421-22-11871 | BEARING | 54001- | |
| 34 | 421-22-11341 | SPACER | 54001- | |
| 35 | 07000-15180 | O-RING | 54001- | |
| 36 | 421-22-21850 | BEARING | 54001- | |
| 37 | 04064-05020 | RING,SNAP | 54001- | |
| 38 | 421-23-21360 | SUPPORT | 54001- | |
| 39 | 421-22-21760 | SEAL,DUST | 54001- | |
| 40 | 07012-50095 | SEAL,OIL | 54001- | |
| 41 | 07000-15175 | O-RING | 54001- | |
| 42 | 421-23-21240 | COUPLING | 54001- | |
| 43 | 421-22-21320 | PROTECTOR | 54001- | |
| 44 | 07000-15055 | O-RING | 54001- | |
| 45 | 421-22-11240 | HOLDER | 54001- | |
| 46 | 01051-62420 | BOLT | 54001- |
