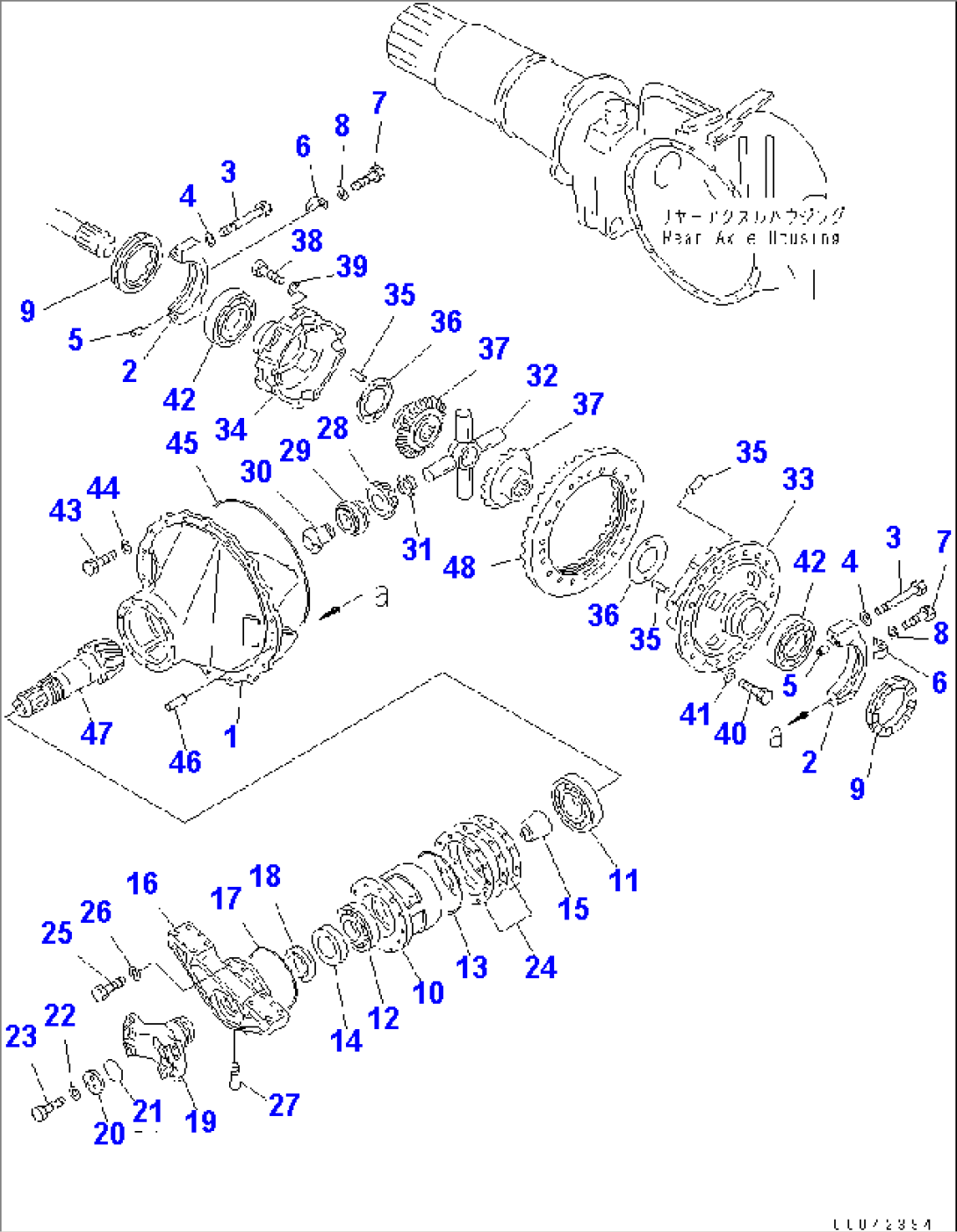

| Item | Part No. | Part Name | Qty | Serial No. |
| 566-22-80001 | REAR AXLE ASS'Y | 11001- | ||
| 566-22-80011 | REAR AXLE ASS'Y | 11001- | ||
| 566-22-80202 | REAR AXLE ASS'Y | 11001- | ||
| 566-22-71001 | DIFFERENTIAL ASS'Y | 11001- | ||
| 566-22-00014 | CASE ASS'Y | 11001- | ||
| 1 | \6\ | CASE | 11001- | |
| 2 | \6\ | CAP | 11001- | |
| 3 | 01011-63085 | BOLT | 11001- | |
| 4 | 01643-33080 | WASHER | 11001- | |
| 5 | 423-22-11161 | PIN | 11001- | |
| 6 | 566-22-11251 | LOCK | 11001- | |
| 7 | 01010-61230 | BOLT | 11001- | |
| 8 | 01643-31232 | WASHER | 11001- | |
| 9 | 287-22-11631 | NUT | 11001- | |
| 10 | 566-22-71351 | CAGE | 11001- | |
| 11 | 566-22-11812 | BEARING | 11001- | |
| 12 | 566-22-71820 | BEARING | 11001- | |
| 13 | 07000-15235 | O-RING | 11001- | |
| 14 | 566-22-71360 | COLLAR | 11001- | |
| 15 | 566-22-71370 | SPACER | 11001- | |
| 16 | 566-22-71311 | CAGE | 11001- | |
| 17 | 07000-15190 | O-RING | 11001- | |
| 18 | 07012-10110 | SEAL | 11001- | |
| 19 | 566-22-71420 | COUPLING | 11001- | |
| 20 | 566-22-71450 | RETAINER | 11001- | |
| 21 | 07000-15075 | O-RING | 11001- | |
| 22 | 01643-32460 | WASHER | 11001- | |
| 23 | 01051-62445 | BOLT | 11001- | |
| 24 | 566-22-00031 | SHIM ASS'Y | 11001- | |
| 24 | 566-22-11371 | SHIM, 0.3MM | 11001- | |
| 24 | 566-22-11381 | SHIM, 0.2MM | 11001- | |
| 24 | 566-22-11391 | SHIM, 1.0MM | 11001- | |
| 25 | 01010-61670 | BOLT | 11001- | |
| 26 | 01643-31645 | WASHER | 11001- | |
| 27 | 566-22-11470 | TUBE | 11001- | |
| 569-22-21400 | PINION ASS'Y | 11001- | ||
| 28 | 569-22-21421 | PINION | 11001- | |
| 29 | 569-22-21850 | BEARING | 11001- | |
| 30 | 569-22-21440 | SLEEVE | 11001- | |
| 31 | 569-22-21950 | NUT | 11001- | |
| 32 | 569-22-61410 | SHAFT | 11001- | |
| 569-22-00043 | CASE ASS'Y | 11001- | ||
| 33 | \6\ | CASE | 11001- | |
| 34 | \6\ | CASE | 11001- | |
| 35 | 565-22-11991 | PIN | 11001- | |
| 36 | 566-22-11211 | WASHER | 11001- | |
| 37 | 566-22-21430 | GEAR | 11001- | |
| 38 | 01051-62020 | BOLT | 11001- | |
| 39 | 01643-32060 | WASHER | 11001- | |
| 40 | 01010-62060 | BOLT | 11001- | |
| 41 | 01643-32060 | WASHER | 11001- | |
| 42 | 566-22-71850 | BEARING | 11001- | |
| 43 | 01010-62055 | BOLT | 11001- | |
| 44 | 01643-32060 | WASHER | 11001- | |
| 45 | 198-09-31640 | O-RING | 11001- | |
| 46 | 04020-01842 | PIN | 11001- | |
| 566-22-00024 | BEVEL PINION ASS'Y | 11001- | ||
| 47 | \6\ | PINION | 11001- | |
| 48 | \6\ | GEAR | 11001- |
