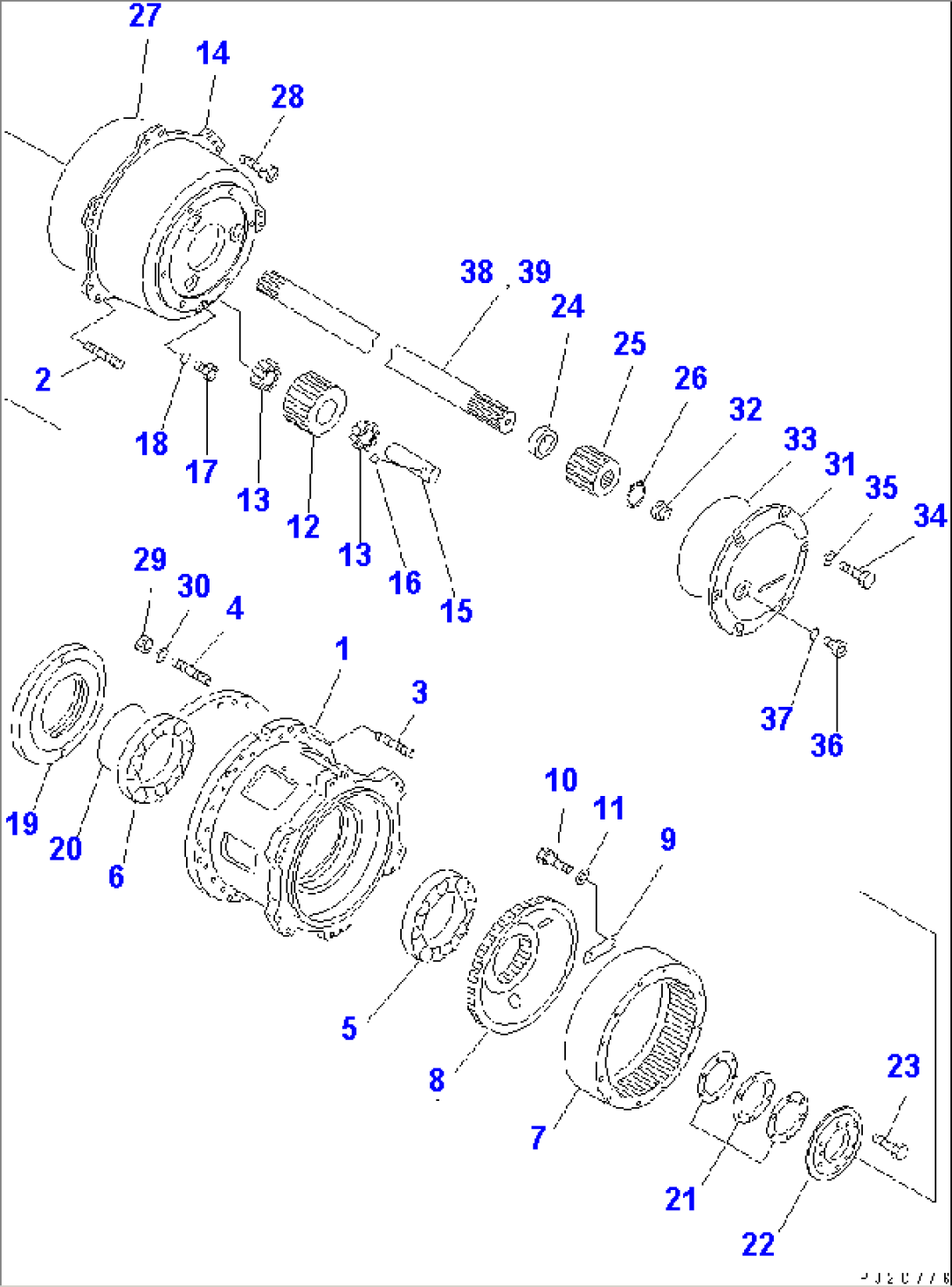

| Item | Part No. | Part Name | Qty | Serial No. |
| 567-22-70004 | REAR AXLE ASS'Y | 1601- | ||
| 567-22-70003 | REAR AXLE ASS'Y | 1452-1600 | ||
| 567-22-70200 | REAR AXLE ASS'Y,AUTO LUBRICATION | 1312- | ||
| 567-22-71005 | DIFFERENTIAL ASS'Y | 1457- | ||
| (\2\567-22-71004) | DIFFERENTIAL ASS'Y | (1457-1712) | ||
| 567-22-71101 | CARRIER ASS'Y | 1312- | ||
| 1 | \6\ | CARRIER | 1312- | |
| 2 | \6\ | CAP | 1312- | |
| 3 | 01011-62435 | BOLT | .- | |
| 3 | \0\01011-82435 | BOLT | 1312-. | |
| 4 | 01643-32460 | WASHER | 1312- | |
| 5 | \6\ | PIN | 1312- | |
| 6 | 567-22-71140 | NUT | .- | |
| 6 | \0\423-22-11140 | NUT | 1312-. | |
| 7 | 421-22-11150 | LOCK | 1312- | |
| 8 | 01010-61430 | BOLT | .- | |
| 8 | \0\01010-81430 | BOLT | 1312-. | |
| 9 | 01643-31445 | WASHER | 1312- | |
| 10 | 421-22-11372 | SHIM, 1.0MM | 1312- | |
| 11 | 421-22-11382 | SHIM, 0.3MM | 1312- | |
| 12 | 421-22-11392 | SHIM, 0.2MM | 1312- | |
| 13 | 01010-61455 | BOLT | .- | |
| 13 | \0\01010-81455 | BOLT | 1312-. | |
| 14 | 01643-31445 | WASHER | 1312- | |
| 15 | 421-22-11440 | SHAFT | 1312- | |
| 16 | 421-22-11450 | PINION | 1312- | |
| 17 | 421-22-11461 | GEAR | 1312- | |
| 18 | 421-22-11691 | WASHER | 1312- | |
| 19 | 421-22-11681 | WASHER | 1312- | |
| 567-22-71501 | CASE ASS'Y | 1457- | ||
| 20 | \6\ | CASE | 1457- | |
| 21 | 424-22-21520 | CASE | 1312- | |
| 22 | 175-21-12180 | PIN | 1312- | |
| 23 | 01011-61410 | BOLT | .- | |
| 23 | \0\01011-81410 | BOLT | 1312-. | |
| 24 | 01643-31445 | WASHER | .- | |
| 24 | 01643-31445 | WASHER | 1312-. | |
| 25 | 567-22-71180 | BEARING | 1312- | |
| 26 | 01010-61645 | BOLT | .- | |
| 26 | \0\01010-81645 | BOLT | 1312-. | |
| 27 | 01643-31645 | WASHER | 1312- | |
| 28 | 04020-01842 | PIN | 1457- | |
| 567-22-71202 | GEAR ASS'Y | 1457- | ||
| 29 | 567-22-71211 | PINION | 1312- | |
| 30 | 567-22-71222 | GEAR,BEVEL | 1457- | |
| 31 | 567-22-71350 | CAGE | 1312- | |
| 32 | 567-22-71410 | BEARING | 1312- | |
| 33 | 07000-15180 | O-RING (K6) | 1312- | |
| 34 | 567-22-71420 | BEARING | 1312- | |
| 35 | 04064-04518 | RING,SNAP | 1312- | |
| 36 | 567-22-71310 | CAGE,PARKING | 1312- | |
| 37 | 07012-50095 | SEAL,OIL (K6) | 1312- | |
| 38 | 07000-15175 | O-RING (K6) | 1312- | |
| 39 | 567-22-71281 | COUPLING ASS'Y | 1312- | |
| 39 | (\2\567-22-71280) | COUPLING ASS'Y | (1312-1712) | |
| 40 | 07000-15055 | O-RING (K6) | 1312- | |
| 41 | 421-22-11240 | HOLDER | 1312- | |
| 42 | 01051-62420 | BOLT | 1312- | |
| 43 | 01010-61445 | BOLT | .- | |
| 43 | \0\01010-31445 | BOLT | 1312-. | |
| 44 | 01643-31445 | WASHER | 1312- | |
| 45 | 07000-15455 | O-RING | 1312- | |
| 46 | 04020-01638 | PIN | 1312- | |
| 47 | 421-22-11180 | BOLT | 1457- | |
| 48 | 01583-12414 | NUT | .- | |
| 48 | 01583-02414 | NUT | 1457-. |
