| Item | Part No. | Part Name | Qty | Serial No. |
| (421-23-20052) | AXLE ASS'Y | 53001- | ||

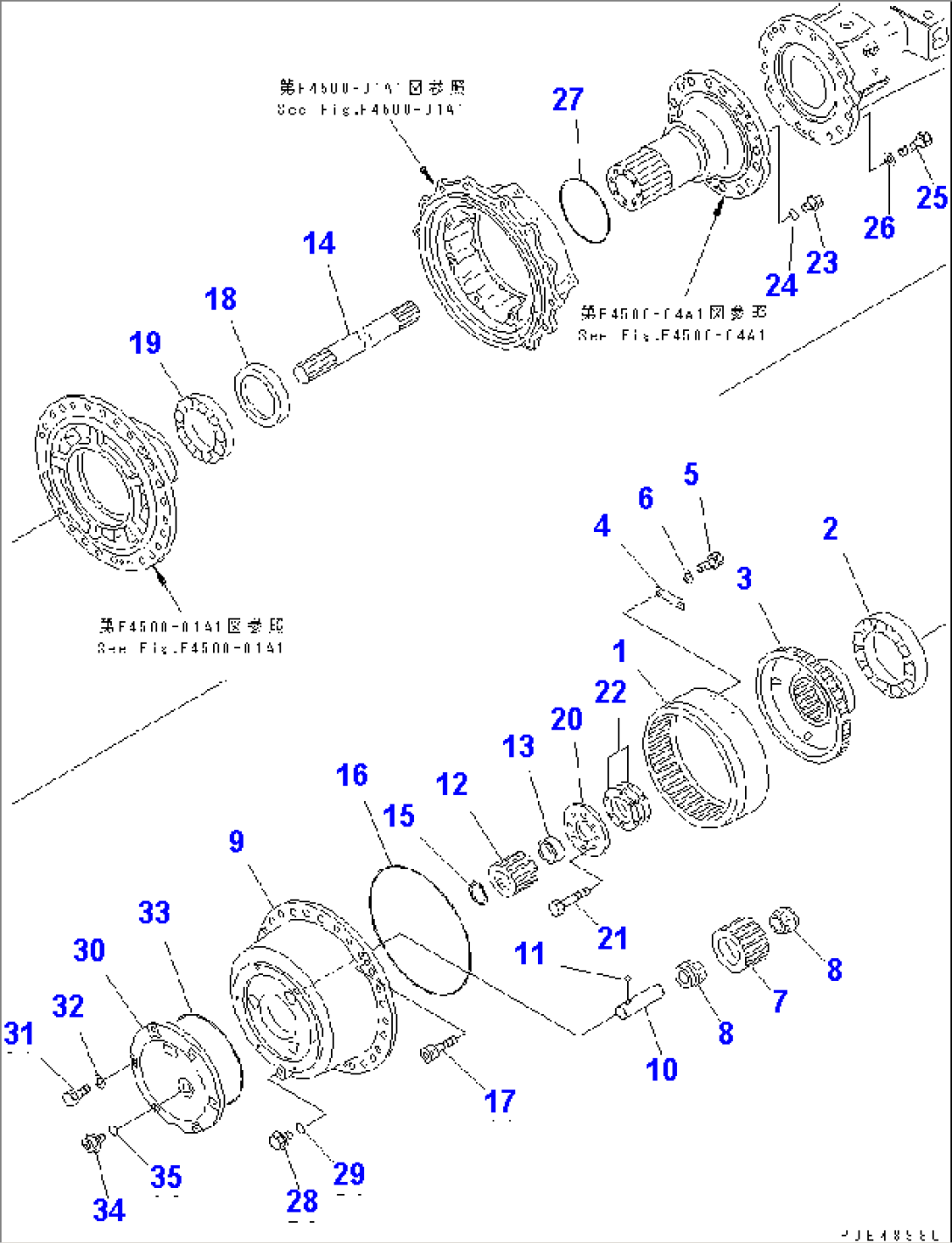

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F4500-01A1 TO F4500-04A1. | ||||
| 1 | 421-22-22540 | GEAR | 53001- | |
| 2 | 421-22-12790 | BEARING | 53001- | |
| 3 | 421-22-12340 | HUB | 53001- | |
| 4 | 421-22-12360 | PLATE | 53001- | |
| 5 | 01010-60820 | BOLT | 53001- | |
| 6 | 01643-30823 | WASHER | 53001- | |
| 421-22-12101 | CARRIER ASS'Y | 53001- | ||
| 7 | 421-22-12583 | GEAR | 53001- | |
| 8 | 421-22-12770 | BEARING | 53001- | |
| 9 | 421-22-12690 | CARRIER | 53001- | |
| 10 | 421-22-12551 | SHAFT | 53001- | |
| 11 | 04260-01587 | BALL | 53001- | |
| 12 | 421-22-12660 | GEAR | 53001- | |
| 13 | 421-22-12350 | SPACER | 53001- | |
| 14 | 421-22-22410 | SHAFT | 53001- | |
| 15 | 04064-06020 | RING,SNAP | 53001- | |
| 16 | 07000-15410 | O-RING | 53001- | |
| 17 | 01252-41025 | BOLT | 53001- | |
| 18 | 421-22-12140 | RETAINER | 53001- | |
| 19 | 421-22-12780 | BEARING | 53001- | |
| 20 | 421-22-12220 | RETAINER | 53001- | |
| 21 | 01010-31450 | BOLT | 53001- | |
| 22 | 421-22-12190 | SHIM¤ 1.0MM | 53001- | |
| 421-22-12180 | SHIM¤ 0.5MM | 53001- | ||
| 421-22-12170 | SHIM¤ 0.2MM | 53001- | ||
| 421-22-12160 | SHIM¤ 0.05MM | 53001- | ||
| 23 | 07040-11007 | PLUG | 53001- | |
| 24 | 07002-11023 | O-RING | 53001- | |
| 25 | 01010-62495 | BOLT | 53001- | |
| 26 | 01643-32460 | WASHER | 53001- | |
| 27 | 07000-15270 | O-RING | 53001- | |
| 28 | 07044-12412 | PLUG | 53001- | |
| 29 | 07002-12434 | O-RING | 53001- | |
| 30 | 421-22-12632 | COVER | 53001- | |
| 31 | 01010-31235 | BOLT | 53001- | |
| 32 | 01643-31232 | WASHER | 53001- | |
| 33 | 07000-15280 | O-RING | 53001- | |
| 34 | 07041-13612 | PLUG | 53001- | |
| 35 | 07002-13634 | O-RING | 53001- |
