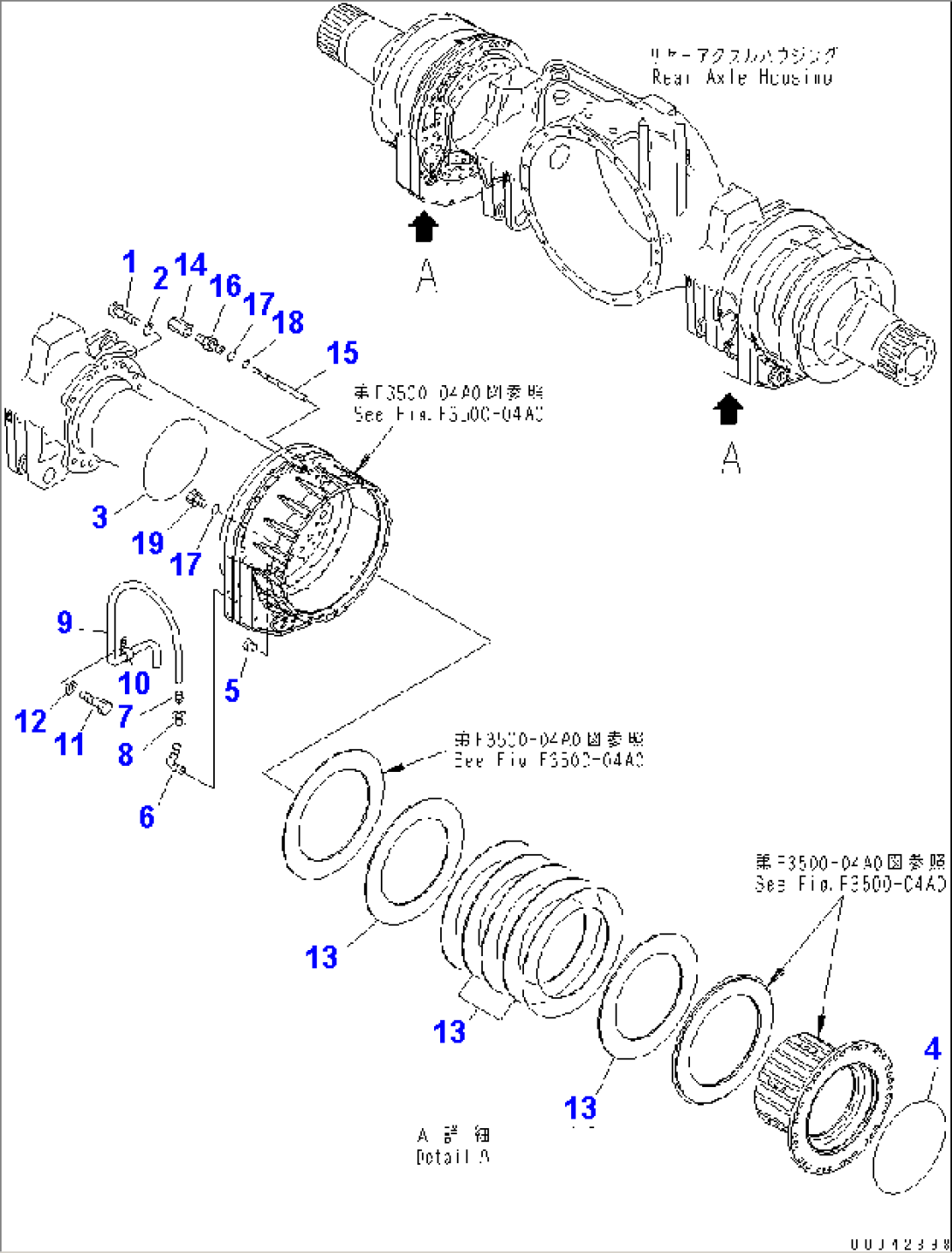

| Item | Part No. | Part Name | Qty | Serial No. |
| (566-22-80202) | REAR AXLE ASS'Y | 11001- | ||
| 566-33-84001 | REAR BRAKE ASS'Y | 11001- | ||
| 1 | 566-33-81111 | CYLINDER | 11001- | |
| 2 | 07000-15500 | O-RING | 11001- | |
| 3 | 421-33-11440 | SEAL | 11001- | |
| 4 | 566-33-41121 | PISTON | 11001- | |
| 5 | 421-33-11430 | SEAL | 11001- | |
| 6 | 566-88-84211 | GEAR | 11001- | |
| 7 | 566-33-81252 | COVER | 11001- | |
| 8 | 566-88-84221 | HUB | 11001- | |
| 9 | 566-09-31161 | SEAL | 11001- | |
| 10 | 07000-15485 | O-RING | 11001- | |
| 11 | 01010-61255 | BOLT | 11001- | |
| 12 | 01643-31232 | WASHER | 11001- | |
| 287-33-00010 | FLOATING SEAL ASS'Y | 11001- | ||
| 13 | \6\ | RING,SEAL | 11001- | |
| 14 | \6\ | O-RING | 11001- | |
| 15 | 566-33-41311 | GEAR | 11001- | |
| 16 | 566-33-74320 | RETAINER | 11001- | |
| 17 | 07000-15380 | O-RING | 11001- | |
| 18 | 04020-01024 | PIN,DOWEL | 11001- | |
| 19 | 566-33-41261 | DAMPER | 11001- | |
| 20 | 566-33-41230 | PLATE | 11001- | |
| 566-33-00010 | FLOATING SEAL ASS'Y | 11001- | ||
| 21 | \6\ | RING,SEAL | 11001- | |
| 22 | \6\ | O-RING | 11001- | |
| 23 | 581-32-12140 | PLUG | 11001- | |
| 24 | 566-32-11430 | BLEEDER | 11001- | |
| 25 | 232-32-11350 | CAP | 11001- | |
| 26 | 07043-70211 | PLUG | 11001- | |
| 27 | 01010-61455 | BOLT | 11001- | |
| 28 | 01643-31445 | WASHER | 11001- | |
| 29 | 07040-11812 | PLUG | 11001- | |
| 30 | 07002-11823 | O-RING | 11001- | |
| 31 | 07040-11007 | PLUG | 11001- | |
| 32 | 07002-11023 | O-RING | 11001- | |
| 33 | 01010-61030 | BOLT | 11001- | |
| 34 | 01643-31032 | WASHER | 11001- | |
| 35 | 561-33-71860 | PLATE | 11001- | |
| 36 | 01010-61230 | BOLT | 11001- | |
| 37 | 01643-31232 | WASHER | 11001- | |
| 38 | 07000-13048 | O-RING | 11001- | |
| 39 | 07000-11009 | O-RING | 11001- |
