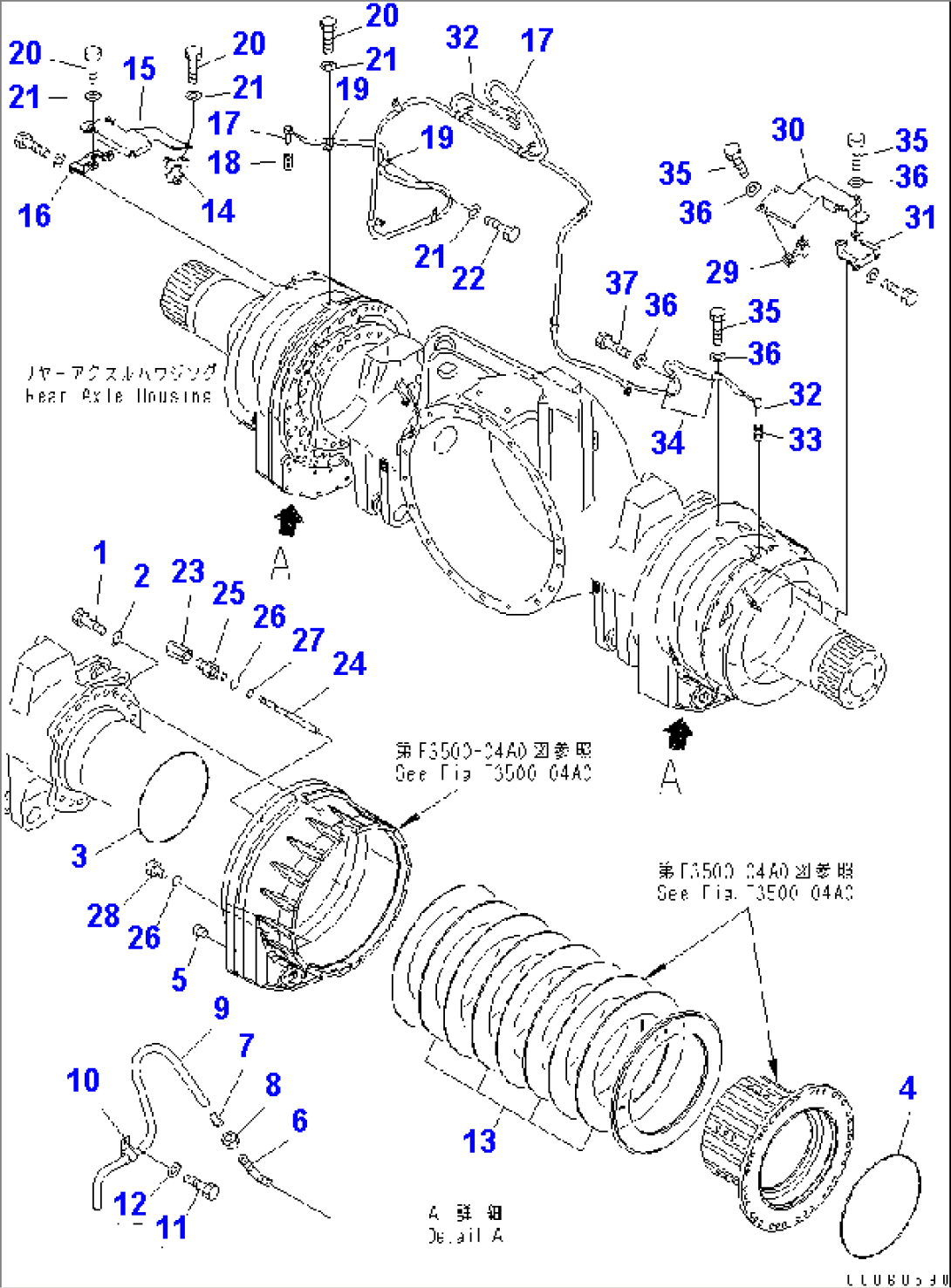

| Item | Part No. | Part Name | Qty | Serial No. |
| (566-22-80202) | REAR AXLE ASS'Y | 7001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F3500-01A0 TO F3500-06A0. | ||||
| (566-33-84001) | REAR BRAKE ASS'Y | 7001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F3500-04A2 TO F3500-05A2. | ||||
| 1 | 01010-62060 | BOLT | 7001- | |
| 2 | 01643-32060 | WASHER | 7001- | |
| 3 | 07000-15305 | O-RING | 7001- | |
| 4 | 07000-15360 | O-RING | 7001- | |
| 5 | 07043-70211 | PLUG | 7001- | |
| 6 | 07834-00413 | ELBOW | 7001- | |
| 7 | 07831-00411 | SLEEVE | 7001- | |
| 8 | 07832-00410 | NUT | 7001- | |
| 9 | 07822-00405 | TUBE | 7001- | |
| 10 | 08036-10610 | CLIP | 7001- | |
| 11 | 01010-80812 | BOLT | 7001- | |
| 12 | 01643-30823 | WASHER | 7001- | |
| 13 | 425-33-11510 | DISC | 7001- | |
| 14 | 566-33-74810 | BRACKET | 7001- | |
| 15 | 566-88-84271 | COVER | 7001- | |
| 16 | 566-88-84261 | BRACKET | 7001- | |
| 17 | 566-88-66141 | SENSOR | 7001- | |
| 18 | 561-88-66152 | COLLAR | 7001- | |
| 19 | 04434-51510 | CLIP | 7001- | |
| 20 | 01010-81020 | BOLT | 7001- | |
| 21 | 01643-31032 | WASHER | 7001- | |
| 22 | 01010-81016 | BOLT | 7001- | |
| 23 | 566-33-81730 | CAP | 7001- | |
| 24 | 566-33-81740 | GAUGE | 7001- | |
| 25 | 566-33-81750 | GUIDE | 7001- | |
| 26 | 07002-11623 | O-RING | 7001- | |
| 27 | 07000-11005 | O-RING | 7001- | |
| 28 | 07040-11612 | PLUG | 7001- | |
| 29 | 566-88-84280 | BRACKET | 7001- | |
| 30 | 566-88-84271 | COVER | 7001- | |
| 31 | 566-88-84261 | BRACKET | 7001- | |
| 32 | 566-88-66141 | SENSOR | 7001- | |
| 33 | 561-88-66152 | COLLAR | 7001- | |
| 34 | 04434-51510 | CLIP | 7001- | |
| 35 | 01010-81020 | BOLT | 7001- | |
| 36 | 01643-31032 | WASHER | 7001- | |
| 37 | 01010-81016 | BOLT | 7001- |
