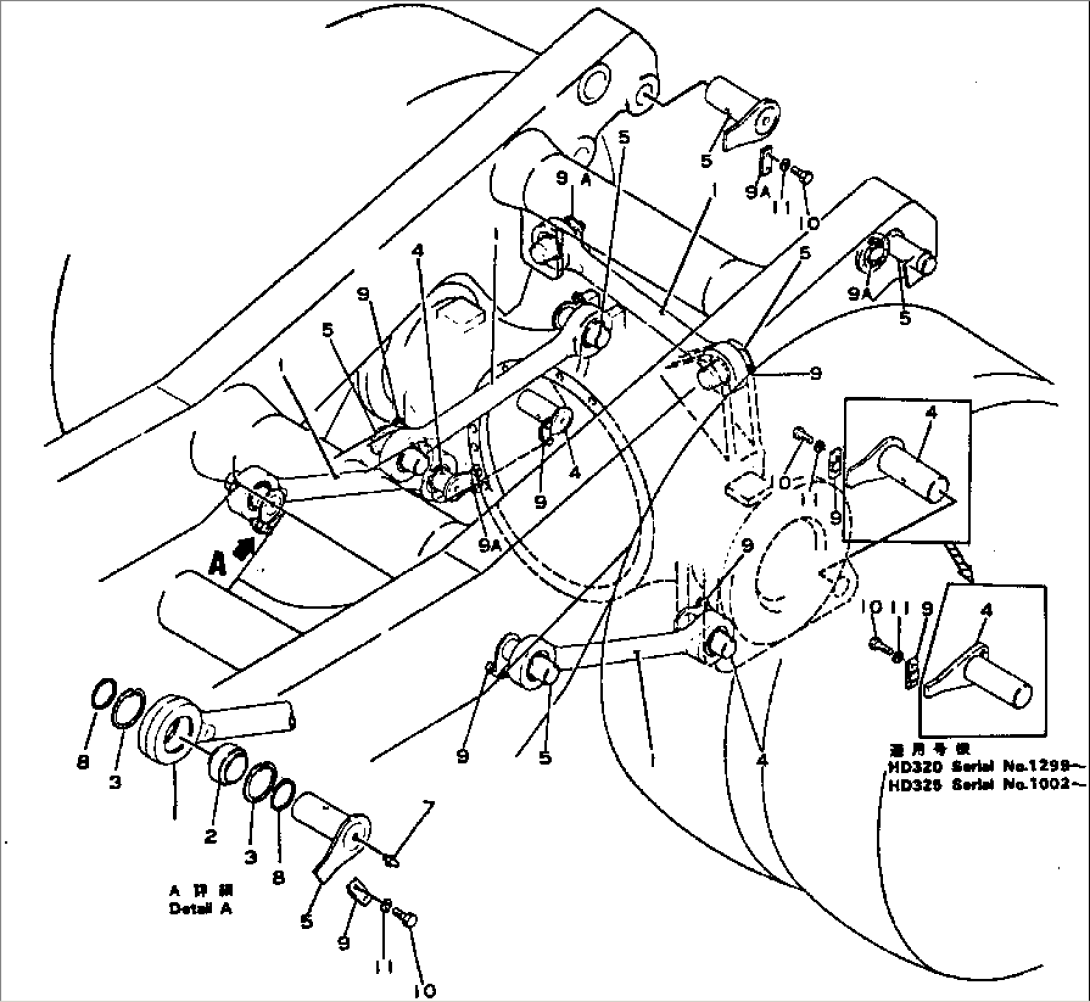

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-52-11170 | ROD | 1005- | |
| 1 | 566-52-11170 | ROD,(FOR LARGE SIZE TIRE) | 1005-1060 | |
| 1 | 566-81-51111 | ROD,(FOR LARGE SIZE TIRE) | 1005-1060 | |
| 2 | 566-50-11461 | BEARING | 1005- | |
| 2 | (\2\566-50-11460) | BEARING | (1005-1193) | |
| 2 | 566-52-41920 | BUSHING,(SERVICE PARTS) | 1005- | |
| 3 | 04065-09030 | RING | 1005- | |
| 3 | 566-52-41940 | BOOT,(SERVICE PARTS) | 1005- | |
| 4 | 566-50-11622 | PIN | 1299- | |
| 4 | \0\566-50-11621 | PIN | 1019-1298 | |
| 5 | 566-52-11141 | PIN | 1019- | |
| 7 | 07020-00000 | FITTING | 1299- | |
| 7 | 07020-00000 | FITTING | 1005-1298 | |
| 8 | 566-52-11120 | SPACER | 1005- | |
| 8 | 566-52-41950 | SPACER,(SERVICE PARTS) | 1005- | |
| 9 | 566-52-11150 | PLATE | 1019-2000 | |
| 9A | 281-70-15290 | PLATE | 2001- | |
| 9A | 281-70-15290 | PLATE | 1019-2000 | |
| 10 | 01010-51425 | BOLT | 2001- | |
| 10 | 01010-51430 | BOLT | 1019-2000 | |
| 11 | 01602-21442 | WASHER | 1019- |
