| Item | Part No. | Part Name | Qty | Serial No. |

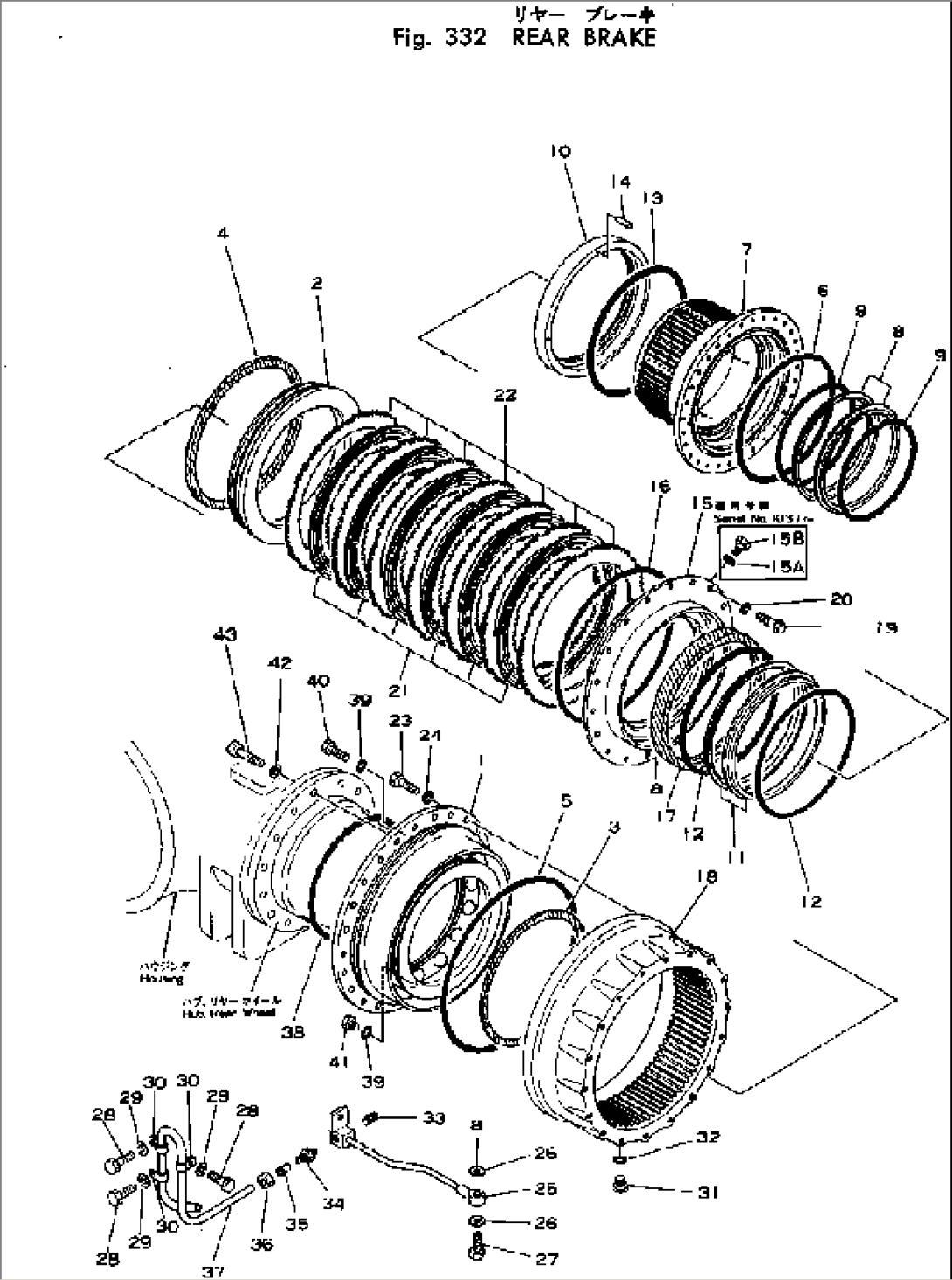

| 569-33-11001 | REAR BRAKE ASS'Y | 1002- | ||
| 1 | 569-33-11110 | CYLINDER | 1002- | |
| 2 | 568-33-11141 | PISTON | 1002- | |
| 3 | 568-33-11520 | PACKING (KIT) | 1002- | |
| 4 | 568-33-11530 | PACKING (KIT) | 1002- | |
| 5 | 568-33-11430 | O-RING (KIT) | 1002- | |
| 6 | 07000-05500 | O-RING (KIT) | 1002- | |
| 7 | 569-33-11312 | GEAR | 1069- | |
| 7 | \0\569-33-11311 | GEAR | 1033-1068 | |
| 7 | \0\569-33-11310 | GEAR | 1002-1032 | |
| 180-27-00011 | FLOATING SEAL ASS'Y | 1002- | ||
| 8 | 180-27-00090 | SEAL RING ASS'Y | 1002- | |
| 8 | \6\ | RING | 1002- | |
| 9 | 180-27-00100 | O-RING ASS'Y | 1002- | |
| 9 | \6\ | O-RING | 1002- | |
| 568-33-00023 | FLOATING SEAL A. | 1002- | ||
| (\2\568-33-00022) | FLOATING SEAL A. | (1037-1046) | ||
| (\2\568-33-00021) | FLOATING SEAL A. | (1002-1036) | ||
| 10 | 568-33-11933 | RETAINER | 1002- | |
| 10 | (\2\568-33-11932) | RETAINER | (1037-1046) | |
| 10 | (\2\568-33-11931) | RETAINER | (1002-1036) | |
| 568-33-00013 | FLOATING SEAL A. | 1047- | ||
| 568-33-00090 | SEAL RING ASS'Y | 1002- | ||
| \6\ | RING,SEAL | 1002- | ||
| 198-27-00120 | O-RING ASS'Y | 1002- | ||
| (\2\568-33-00100) | O-RING ASS'Y | (1002-1046) | ||
| 12 | \6\ | O-RING | 1047- | |
| 12 | \6\ | O-RING | 1002-1046 | |
| 13 | 566-09-31110 | O-RING (KIT) | 1039- | |
| 13 | \0\568-33-11410 | O-RING (KIT) | 1002-1038 | |
| 14 | 04020-01024 | PIN | 1037- | |
| 14 | 04020-01024 | PIN | 1002-1036 | |
| 15 | 568-33-11923 | HUB | 1002- | |
| 15 | (\2\568-33-11922) | HUB | (1037-1046) | |
| 15 | (\2\568-33-11921) | HUB | (1002-1036) | |
| 15A | 07005-01012 | GASKET | 1037- | |
| 15B | 07040-11007 | PLUG | 1037- | |
| 16 | 568-33-11430 | O-RING (KIT) | 1002- | |
| 17 | 568-33-11510 | SEAL (KIT) | 1002- | |
| 18 | 569-33-11210 | GEAR | 1002- | |
| 19 | 01010-51445 | BOLT | 1002- | |
| 20 | 01602-21442 | WASHER | 1002- | |
| 21 | 568-33-11334 | DISC | 1002- | |
| 22 | 568-33-11231 | PLATE | 1002- | |
| 23 | 01010-81850 | BOLT | 1002- | |
| 24 | 01602-21854 | WASHER | 1002- | |
| 25 | 569-33-11621 | TUBE | 1002- | |
| 26 | 07005-01012 | GASKET (KIT) | 1002- | |
| 27 | 07206-10610 | BOLT | 1002- | |
| 28 | 01010-50816 | BOLT | 1002- | |
| 29 | 01602-00825 | WASHER | 1002- | |
| 30 | 04434-00608 | CLIP | 1002- | |
| 31 | 568-33-11260 | PLUG | 1002- | |
| 32 | 07002-01823 | O-RING (KIT) | 1002- | |
| 33 | 07042-20108 | PLUG | 1002- | |
| 34 | 07836-00410 | CONNECTOR | 1002- | |
| 35 | 07831-00411 | SLEEVE | 1002- | |
| 36 | 07832-00410 | NUT | 1002- | |
| 37 | 07822-00408 | TUBE | 1002- | |
| 38 | 07000-05390 | O-RING (KIT) | 1002- | |
| 39 | 07002-01223 | O-RING (KIT) | 1002- | |
| 40 | 07060-01230 | BOLT | 1002- | |
| 41 | 07040-11209 | PLUG | 1002- | |
| 42 | 01602-22060 | WASHER | 1002- | |
| 43 | 01010-82065 | BOLT | 1002- |
