| Item | Part No. | Part Name | Qty | Serial No. |

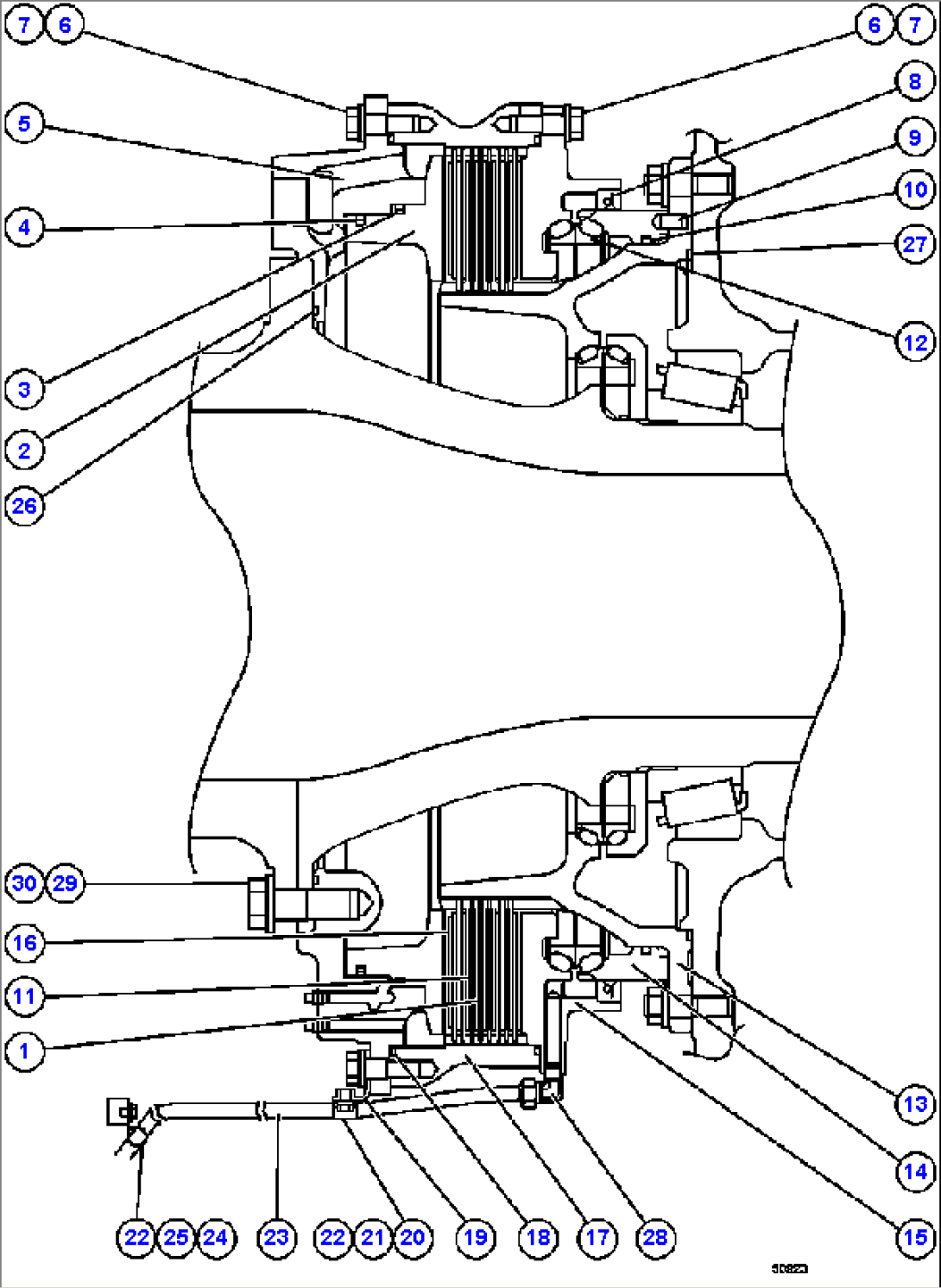

| 0 | 562-33-31001 | REAR BRAKE ASSEMBLY | ||
| 1 | 562-33-21231 | PLATE | ||
| 2 | 562-33-31120 | PISTON | ||
| 3 | 562-33-31941 | SEAL | ||
| 4 | 562-33-31951 | SEAL | ||
| 5 | 562-33-31110 | CYLINDER | ||
| 6 | 01643-32060 | FLAT WASHER - M20 | ||
| 7 | 01010-62065 | CAPSCREW - M20 | ||
| 8 | 562-33-11941 | SEAL | ||
| 9 | 04020-01434 | PIN, DOWEL | ||
| 10 | 562-33-31920 | O-RING | ||
| 11 | 562-33-33240 | DISC | ||
| 12 | 562-33-00013 | SEAL ASSEMBLY | ||
| 13 | 562-33-31310 | GEAR | ||
| 14 | 562-33-31320 | RETAINER | ||
| 15 | 562-33-31220 | HUB | ||
| 16 | 562-33-21262 | DAMPER | ||
| 17 | 562-33-31210 | GEAR | ||
| 18 | 562-33-11930 | O-RING | ||
| 19 | 561-33-62690 | BRACKET | ||
| 20 | 01643-51032 | FLAT WASHER - M10 | ||
| 21 | 01010-81016 | CAPSCREW - M10 X 1.50 X 16 | ||
| 22 | 08036-01814 | CLIP | ||
| 23 | 566-35-13830 | TUBE | ||
| 24 | 01643-30823 | FLAT WASHER - M8 | ||
| 25 | 01010-80812 | CAPSCREW - M8 | ||
| 26 | 281-09-11110 | O-RING | ||
| 27 | 561-22-31970 | O-RING | ||
| 28 | 285-35-11820 | ELBOW | ||
| 29 | 01010-63095 | CAPSCREW - M30 | ||
| 30 | 01643-33080 | FLAT WASHER - M30 | ||
| NS|32 | NOTE: NS = NOT SHOWN | |||
| NS|33 | 562-99-3A120 | FIXTURE, BRAKE CLAMP | ||
| NS|34 | (QUANTITIES SHOWN ARE FOR ONE SIDE ONLY.) |
