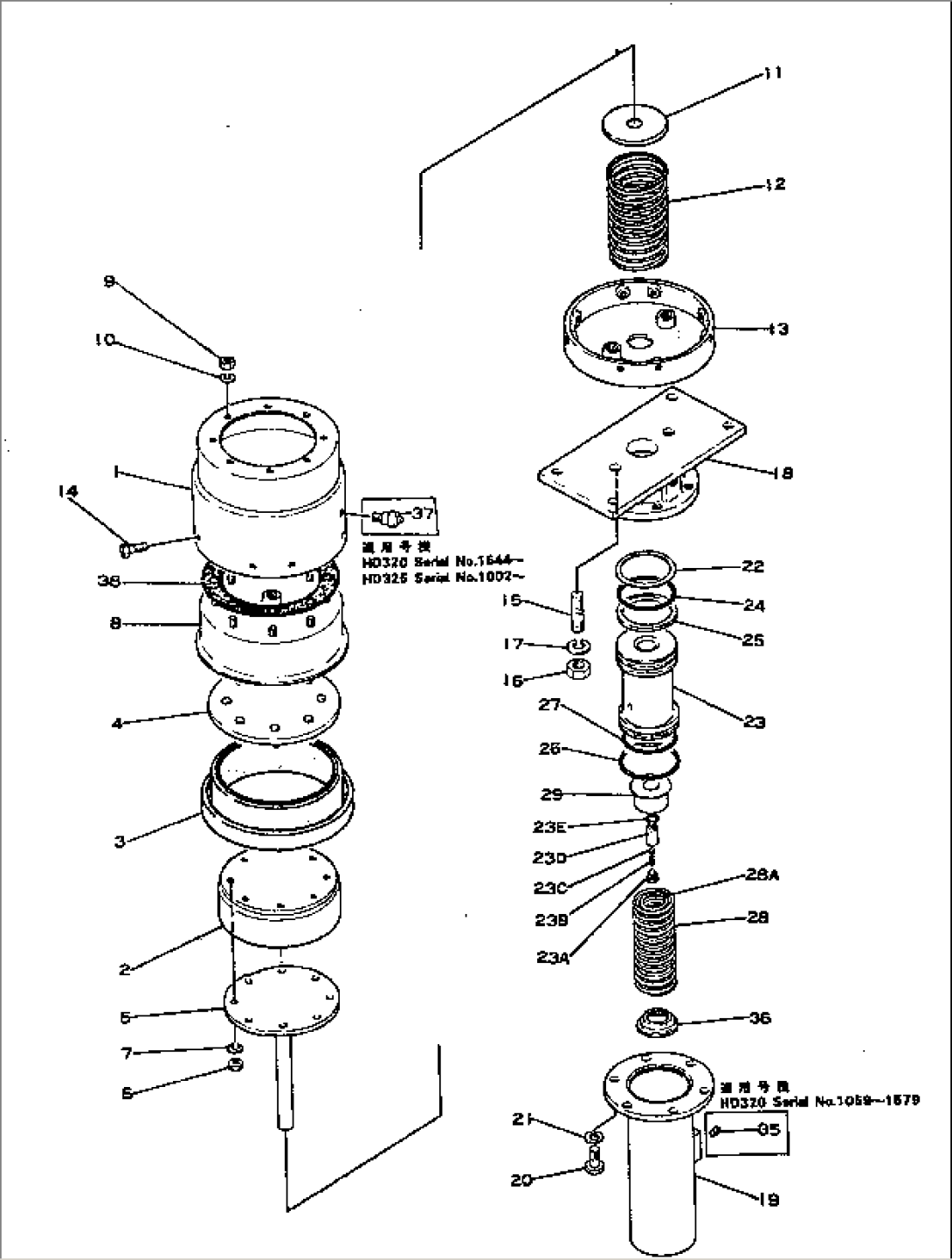

| Item | Part No. | Part Name | Qty | Serial No. |
| 566-35-11306 | BRAKE CHAMBER ASS'Y | 1002- | ||
| \0\566-35-11305 | BRAKE CHAMBER ASS'Y | 1000-1000 | ||
| (\2\566-35-11304) | BRAKE CHAMBER ASS'Y | (1000-1000) | ||
| (\2\566-35-11303) | BRAKE CHAMBER ASS'Y | (1000-1000) | ||
| (\2\566-35-11302) | BRAKE CHAMBER ASS'Y | (1000-1000) | ||
| 1 | 566-35-16511 | BODY | 1002- | |
| 1 | \0\566-35-16510 | BODY | 1000-1000 | |
| 2 | 566-35-16570 | GUIDE | 1002- | |
| 3 | 281-34-11112 | DIAPHRAGM (KIT) | 1002- | |
| 3 | (\2\281-34-11111) | DIAPHRAGM | (1000-1000) | |
| 3 | (\2\566-35-16520) | DIAPHRAGM | (1000-1000) | |
| 4 | 566-35-16560 | CLAMP | 1002- | |
| 5 | 566-35-17151 | ROD | 1002- | |
| 6 | 566-35-16590 | NUT | 1002- | |
| 7 | 566-35-16610 | WASHER | 1002- | |
| 8 | 566-35-16530 | CLAMP | 1002- | |
| 9 | 566-35-16540 | NUT | 1002- | |
| 10 | 566-35-16550 | WASHER | 1002- | |
| 11 | 566-35-16651 | GUIDE | 1002- | |
| 11 | \0\566-35-16650 | GUIDE | 1000-1000 | |
| 12 | 566-35-16661 | SPRING | 1002- | |
| 12 | \0\566-35-16660 | SPRING | 1000-1000 | |
| 13 | 566-35-17242 | COVER | 1002- | |
| 13 | \0\566-35-17241 | COVER | 1000-1000 | |
| 14 | 566-35-16680 | BOLT AND WASHER | 1002- | |
| 15 | 566-35-17260 | STUD | 1002- | |
| 16 | 566-35-16930 | NUT | 1002- | |
| 17 | 566-35-16920 | WASHER | 1002- | |
| 18 | 566-35-17341 | FLANGE | 1002- | |
| 19 | 566-35-17291 | CYLINDER | 1002- | |
| 20 | 566-35-17461 | BOLT | 1002- | |
| 21 | 566-35-17471 | WASHER | 1002- | |
| 22 | 566-35-17560 | RING | 1002- | |
| 566-35-17302 | PISTON ASS'Y | 1002- | ||
| \3\566-35-17301 | PISTON ASS'Y | 1000-1000 | ||
| (566-35-17302,566-35-17541, | ||||
| 566-35-17551,566-35-17580, | ||||
| 566-35-17590) | ||||
| 23 | 566-35-17312 | PISTON | 1002- | |
| 23 | 566-35-17311 | PISTON | 1000-1000 | |
| 23A | 566-35-17640 | CAP | 1002- | |
| 23B | 566-35-17630 | SPRING | 1002- | |
| 23C | 566-35-17620 | BALL | 1002- | |
| 23D | 566-35-17610 | CASE | 1002- | |
| 23E | 566-35-17650 | GASKET | 1002- | |
| 24 | 566-35-17320 | O-RING (KIT) | 1002- | |
| 25 | 566-35-17520 | SEAL (KIT) | 1002- | |
| 26 | 566-35-17480 | SEAL (KIT) | 1002- | |
| 27 | 566-35-17490 | O-RING (KIT) | 1002- | |
| 28 | 566-35-17551 | SPRING | 1002- | |
| 28 | 566-35-17550 | SPRING | 1000-1000 | |
| 28A | 566-35-17580 | SPRING | 1002- | |
| 29 | 566-35-17541 | SPACER | 1002- | |
| 29 | 566-35-17540 | SPACER | 1000-1000 | |
| 35 | 566-35-17530 | PLUG | 1000-1000 | |
| 36 | 566-35-17590 | GUIDE | 1002- | |
| 37 | 566-35-17670 | BREATHER | 1002- | |
| 38 | 566-35-17660 | SEAL | 1002- |
