| Item | Part No. | Part Name | Qty | Serial No. |

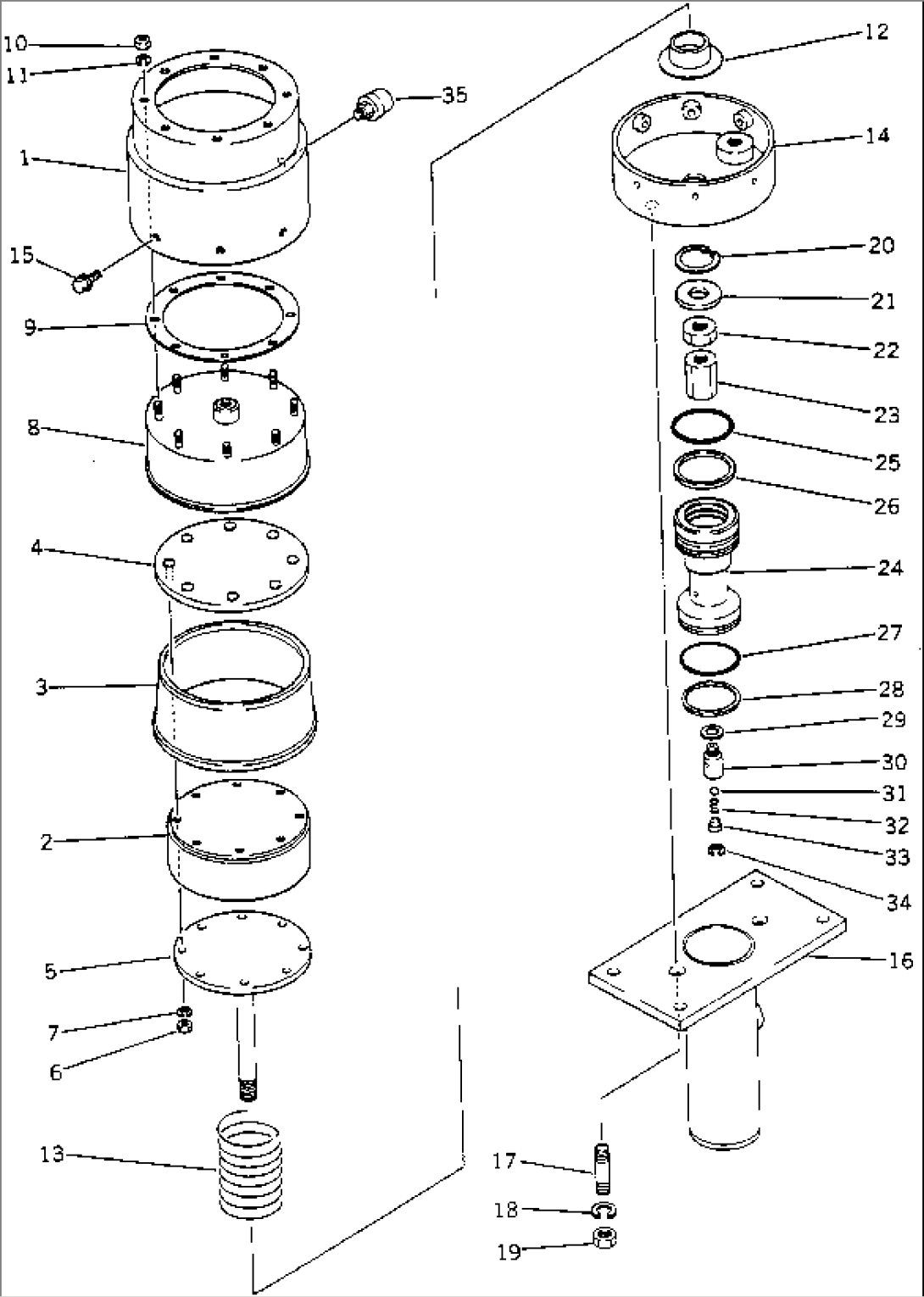

| 566-35-43100 | BRAKE CHAMBER ASS'Y | 1501- | ||
| 1 | 566-35-16511 | BODY | 1501- | |
| 2 | 566-35-16570 | GUIDE | 1501- | |
| 3 | 281-34-11112 | DIAPHRAGM (KIT) | 1501- | |
| 4 | 566-35-43120 | CLAMP | 1501- | |
| 5 | 566-35-43130 | ROD | 1501- | |
| 6 | 566-35-16590 | NUT | 1501- | |
| 7 | 566-35-16610 | WASHER | 1501- | |
| 8 | 566-35-43140 | CLAMP | 1501- | |
| 9 | 566-35-17660 | SEAL | 1501- | |
| 10 | 566-35-16540 | NUT | 1501- | |
| 11 | 566-35-16550 | WASHER | 1501- | |
| 12 | 566-35-16651 | GUIDE | 1501- | |
| 13 | 566-35-43150 | SPRING | 1501- | |
| 14 | 566-35-43160 | COVER | 1501- | |
| 15 | 566-35-16680 | BOLT AND WASHER | 1501- | |
| 16 | 566-35-43310 | CYLINDER | 1501- | |
| 17 | 566-35-17260 | STUD | 1501- | |
| 18 | 566-35-16920 | WASHER | 1501- | |
| 19 | 566-35-16930 | NUT | 1501- | |
| 20 | 566-35-43290 | RING | 1501- | |
| 21 | 566-35-43210 | PLATE | 1501- | |
| 22 | 566-35-43190 | NUT | 1501- | |
| 23 | 566-35-43180 | NUT | 1501- | |
| 24 | 566-35-43220 | PISTON | 1501- | |
| 25 | 566-35-43260 | O-RING (KIT) | 1501- | |
| 26 | 566-35-43320 | SEAL (KIT) | 1501- | |
| 27 | 566-35-43270 | O-RING (KIT) | 1501- | |
| 28 | 566-35-43280 | SEAL (KIT) | 1501- | |
| 29 | 566-35-17650 | GASKET | 1501- | |
| 30 | 566-35-43230 | CASE | 1501- | |
| 31 | 566-35-17620 | BALL | 1501- | |
| 32 | 566-35-17630 | SPRING | 1501- | |
| 33 | 566-35-43240 | STOPPER | 1501- | |
| 34 | 566-35-43250 | RING | 1501- | |
| 35 | 566-35-43170 | BREATHER | 1501- |
